SV03010108
safety valve 2" m x 2" fm SV03 neutral liquid media, gunmetal EPDM
Delivery time: 3 - 5 working days
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

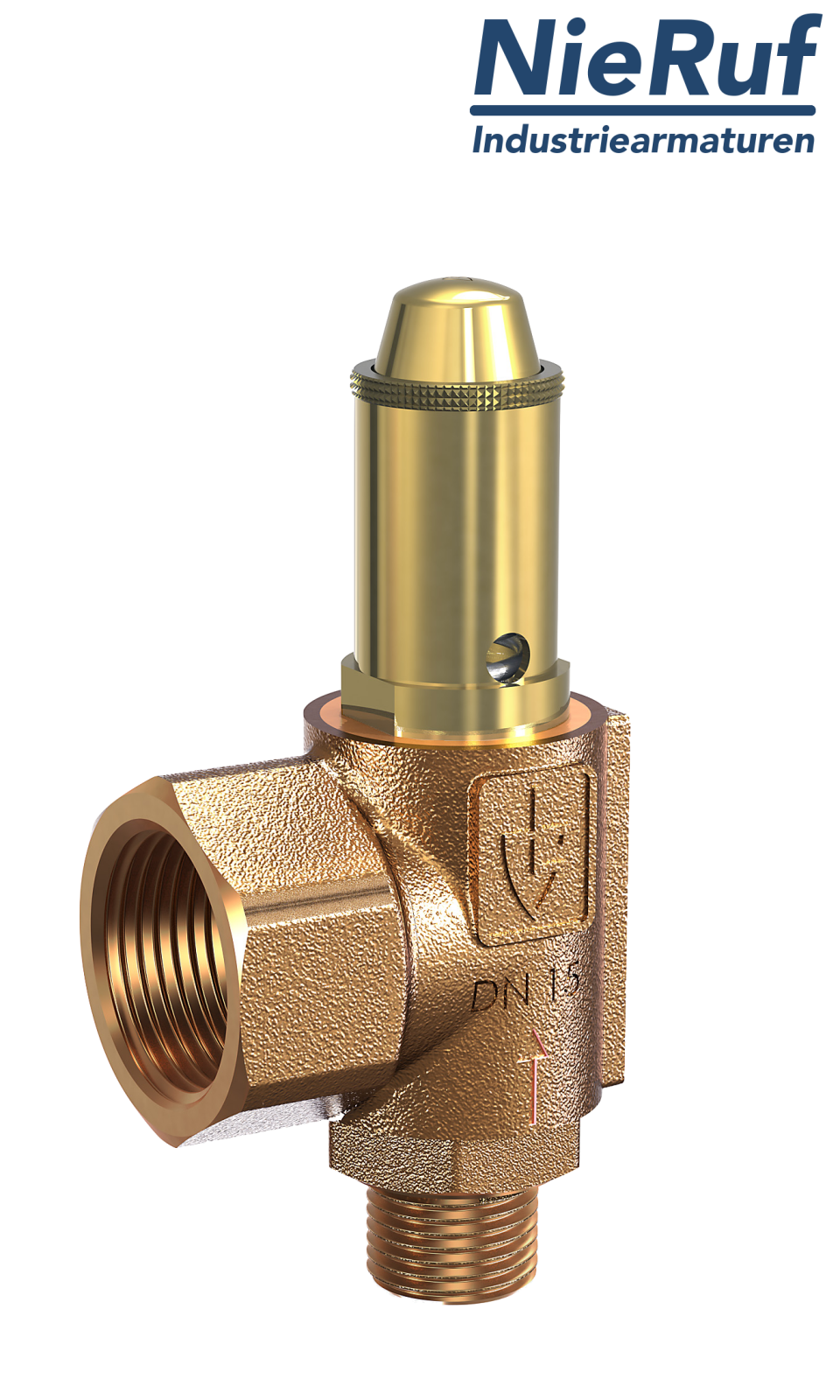

safety-valve male thread 2" m x 2" fm gunmetal EPDM Typ SV03 for neutral liquid media with twist-type lifting mechanism without bellows
| product: | safety valve |
|---|---|
| type: | SV03 |
| manufacturer: | NieRuf |
| diameter: | 2" m x 2" fm |
| d0: | 30,3 mm |
| connection: | male screw threaded BSP-P |
| seal: | EPDM |
| media: | neutral liquid media |
| temperature: | -40°C to +170°C |
| set pressure: | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design: | angle-type |
| material: | gunmetal |
| lifting: | twist-type lifting mechanism |
| type test approval: | TÜV = F 666 / EG = L |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level: | SIL 3 |
| product feature 1: | without bellows |
| product feature 2: | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 2" m x 2" fm SV03 neutral liquid media, gunmetal EPDM
Article no.
: SV03010108
product:
safety valve
type:
SV03
manufacturer:
NieRuf
diameter:
2" m x 2" fm
d0:
30,3 mm
connection:
male screw threaded BSP-P
seal:
EPDM
media:
neutral liquid media
temperature:
-40°C to +170°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
gunmetal
lifting:
twist-type lifting mechanism
type test approval:
TÜV = F 666 / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
€23.21 VAT included.
€17.37 VAT included.
€55.22 VAT included.
€29.99 VAT included.
