SV06010204
safety valve 3/4" m x 1 1/4" fm SV06 liquid media, stainless steel FKM
Delivery time: 3 - 5 working days
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

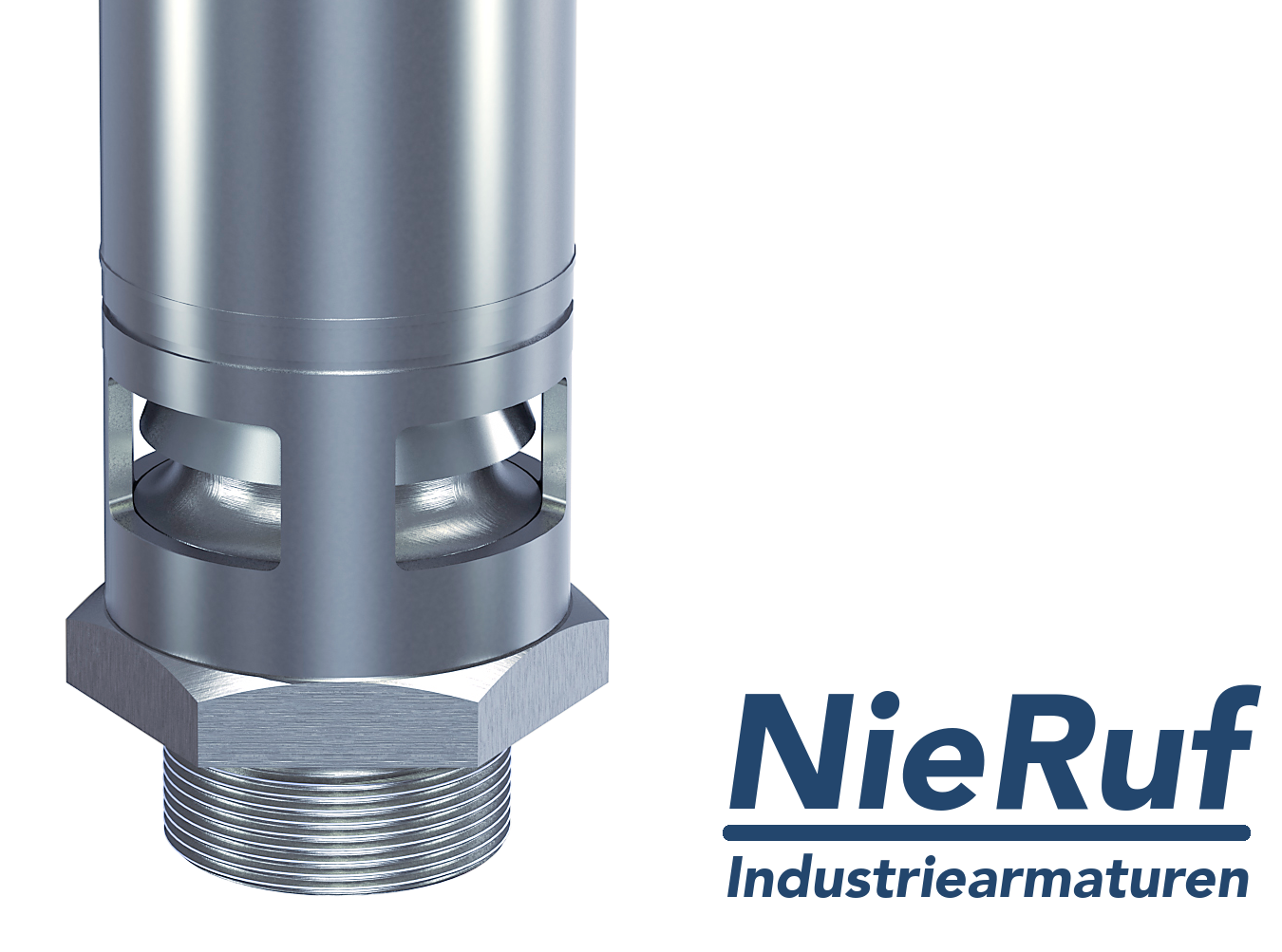

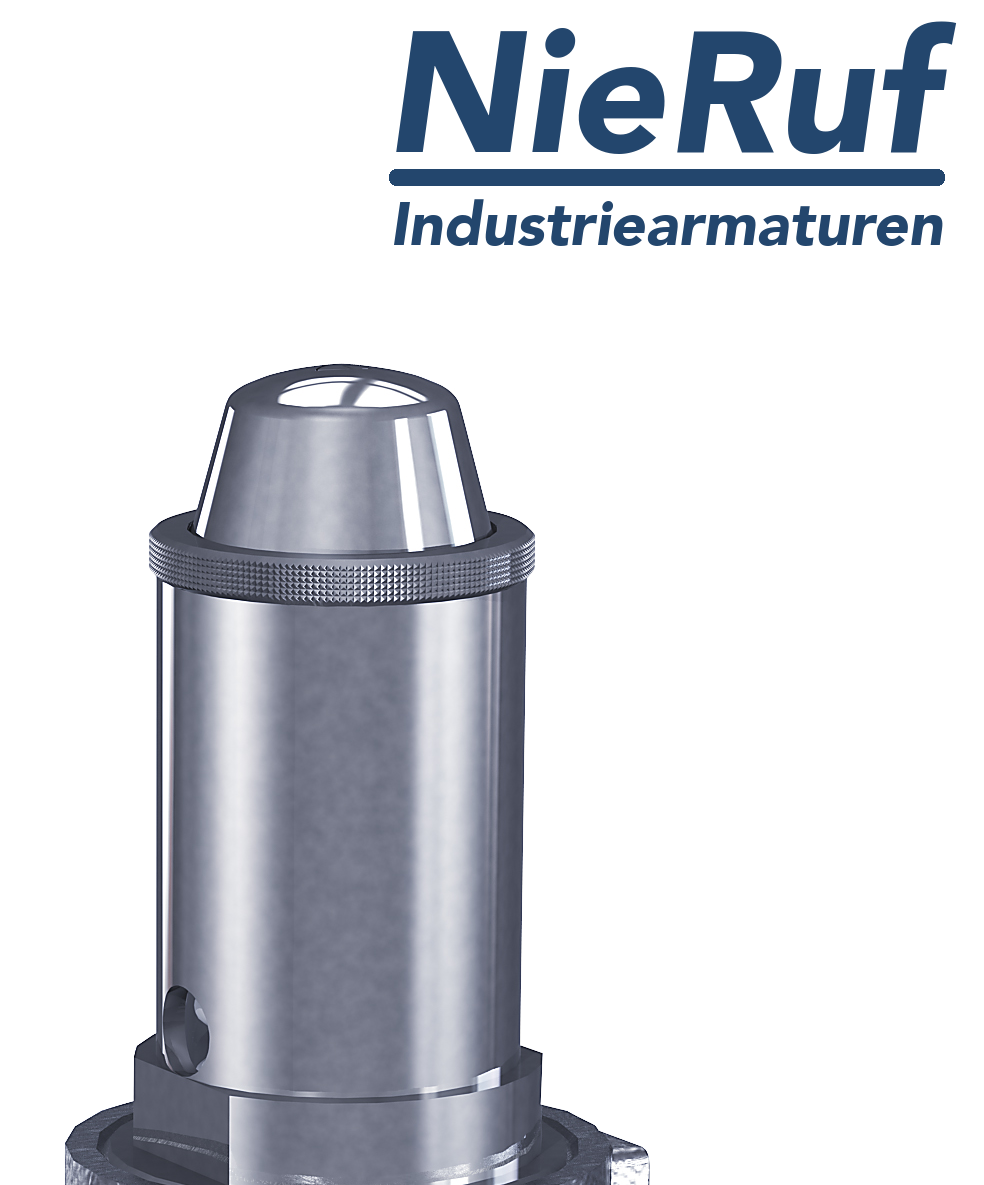

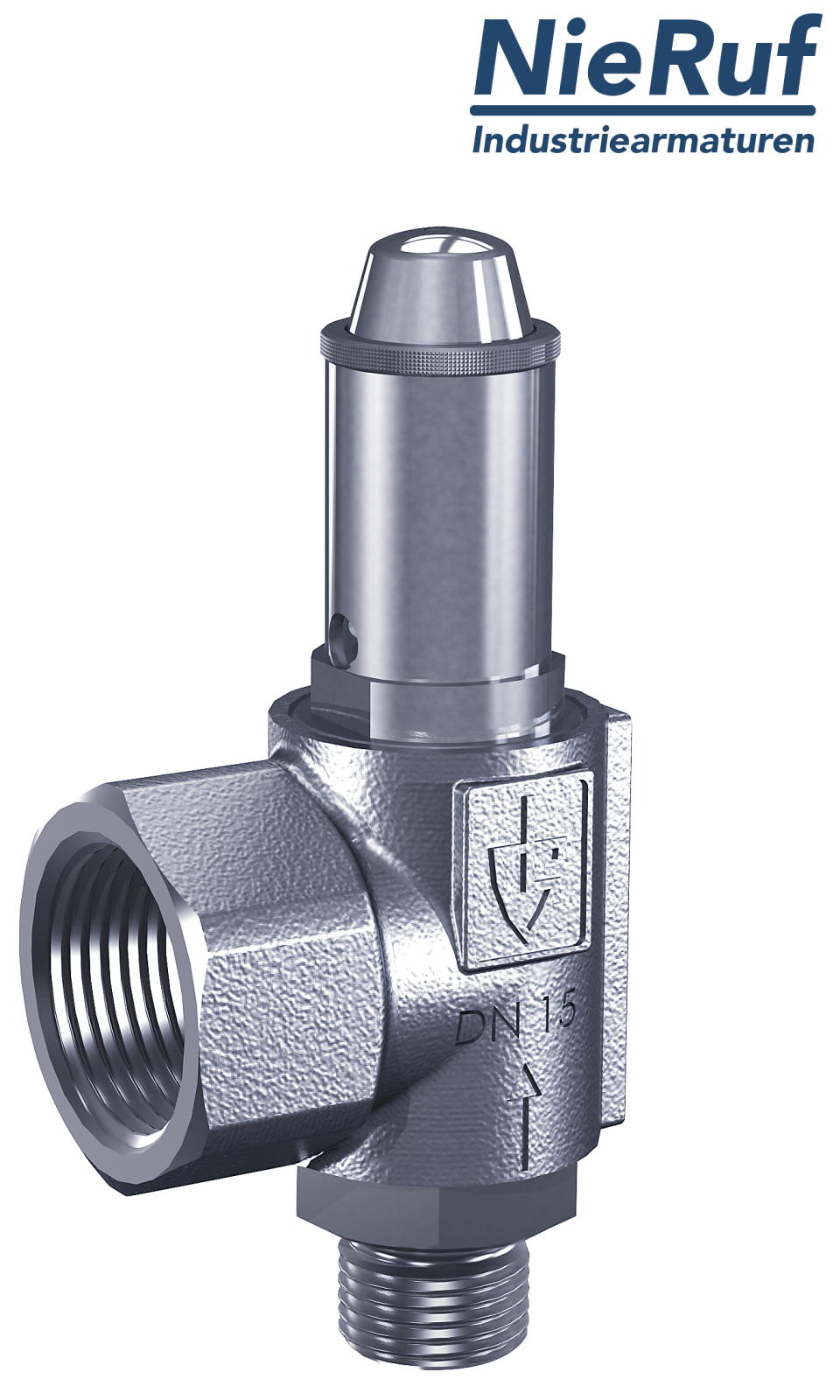

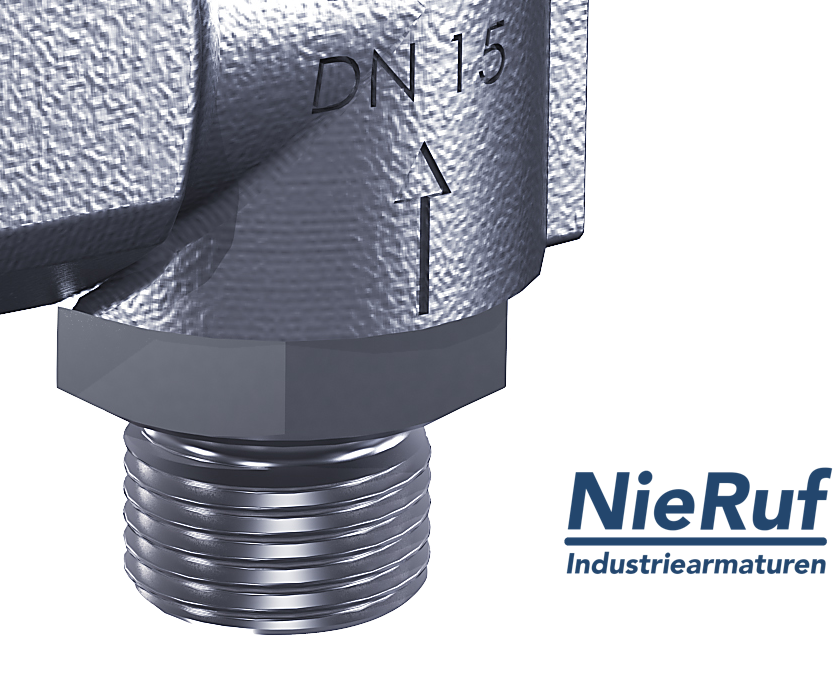

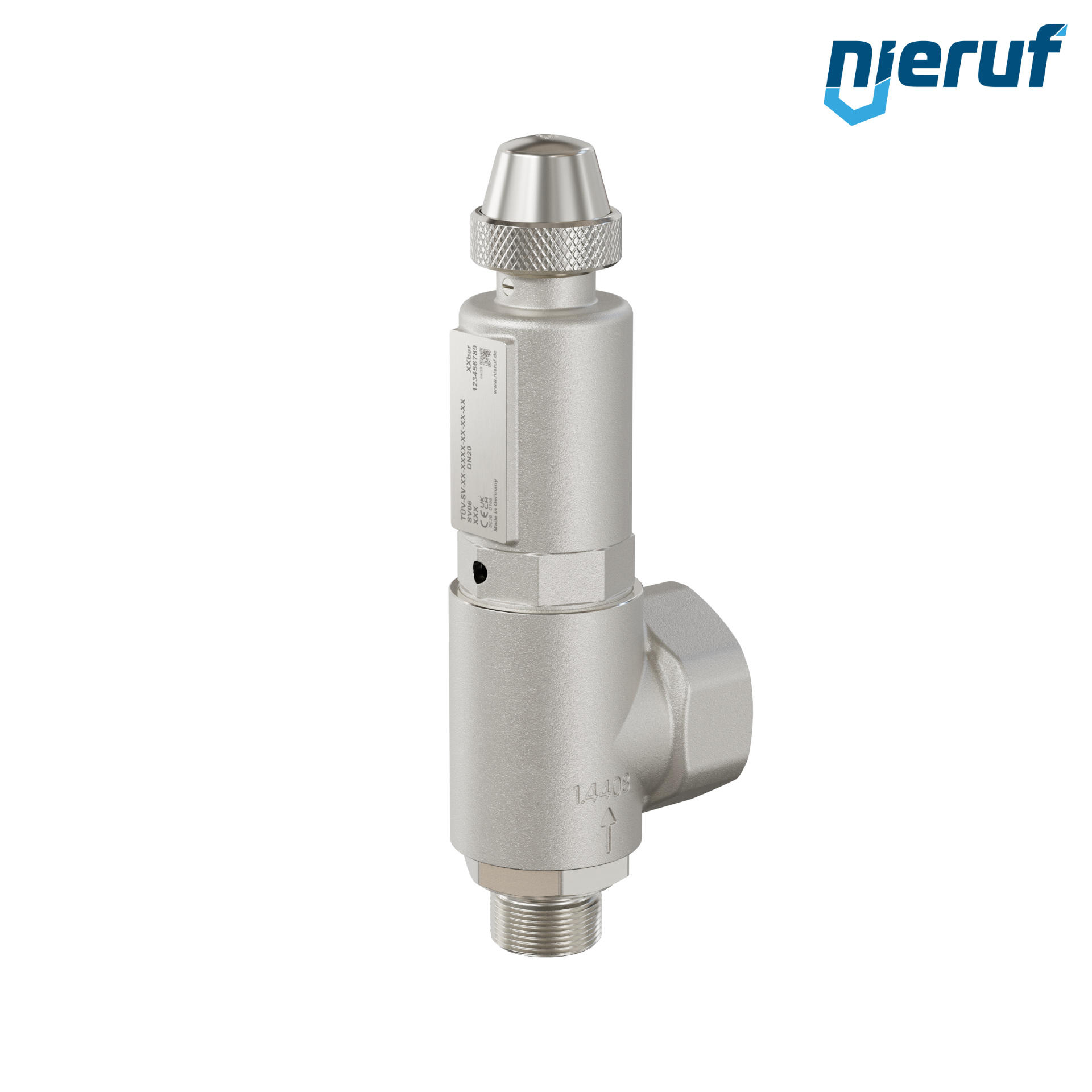

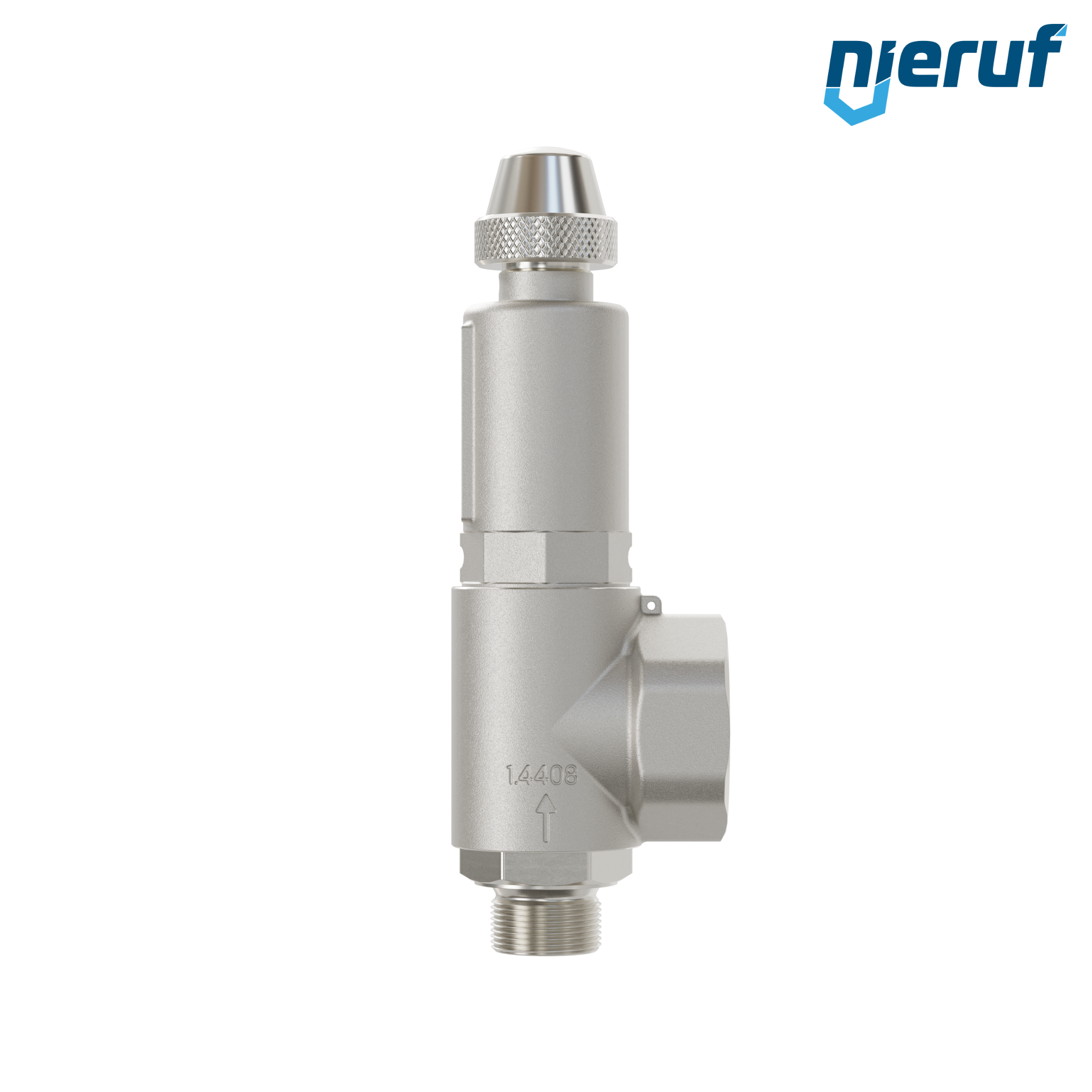

angle-type-safety valve with with bellows for liquid media stainless steel 3/4" m x 1 1/4" fm Typ SV06 with male screw threaded BSP-P FKM-seal and twist-type lifting mechanism
| product: | safety valve |
|---|---|
| type: | SV06 |
| manufacturer: | NieRuf |
| diameter: | 3/4" m x 1 1/4" fm |
| d0: | 18,0 mm |
| connection: | male screw threaded BSP-P |
| seal: | FKM |
| media: | liquid media |
| temperature: | -20°C up to +200°C |
| set pressure: | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design: | angle-type |
| material: | stainless steel |
| lifting: | twist-type lifting mechanism |
| type test approval: | TUV = F / EG = L |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level: | SIL 3 |
| product feature 1: | with bellows |
| product feature 2: | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 3/4" m x 1 1/4" fm SV06 liquid media, stainless steel FKM
Article no.
: SV06010204
product:
safety valve
type:
SV06
manufacturer:
NieRuf
diameter:
3/4" m x 1 1/4" fm
d0:
18,0 mm
connection:
male screw threaded BSP-P
seal:
FKM
media:
liquid media
temperature:
-20°C up to +200°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel
lifting:
twist-type lifting mechanism
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
