SV13010204
safety valve 3/4" m NPT x 3/4" fm SV13, stainless steel FKM, without lever
Delivery time: 3 - 5 working days
Certificates
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

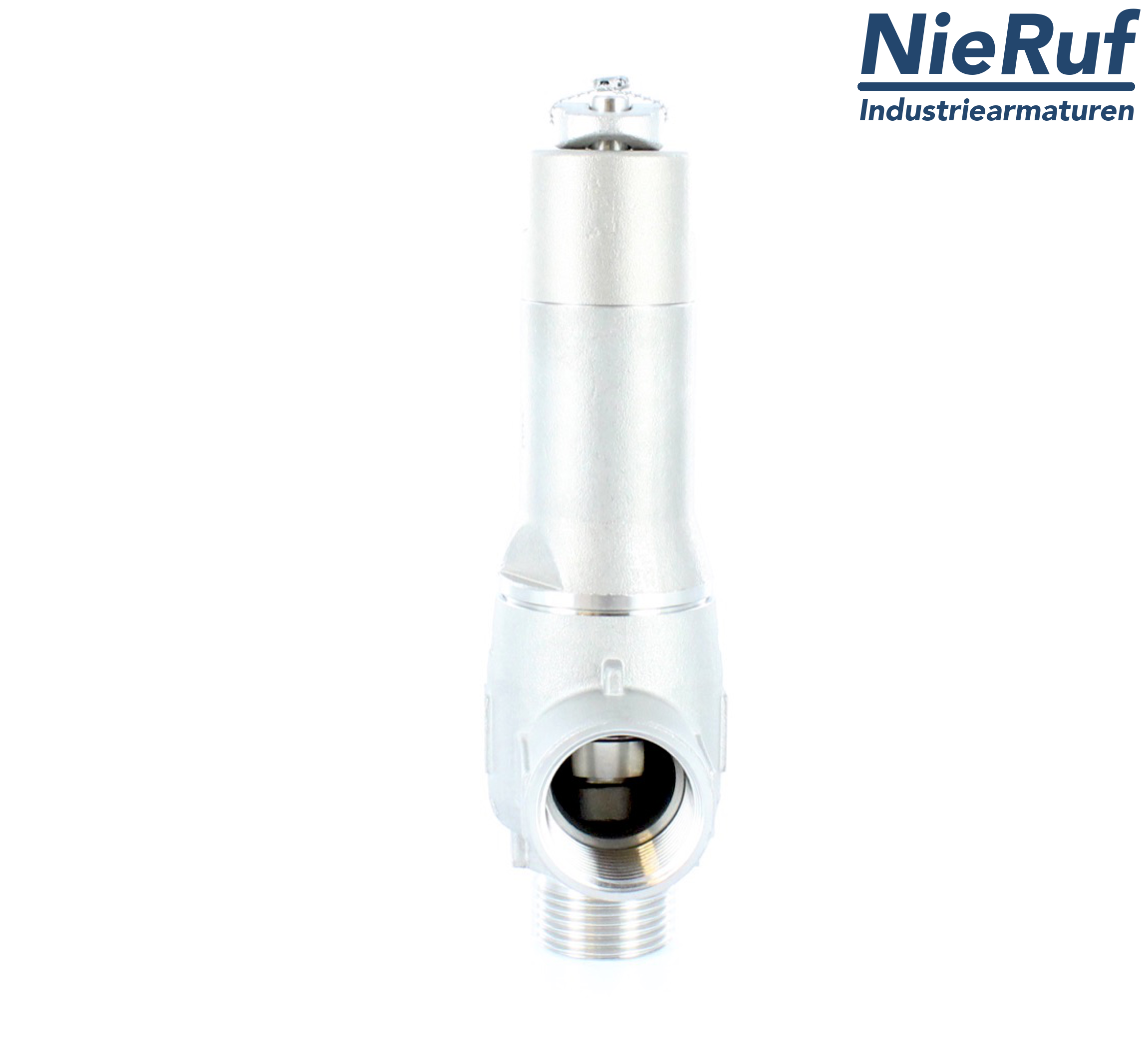

safety valve 3/4" m NPT x 3/4" fm SV13 for liquid and gaseous media made of stainless steel seal FKM pressure 0,2 - 25,0 bar without lever
product: | safety valve |
---|---|
type: | SV13 |
manufacturer: | NieRuf |
diameter: | 3/4" m NPT x 3/4" fm |
d0: | 15,0 mm |
connection: | male screw threaded NPT |
seal: | FKM |
media: | liquid and gaseous media |
temperature: | - 20°C up to + 200°C |
set pressure: | 0,2 - 25,0 bar |
design: | angle-type |
material: | stainless steel |
lifting: | without lever |
type test approval: | TÜV-SV-2067 D/G/F |
requirements: | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
installation position: | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
SIL - safety integrity level: | SIL 3 |
product feature 1: | without bellows |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 3/4" m NPT x 3/4" fm SV13, stainless steel FKM, without lever
Article no.
: SV13010204
product:
safety valve
type:
SV13
manufacturer:
NieRuf
diameter:
3/4" m NPT x 3/4" fm
d0:
15,0 mm
connection:
male screw threaded NPT
seal:
FKM
media:
liquid and gaseous media
temperature:
- 20°C up to + 200°C
set pressure:
0,2 - 25,0 bar
design:
angle-type
material:
stainless steel
lifting:
without lever
type test approval:
TÜV-SV-2067 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
