SF06100007

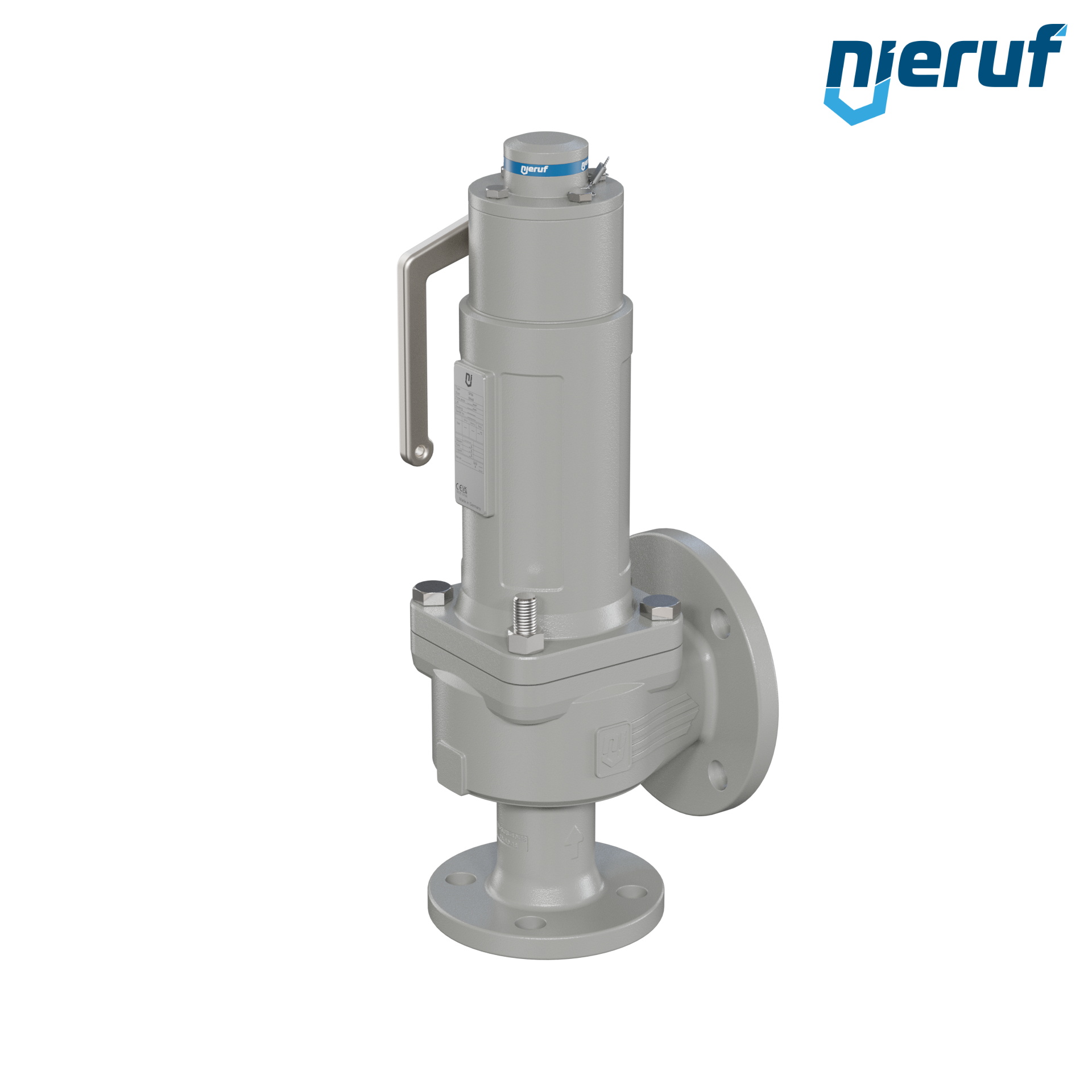

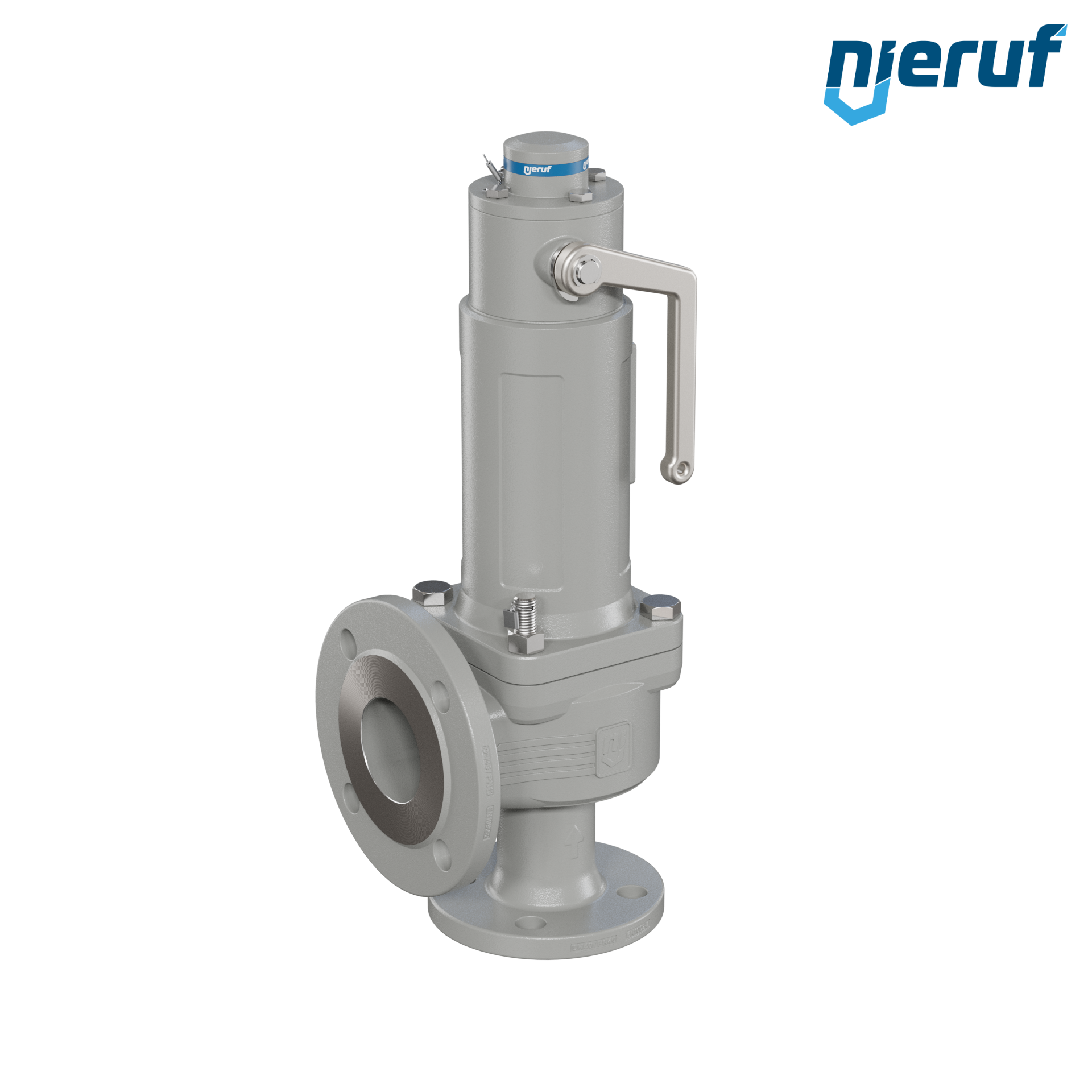

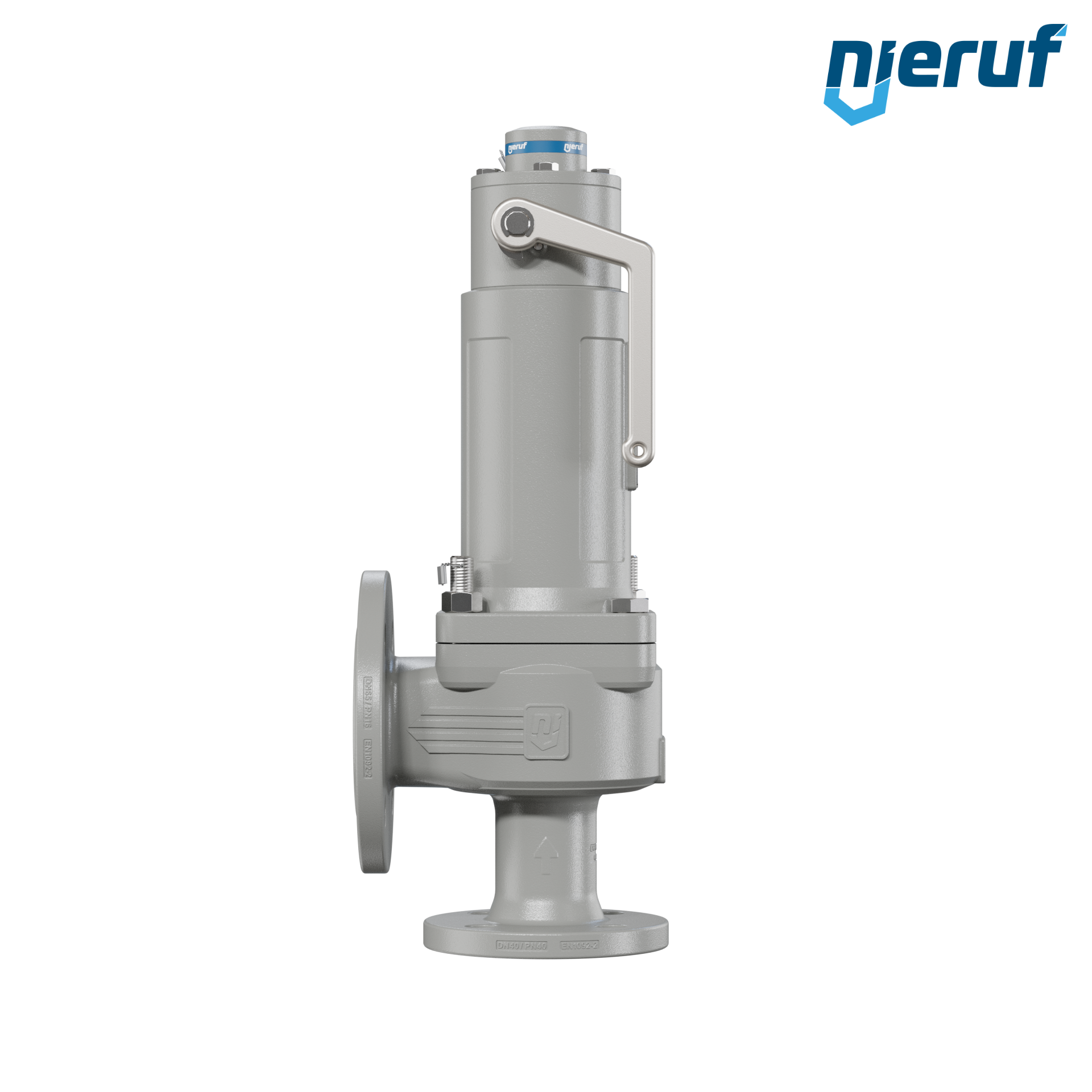

flange-safety valve DN40/DN65 SF06, gastight bonnet metal, with lifting device lever
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
€8.09 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
flange-safety valve DN40/DN65 SF06 for liquid and gaseous media made of Spheriodal graphite cast iron 5.1303 seal metal set pressure 0,2 - 40,0 bar with lifting device lever
| product: | flange-safety valve |
|---|---|
| type: | SF06 |
| manufacturer: | NieRuf |
| diameter: | DN40/DN65 |
| d0: | 36,0 mm |
| connection: | flange acc. to DIN EN 1092-2 | Input PN40 output PN16 |
| seal: | metal |
| media: | liquid and gaseous media |
| temperature: | -10°C up to +350°C |
| set pressure: | 0,2 - 40,0 bar |
| design: | gastight bonnet |
| material: | Spheriodal graphite cast iron 5.1303 |
| lifting: | with lifting device lever |
| type test approval: | TUV-SV-2094-D/G/F |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| SIL - safety integrity level: | SIL 3 |
| product feature 1: | full lift as D/G | normal lift as valve for liuids |
| product feature 2: | gastight cap, the environment is protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN40/DN65 SF06, gastight bonnet metal, with lifting device lever
Article no.
: SF06100007
product:
flange-safety valve
type:
SF06
manufacturer:
NieRuf
diameter:
DN40/DN65
d0:
36,0 mm
connection:
flange acc. to DIN EN 1092-2 | Input PN40 output PN16
seal:
metal
media:
liquid and gaseous media
temperature:
-10°C up to +350°C
set pressure:
0,2 - 40,0 bar
design:
gastight bonnet
material:
Spheriodal graphite cast iron 5.1303
lifting:
with lifting device lever
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3
product feature 1:
full lift as D/G | normal lift as valve for liuids
product feature 2:
gastight cap, the environment is protected from being affected by the medium.
