SV15022101.3
safety-valve DN6 1/4" m x 1/2" fm NPT, SV15, MD/ PEEK, without lifting device, angle-type, >500,0 - 1100,0 bar
Delivery time: 3 - 5 working days
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

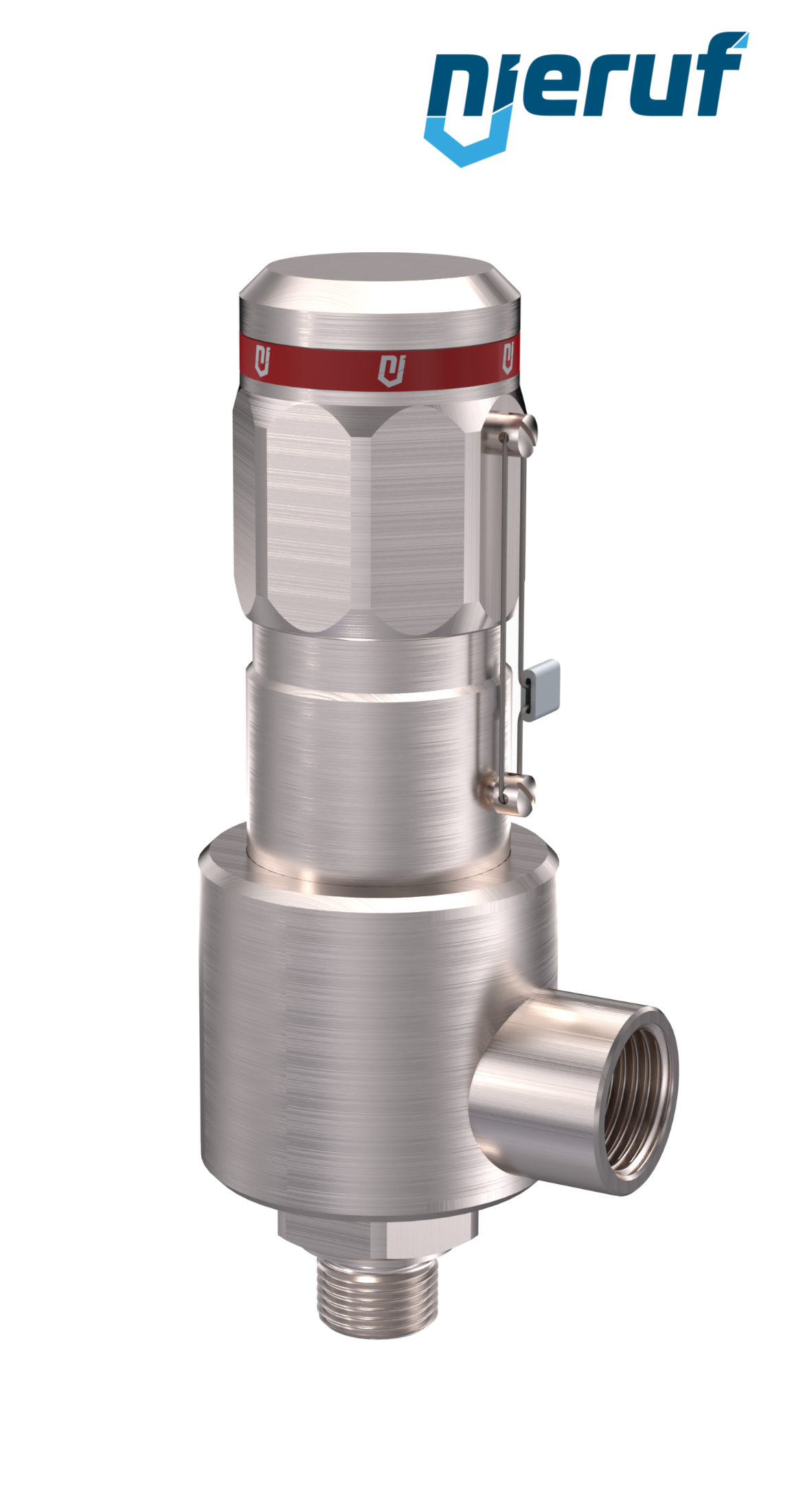

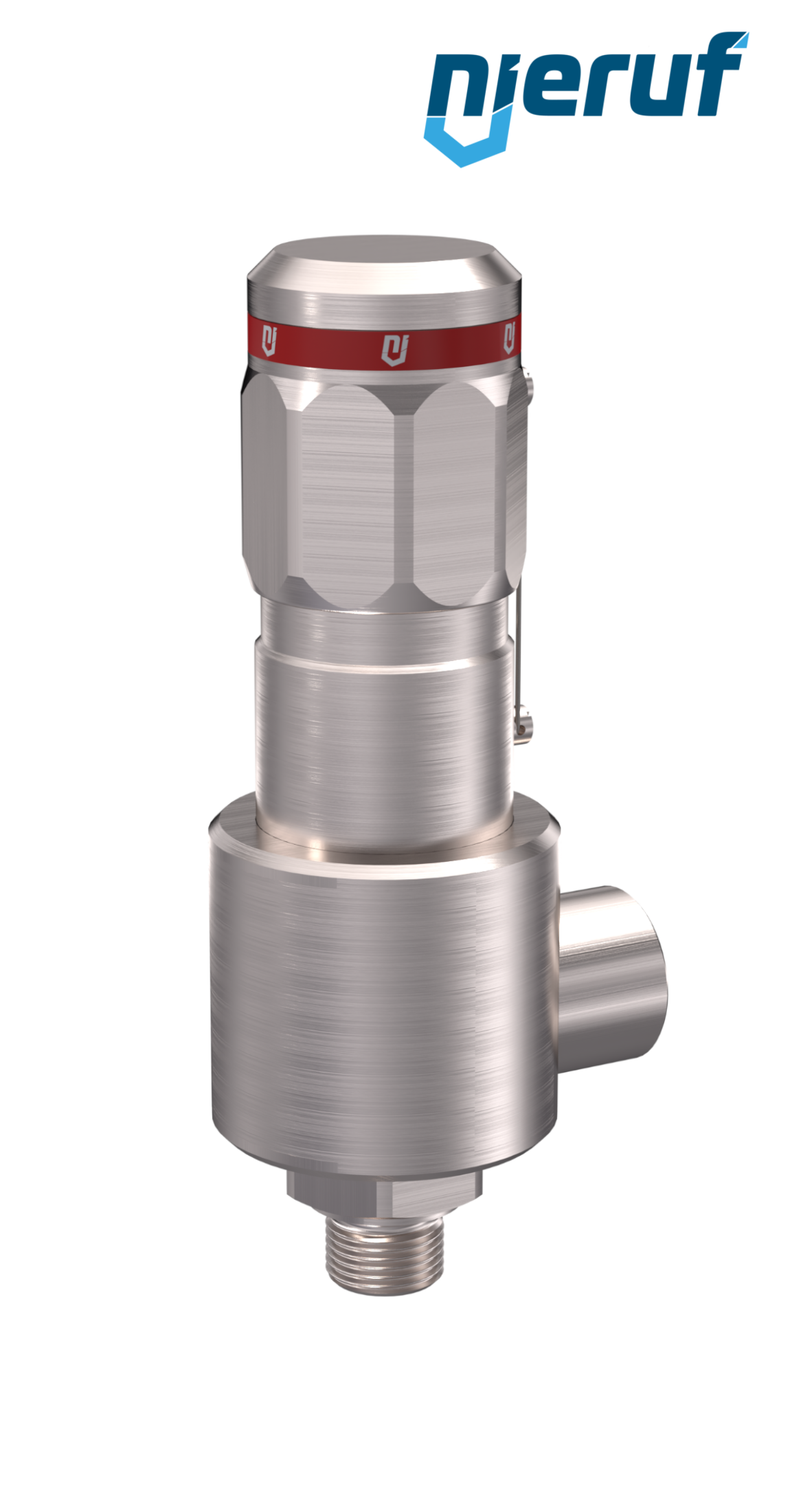

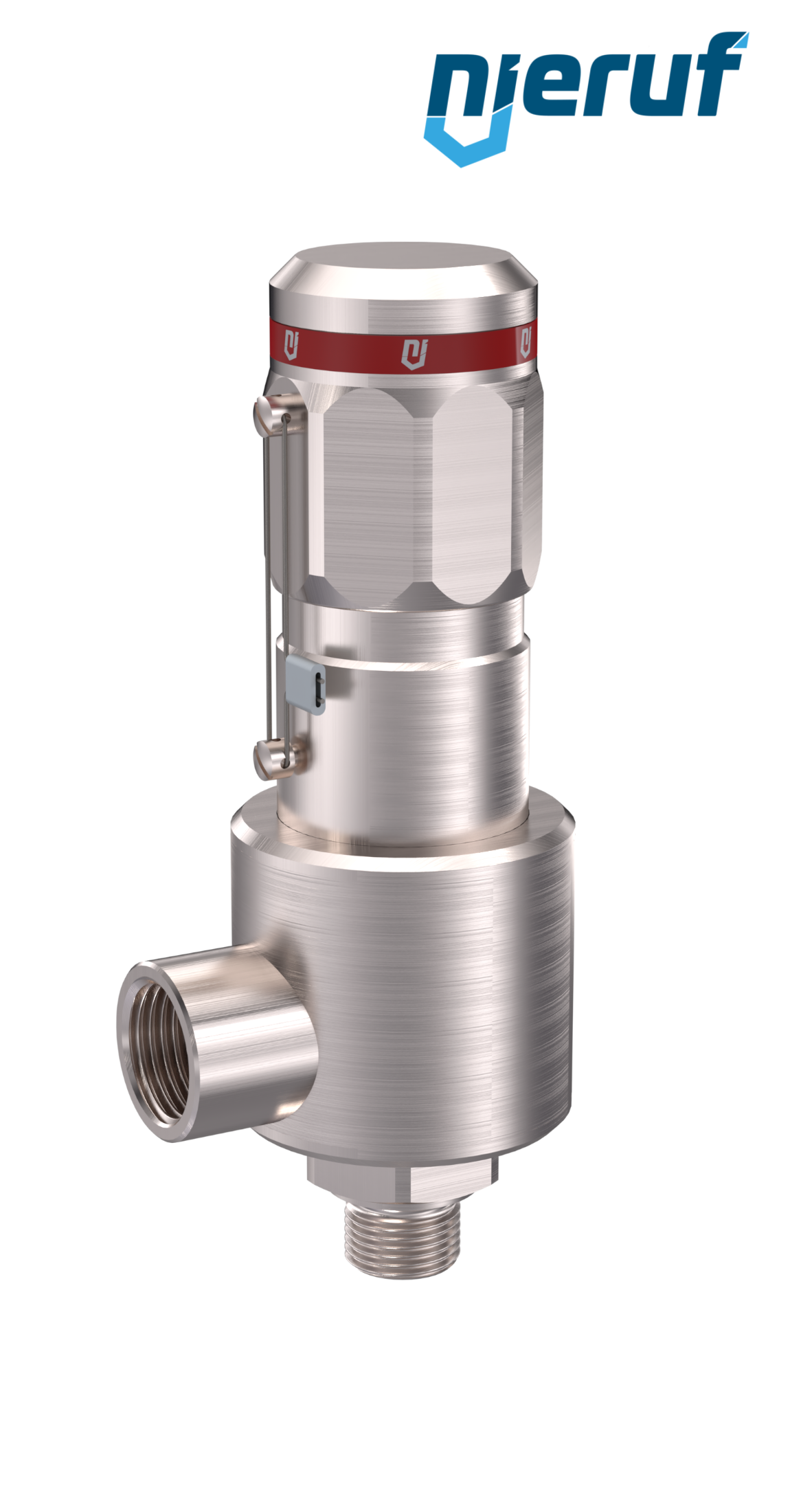

safety-valve DN6 1/4" m x 1/2" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD/ PEEK pressure >500,0 - 1100,0 bar without lifting device angle-type
| product: | High-pressure safety valve |
|---|---|
| type: | SV15 |
| manufacturer: | NieRuf |
| diameter: | DN6 1/4" m x 1/2" fm |
| d0: | 3,0 mm |
| connection: | male screw threaded NPT |
| seal: | MD/ PEEK |
| media: | gaseous media |
| temperature: | - 60°C up to + 180°C |
| set pressure: | >500,0 - 1100,0 bar |
| design: | angle-type |
| material: | stainless steel |
| lifting: | without lifting device |
| type test approval: | TUV = D/G 2100 / EG = S/G |
| requirements: | acc. EN ISO 4126-1, DGR 2014/68/EU, AD2000-A2 |
| installation position: | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| product feature 1: | For compressed air and other neutral and non-neutral gaseous media, not back pressure compensated. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety-valve DN6 1/4" m x 1/2" fm NPT, SV15, MD/ PEEK, without lifting device, angle-type, >500,0 - 1100,0 bar
Article no.
: SV15022101.3
product:
High-pressure safety valve
type:
SV15
manufacturer:
NieRuf
diameter:
DN6 1/4" m x 1/2" fm
d0:
3,0 mm
connection:
male screw threaded NPT
seal:
MD/ PEEK
media:
gaseous media
temperature:
- 60°C up to + 180°C
set pressure:
>500,0 - 1100,0 bar
design:
angle-type
material:
stainless steel
lifting:
without lifting device
type test approval:
TUV = D/G 2100 / EG = S/G
requirements:
acc. EN ISO 4126-1, DGR 2014/68/EU, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
product feature 1:
For compressed air and other neutral and non-neutral gaseous media, not back pressure compensated.
