SF04120104

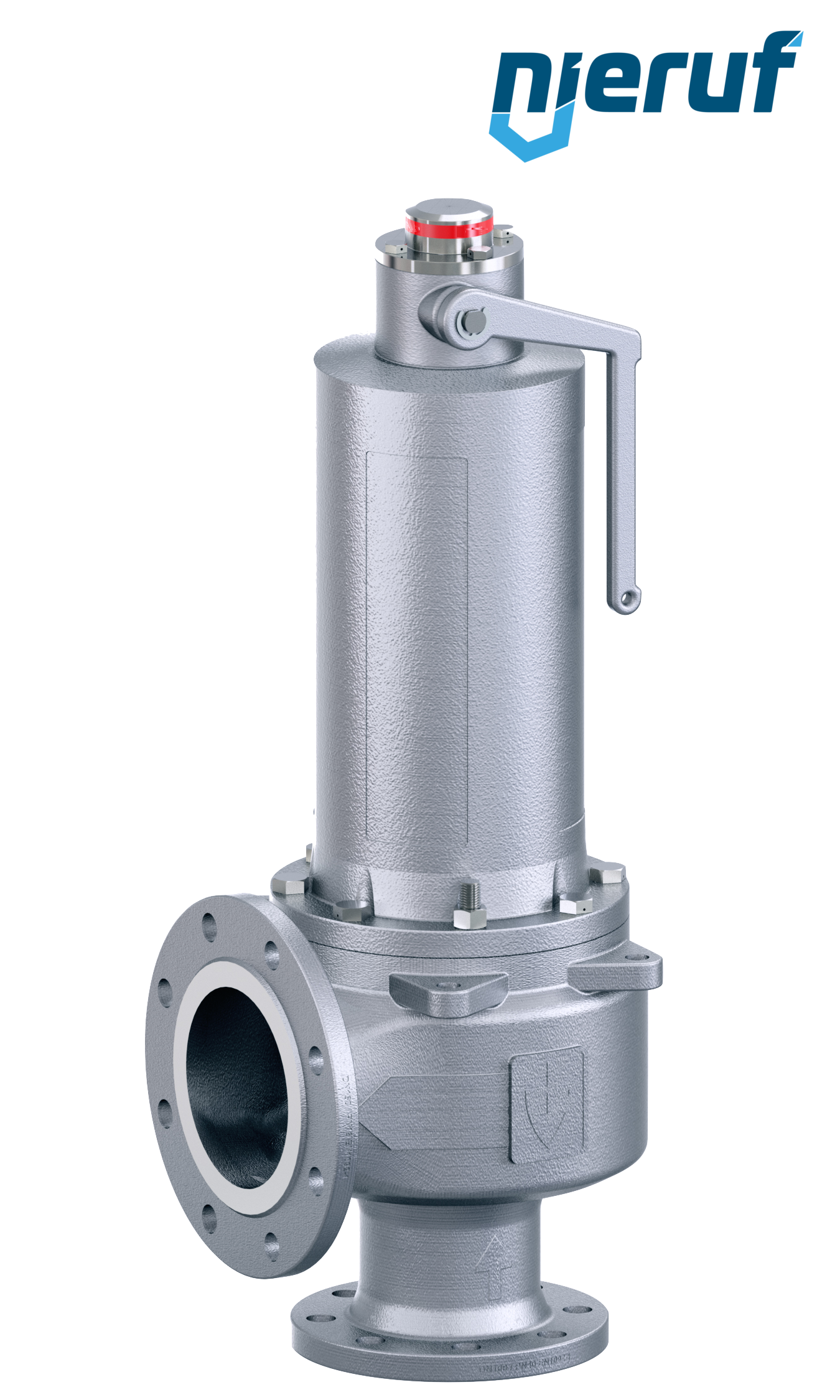

safety valve bellow & gastight cap DN20/DN32 SF04, EPDM, with lifting device lever
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
safety valve DN20/DN32 SF04 with bellows & gastight cap stainless steel seal EPDM pressure 0,8 - 40,0 bar lever
| product: | flange-safety valve |
|---|---|
| type: | SF04 |
| manufacturer: | NieRuf |
| diameter: | DN20/DN32 |
| d0: | 18,0 mm |
| connection: | flange acc. to DIN EN 1092-1 |
| seal: | EPDM |
| media: | liquid and gaseous media |
| temperature: | -40°C up to +170°C |
| set pressure: | 0,8 - 40,0 bar |
| design: | angle-type with bellow & gastight cap |
| material: | stainless steel |
| lifting: | with lifting device lever |
| type test approval: | TUV-SV-2094-D/G/F |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| SIL - safety integrity level: | SIL 3 |
| product feature 2: | for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve bellow & gastight cap DN20/DN32 SF04, EPDM, with lifting device lever
Article no.
: SF04120104
product:
flange-safety valve
type:
SF04
manufacturer:
NieRuf
diameter:
DN20/DN32
d0:
18,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
EPDM
media:
liquid and gaseous media
temperature:
-40°C up to +170°C
set pressure:
0,8 - 40,0 bar
design:
angle-type with bellow & gastight cap
material:
stainless steel
lifting:
with lifting device lever
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3
product feature 2:
for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium.
