GS01010008
female thread sight flow indicator DN50 - 2" Inch grey cast iron GG25 soda lime glass
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

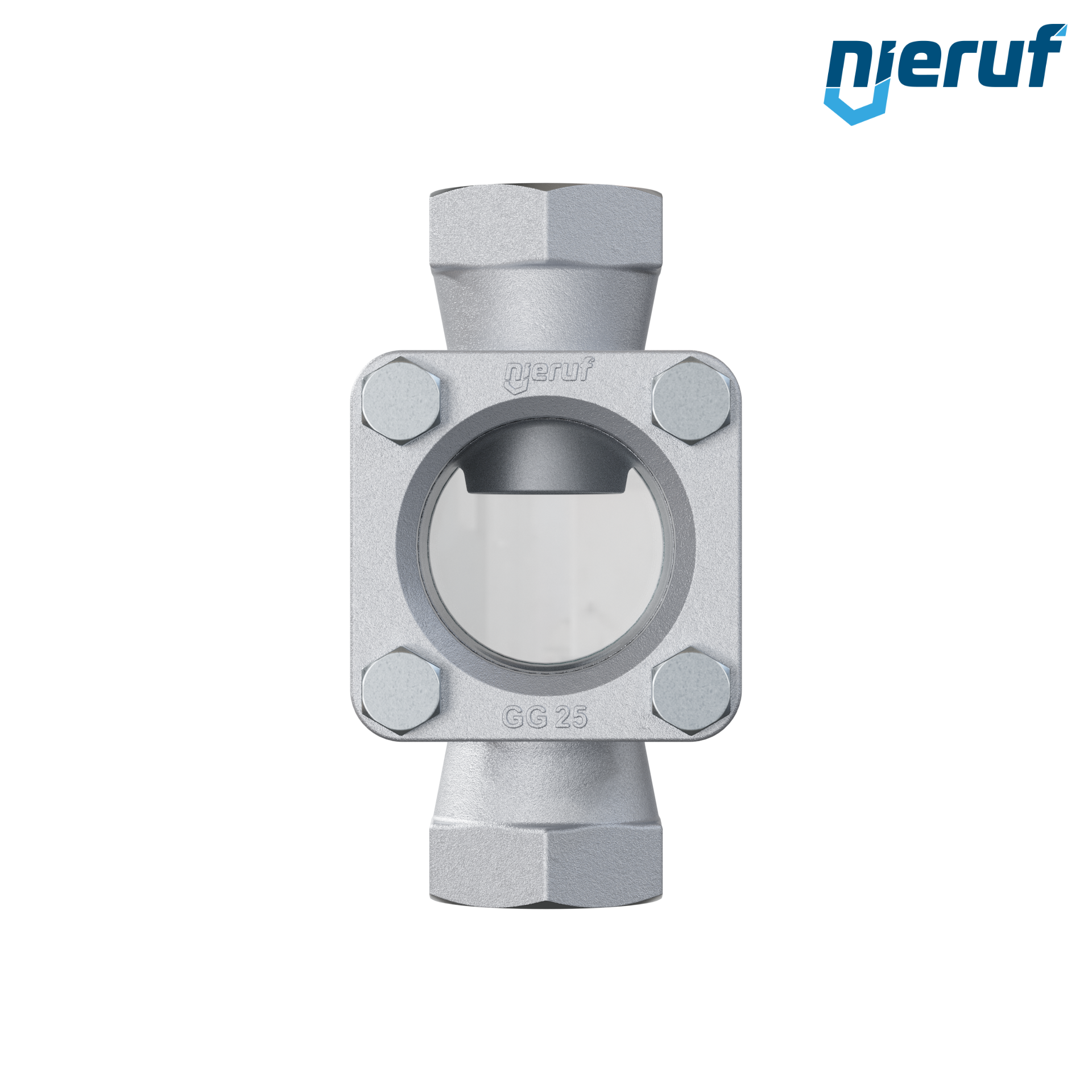

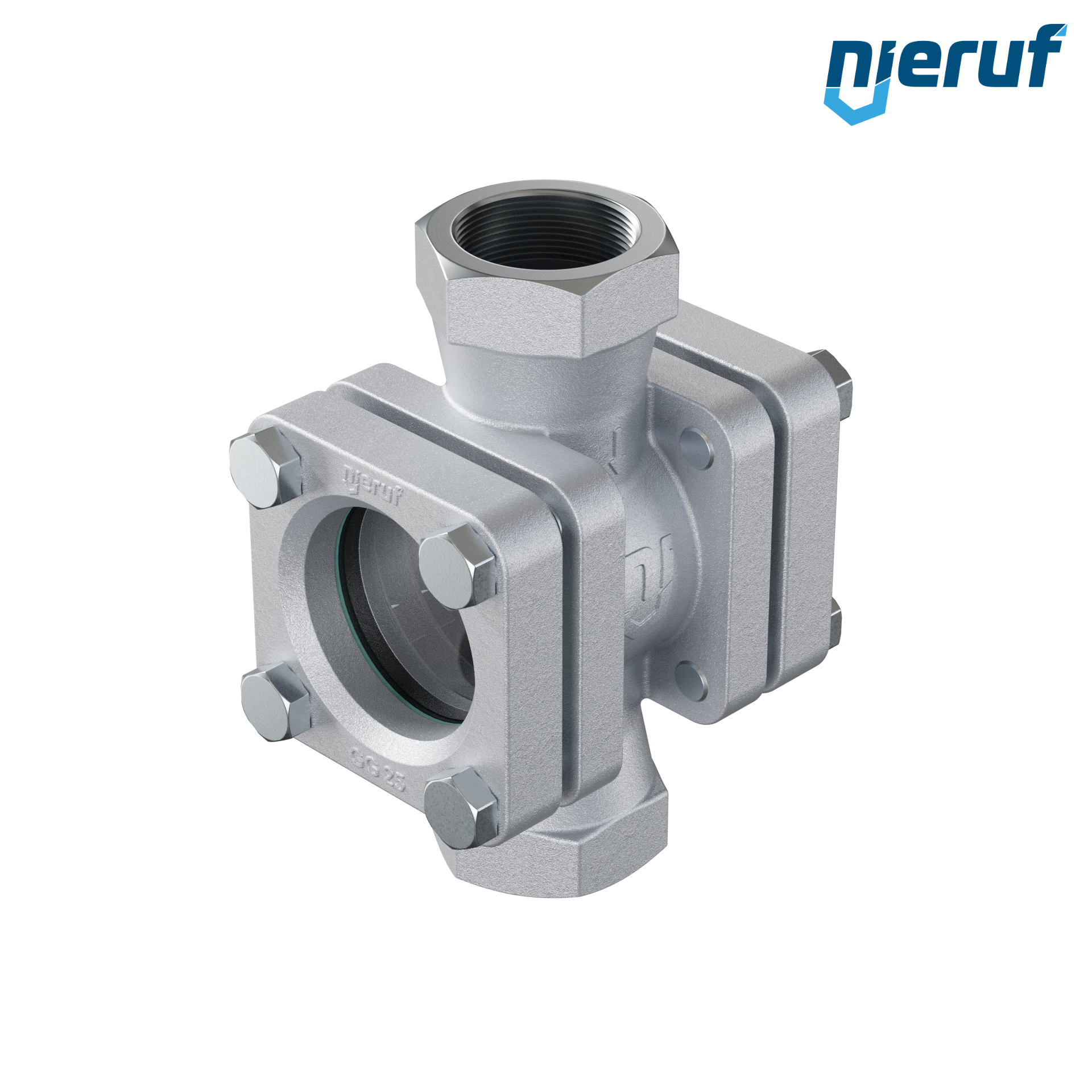

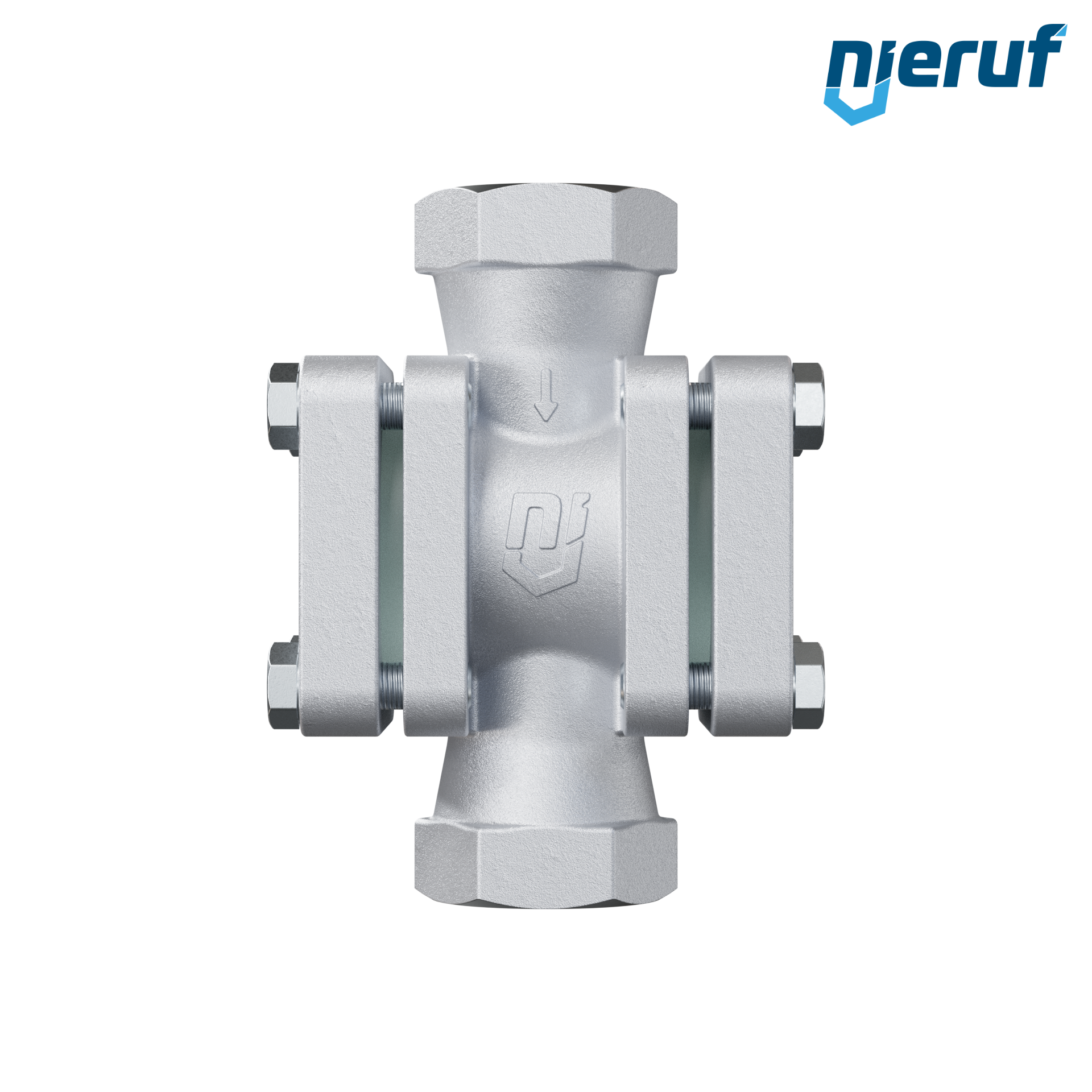

female thread sight flow indicator DN50 - 2" Inch Typ GS01 grey cast iron GG25 soda lime glass graphit max 16 bar
| product: | female thread sight flow indicator |
|---|---|
| type: | GS01 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN50 - 2" Inch |
| connection: | female thread |
| body material: | grey cast iron GG25 |
| cover material: | grey cast iron GG25 |
| glass: | soda lime glass |
| seal: | graphit |
| media: | liquid and gaseous media |
| temperature: | min -10°C up to max + 150°C |
| max. working pressure: | max 16 bar |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
female thread sight flow indicator DN50 - 2" Inch grey cast iron GG25 soda lime glass
Article no.
: GS01010008
product:
female thread sight flow indicator
type:
GS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN50 - 2" Inch
connection:
female thread
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -10°C up to max + 150°C
max. working pressure:
max 16 bar
installation position:
any position
