GS01010208

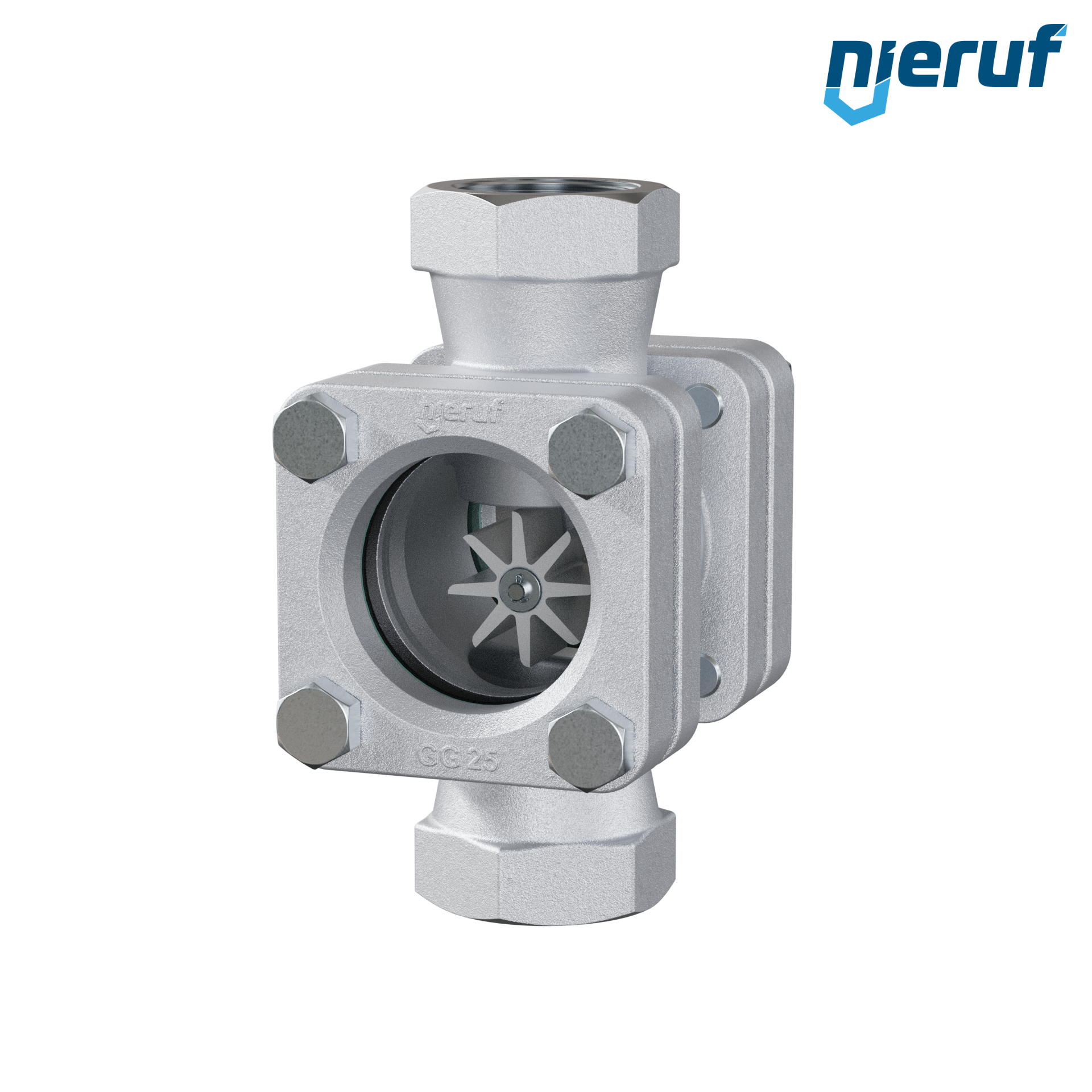

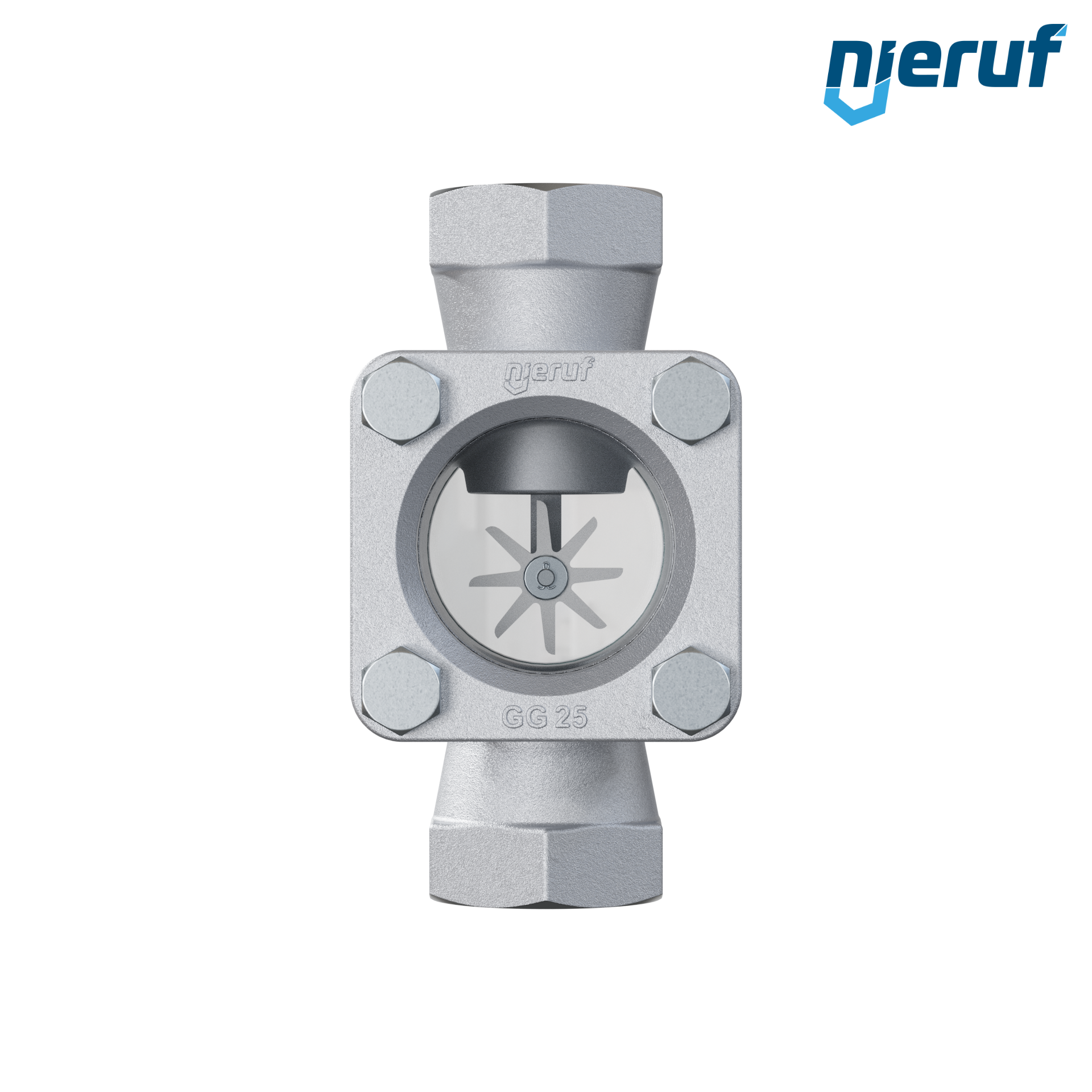

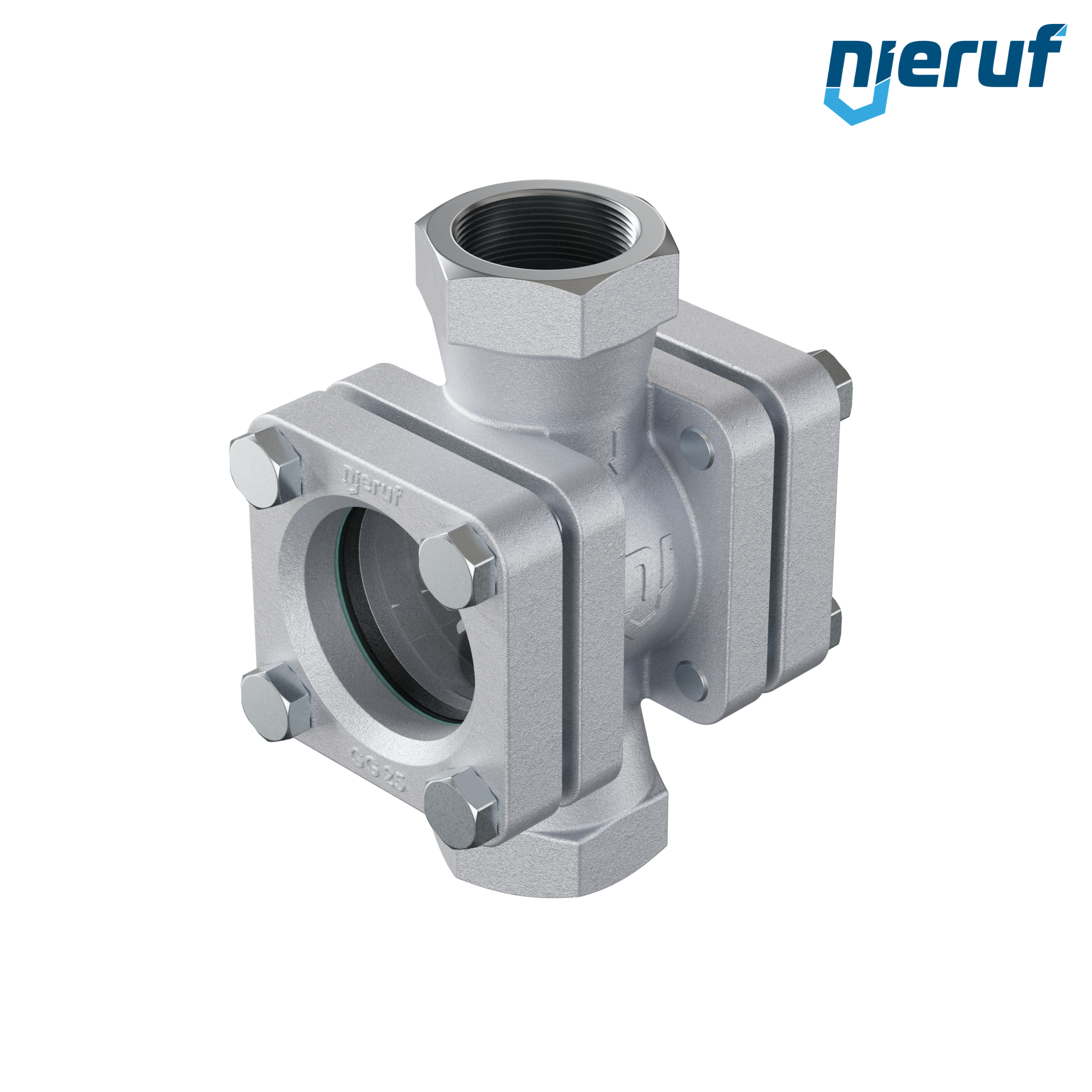

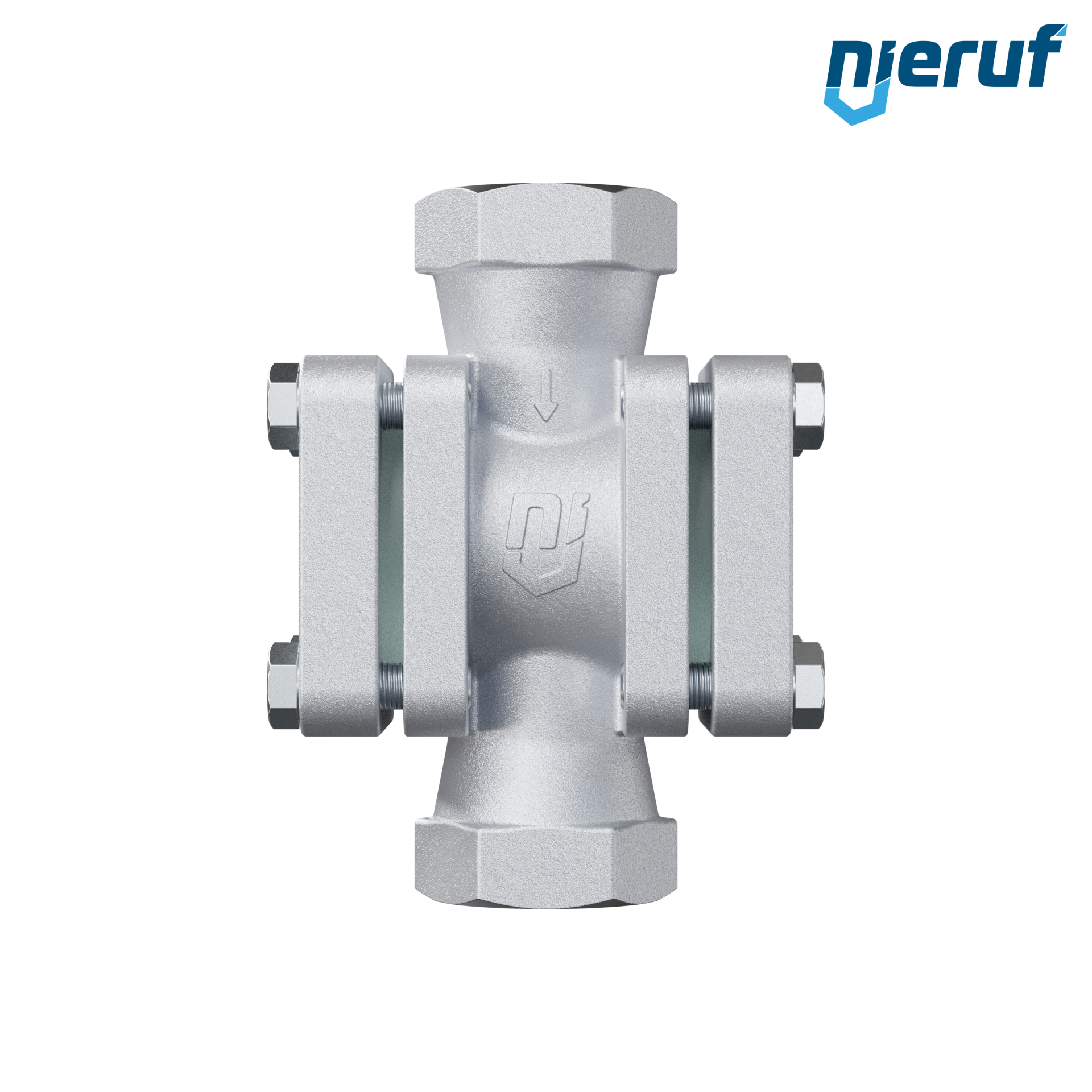

female thread sight flow indicator DN50 - 2" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
female thread sight flow indicator 2" grey cast iron GG25 Typ GS01 graphit max 16 bar design with PTFE-spinner
| product: | female thread sight flow indicator |
|---|---|
| type: | GS01 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN50 - 2" Inch |
| connection: | female thread |
| body material: | grey cast iron GG25 |
| cover material: | grey cast iron GG25 |
| glass: | soda lime glass |
| seal: | graphit |
| media: | liquid media |
| temperature: | min -10°C up to max + 150°C |
| max. working pressure: | max 16 bar |
| installation position: | any position |
| product feature: | design with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
female thread sight flow indicator DN50 - 2" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner
Article no.
: GS01010208
product:
female thread sight flow indicator
type:
GS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN50 - 2" Inch
connection:
female thread
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid media
temperature:
min -10°C up to max + 150°C
max. working pressure:
max 16 bar
installation position:
any position
product feature:
design with PTFE-spinner
