BS02000008
Sight glass fitting DN50 - 2" Inch BS02 stainless steel 1.4571 borosilicate glass 16bar
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

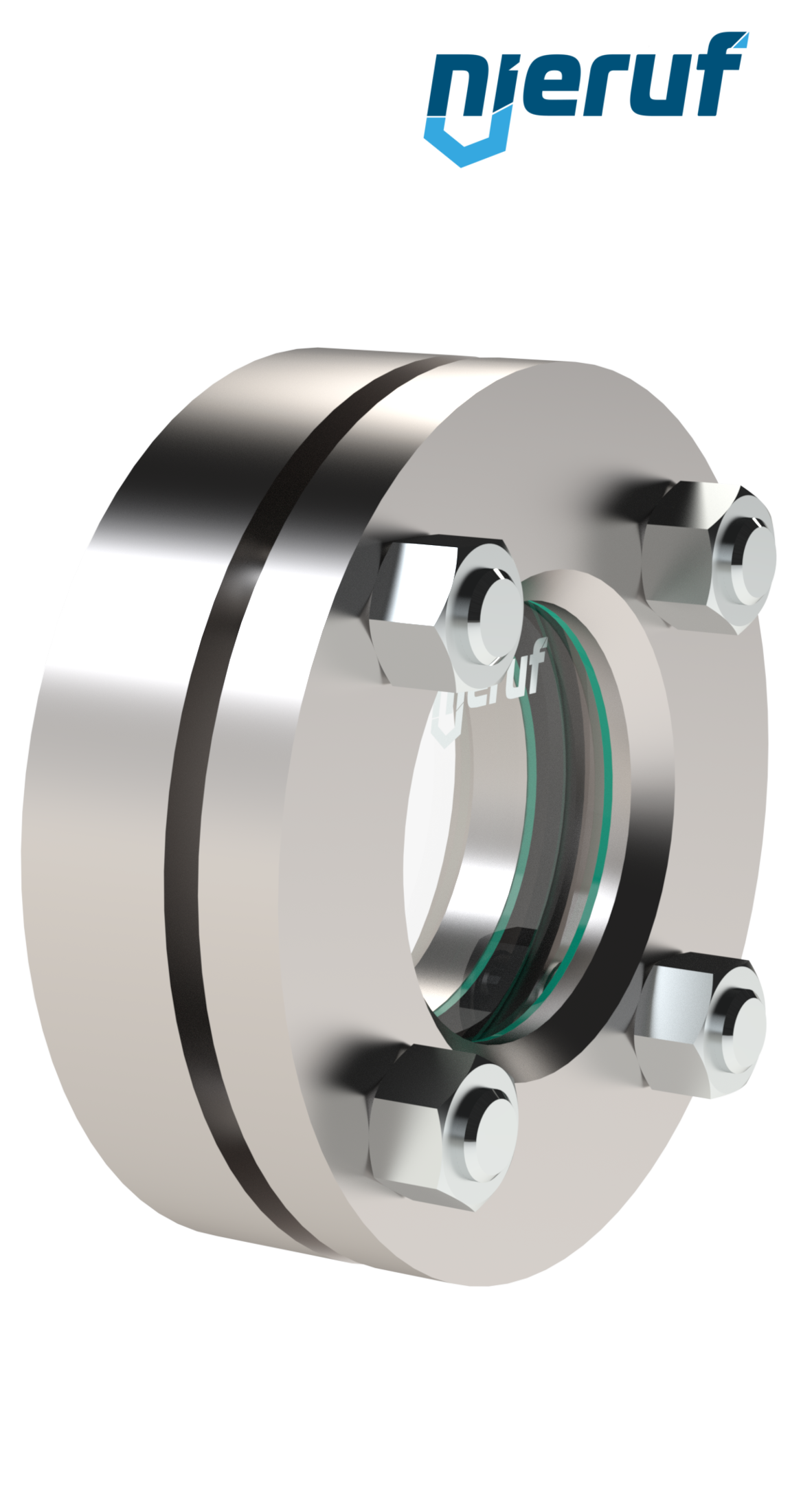

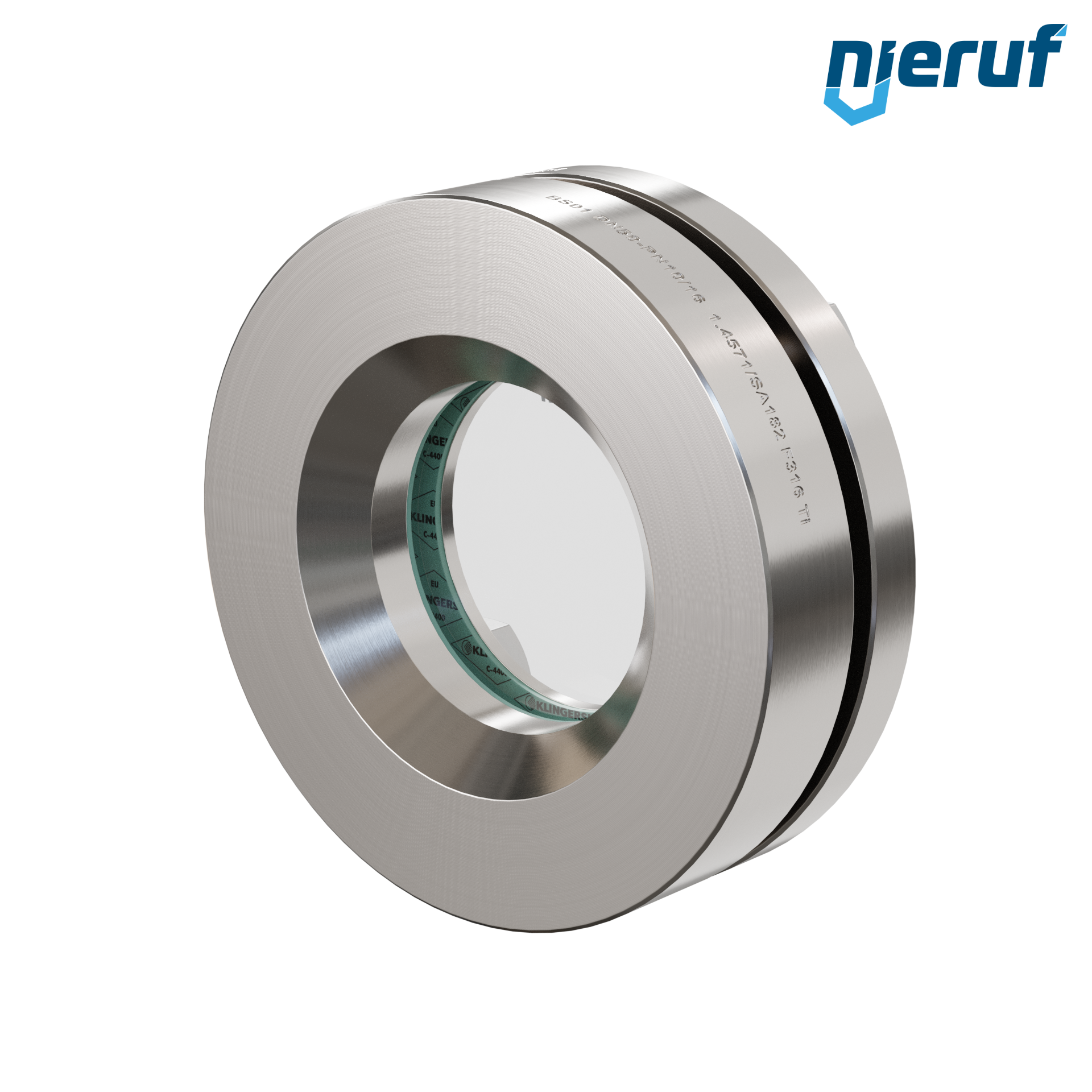

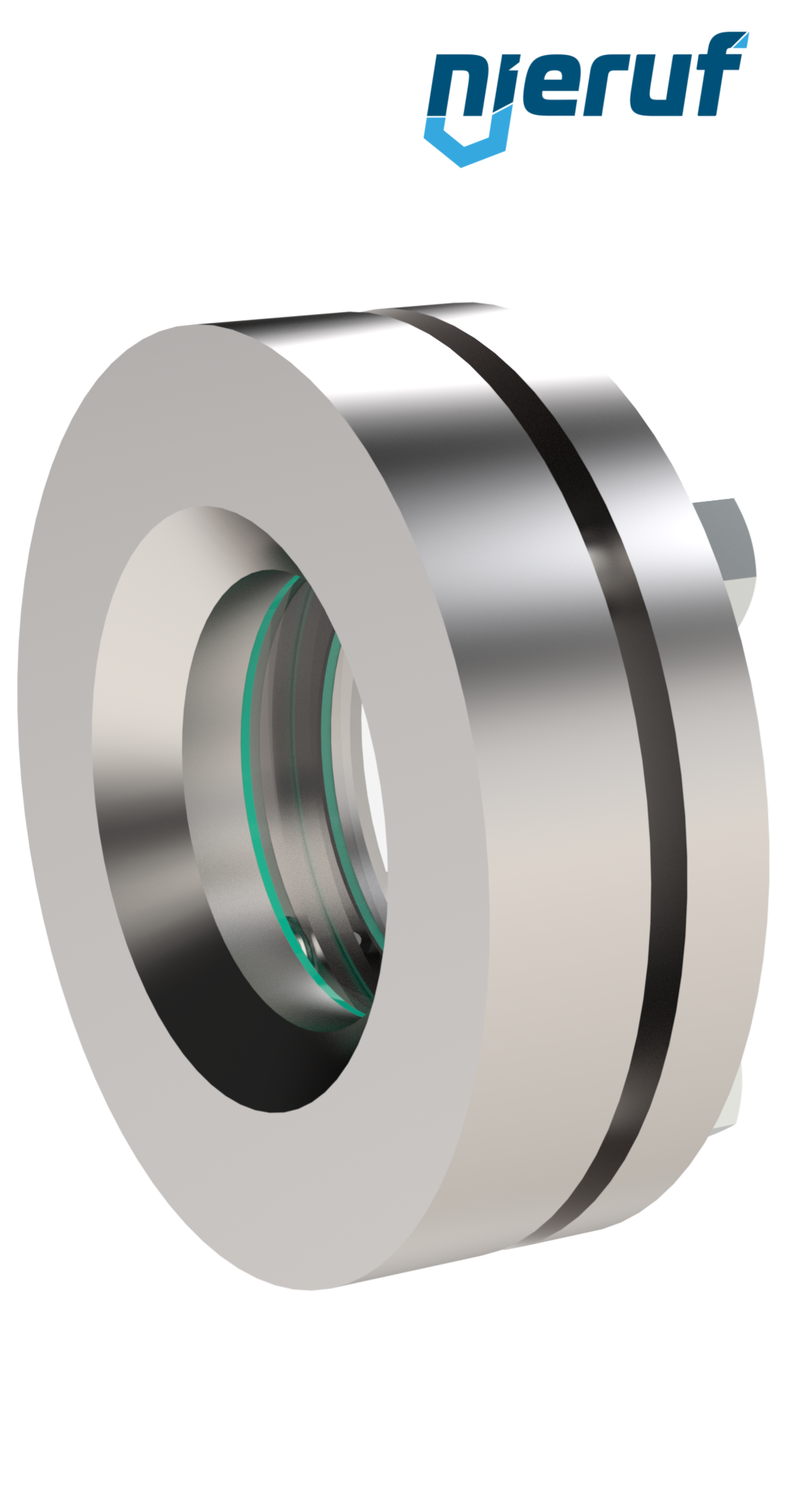

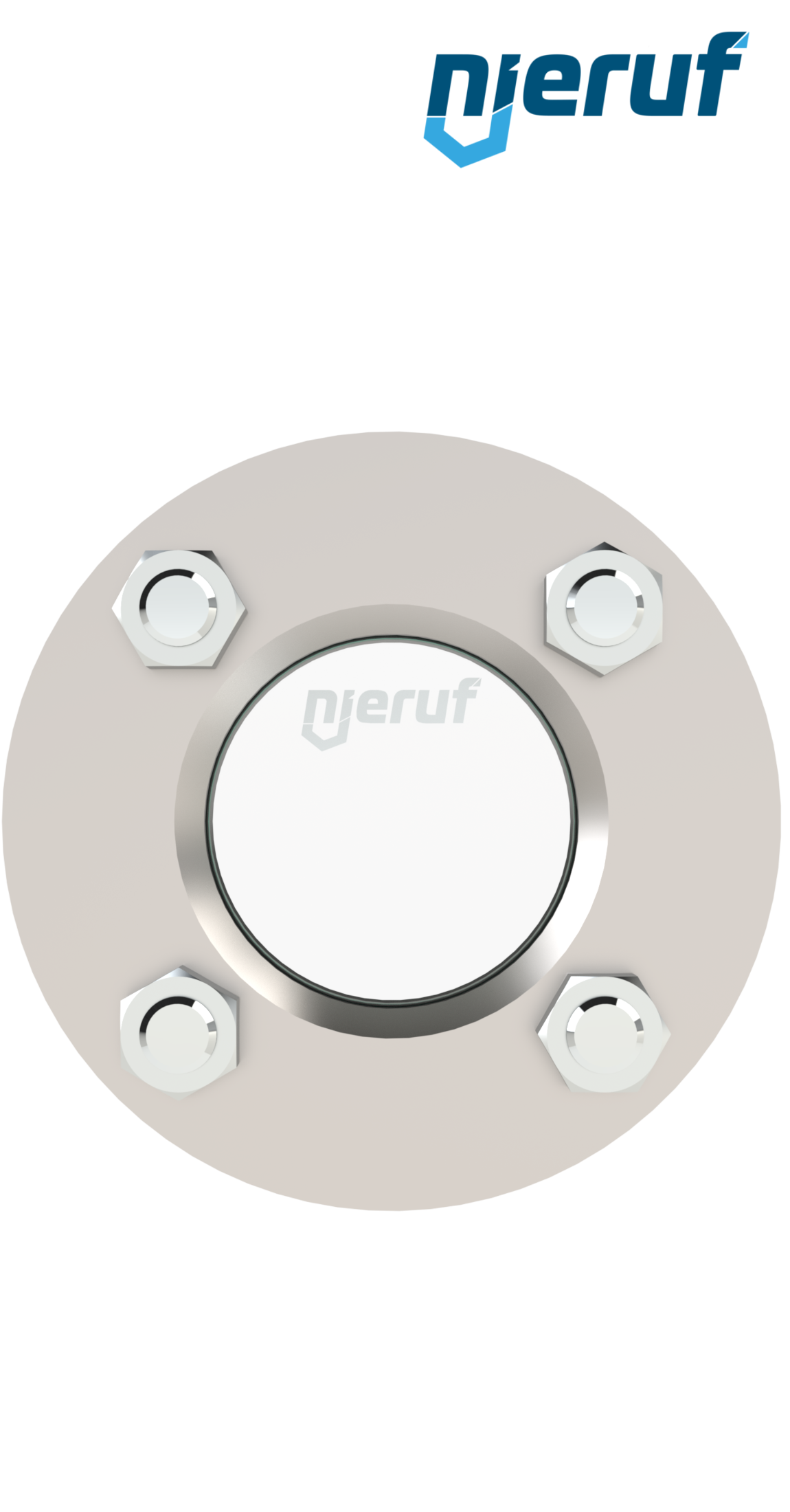

Sight glass fitting DN50 - 2" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass
| product: | Sight glass fitting |
|---|---|
| type: | BS02 |
| manufacturer: | NieRuf |
| design: | to be welded directly to tank |
| diameter: | DN50 - 2" Inch |
| connection: | to be welded directly to tank |
| body material: | stainless steel 1.4571 |
| cover material: | stainless steel 1.4571 |
| glass: | borosilicate glass |
| seal: | C4400 |
| media: | liquid and gaseous media |
| temperature: | max + 175°C |
| max. working pressure: | 16bar |
| requirements: | DIN 28120 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Sight glass fitting DN50 - 2" Inch BS02 stainless steel 1.4571 borosilicate glass 16bar
Article no.
: BS02000008
product:
Sight glass fitting
type:
BS02
manufacturer:
NieRuf
design:
to be welded directly to tank
diameter:
DN50 - 2" Inch
connection:
to be welded directly to tank
body material:
stainless steel 1.4571
cover material:
stainless steel 1.4571
glass:
borosilicate glass
seal:
C4400
media:
liquid and gaseous media
temperature:
max + 175°C
max. working pressure:
16bar
requirements:
DIN 28120
