KV05010001
solenoid valve input: G 1/8" inch 24V DC KV05
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you

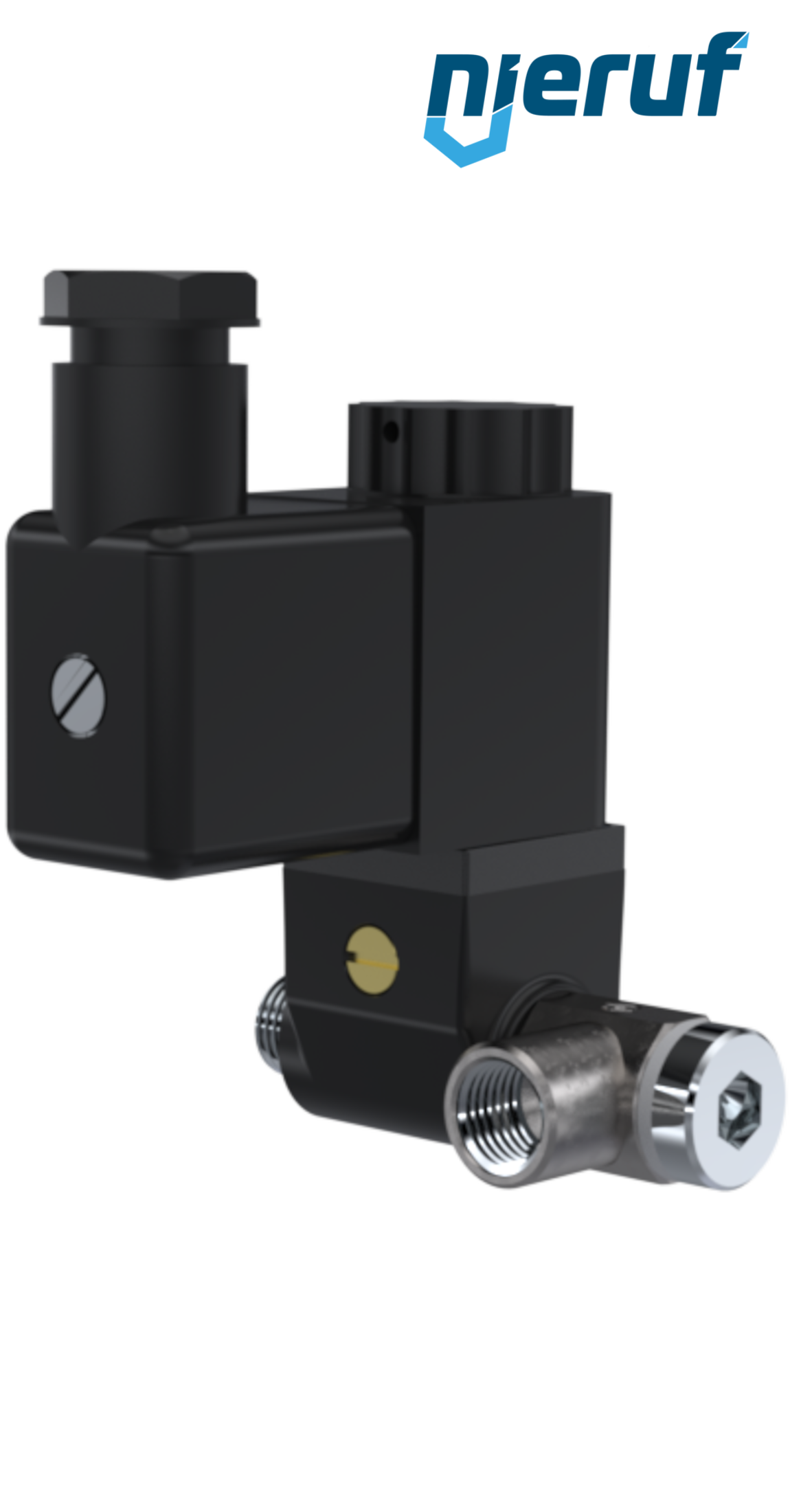

3/2-solenoid valve output: G 1/8" Inch input: G 1/8" inch plastic polyamid 24V DC NC - normally closed direct acting pressure air -0,9 - 10 bar
| product: | Solenoid valve |
|---|---|
| type: | KV05 |
| manufacturer: | NieRuf |
| design: | directly controlled three port solenoid valve with two outputs |
| diameter: | DN6 |
| connection: | output: G 1/8" Inch |
| connection 2: | input: G 1/8" inch |
| type of connection: | male thread |
| Type of design: | 3/2 ways |
| flow rate: | 50 l/min |
| function: | NC - normally closed |
| control: | direct acting |
| material: | plastic polyamid |
| voltage: | 24V DC |
| power consumption: | 3 Watt |
| media: | pressure air |
| max. pressure: | -0,9 - 10 bar |
| installation position: | any position, solenoid valve preferably upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
solenoid valve input: G 1/8" inch 24V DC KV05
Article no.
: KV05010001
product:
Solenoid valve
type:
KV05
manufacturer:
NieRuf
design:
directly controlled three port solenoid valve with two outputs
diameter:
DN6
connection:
output: G 1/8" Inch
connection 2:
input: G 1/8" inch
type of connection:
male thread
Type of design:
3/2 ways
flow rate:
50 l/min
function:
NC - normally closed
control:
direct acting
material:
plastic polyamid
voltage:
24V DC
power consumption:
3 Watt
media:
pressure air
max. pressure:
-0,9 - 10 bar
installation position:
any position, solenoid valve preferably upwards
