UV13030207

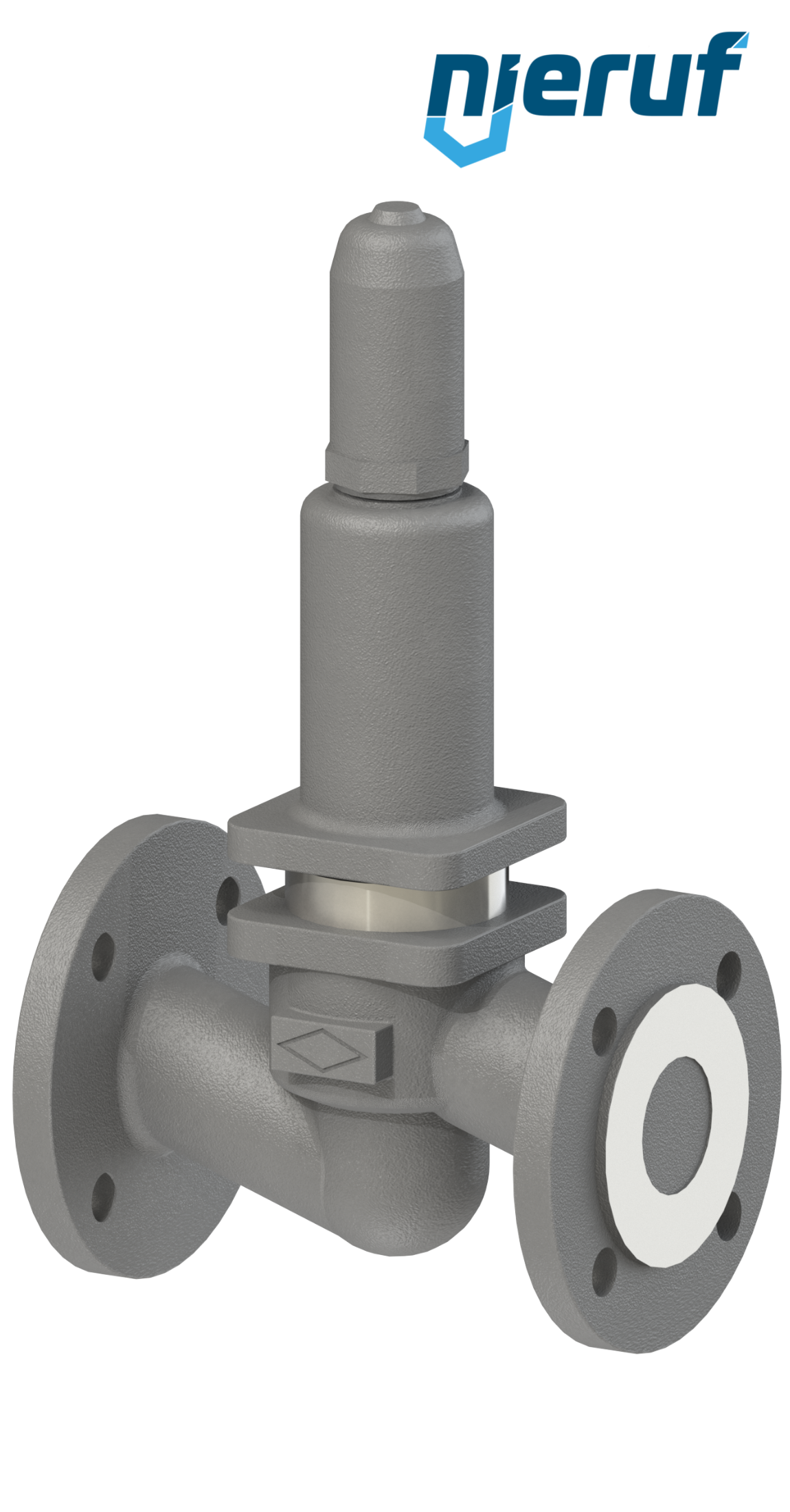

piston overflow valve DN 40 UV13 SG iron EN-JS1049 2,0 - 5,0 bar
Delivery time: 1 - 2 weeks
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
piston overflow valve DN 40 type UV13 made of SG iron EN-JS1049 pressure range 2,0 - 5,0 bar seal metall for liquid and gaseous media
| product: | piston overflow valve |
|---|---|
| type: | UV13 |
| manufacturer: | NieRuf |
| diameter: | DN 40 |
| connection: | flange connection DIN 1092-2 PN16 |
| seal: | metall |
| media: | liquid and gaseous media |
| temperature: | -10°C to +350°C |
| range of adjustment: | 2,0 - 5,0 bar |
| design: | straight through, spring loaded |
| material: | SG iron EN-JS1049 |
| plug unit: | 1.4201+QT |
| approval: | TA - Air TÜV-Test-No. 922-9241371 |
| installation position: | upright, bonnet showing upwards |
| product feature: | Spring operated Overflow valve with proportional operating characteristics. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston overflow valve DN 40 UV13 SG iron EN-JS1049 2,0 - 5,0 bar
Article no.
: UV13030207
product:
piston overflow valve
type:
UV13
manufacturer:
NieRuf
diameter:
DN 40
connection:
flange connection DIN 1092-2 PN16
seal:
metall
media:
liquid and gaseous media
temperature:
-10°C to +350°C
range of adjustment:
2,0 - 5,0 bar
design:
straight through, spring loaded
material:
SG iron EN-JS1049
plug unit:
1.4201+QT
approval:
TA - Air TÜV-Test-No. 922-9241371
installation position:
upright, bonnet showing upwards
product feature:
Spring operated Overflow valve with proportional operating characteristics.
