MB02030003
stainless steel-diaphragm valve 1/2 Inch membrane PTFE/EPDM two-piece female thread BSP
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

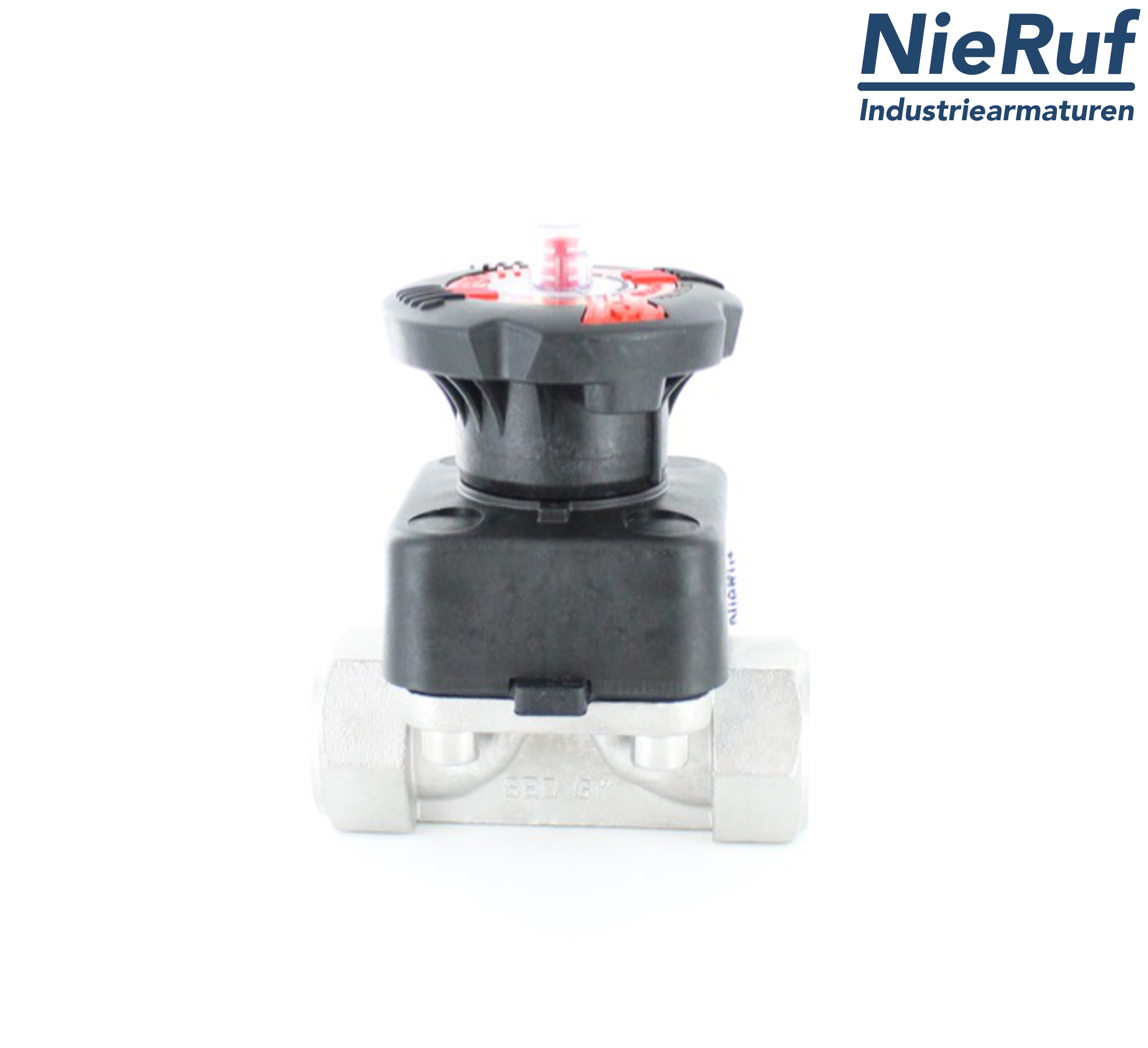

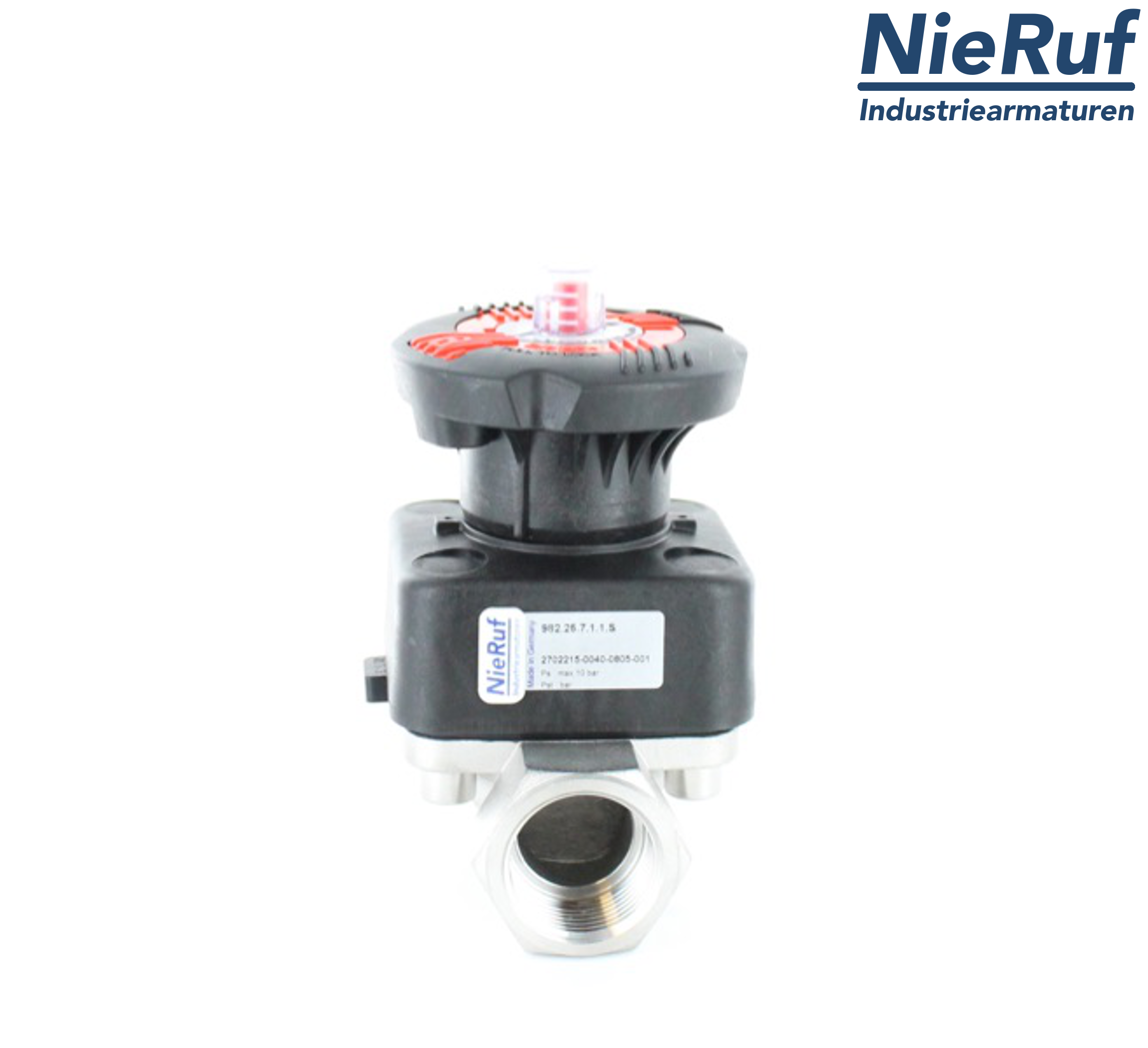

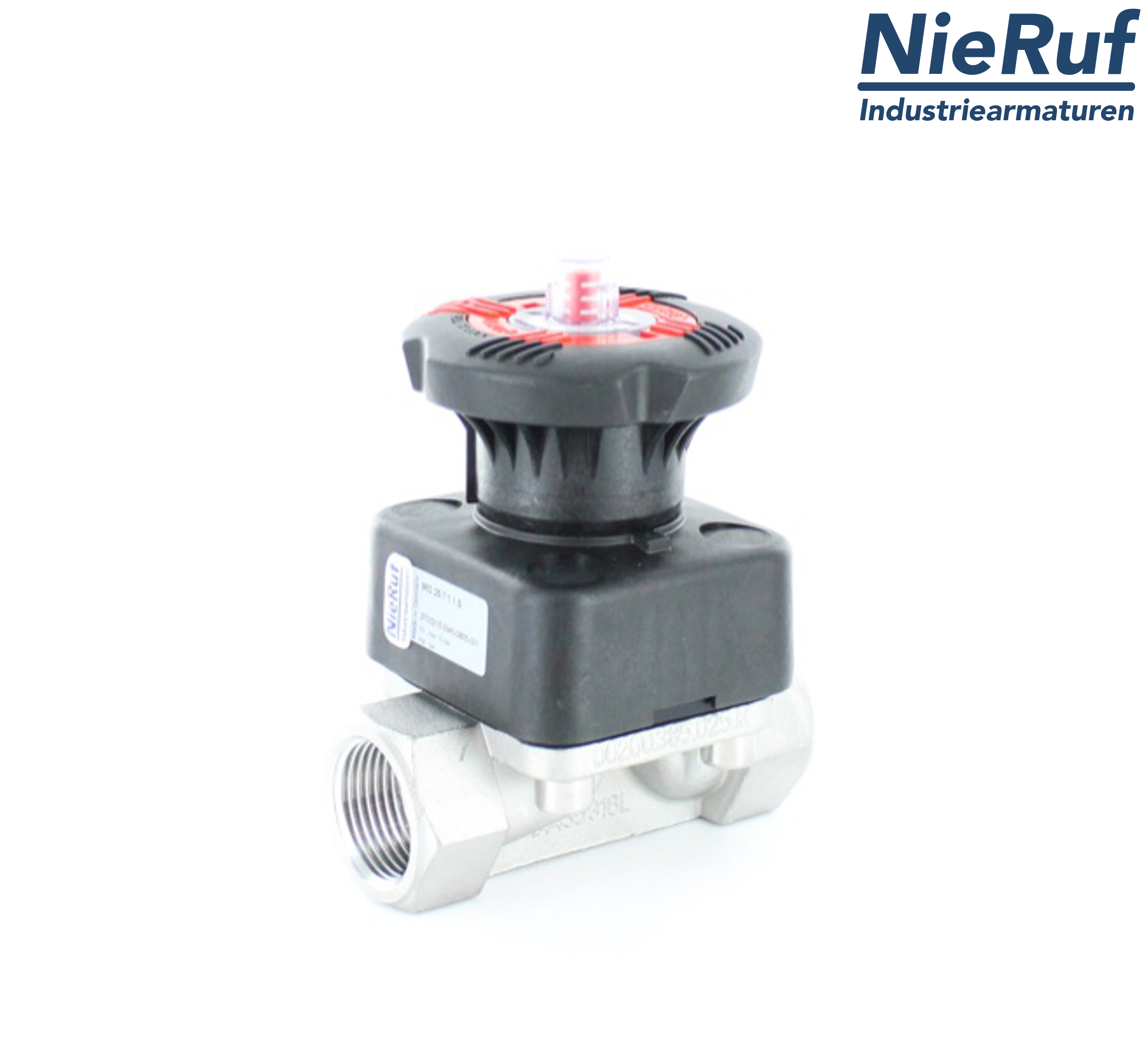

diaphragm valve made of stainless steel 1/2 Inch female thread with two-piece PTFE/EPDM membrane handwheel made of PP-GR pressure: PN10 KVs-value: 7 m3/h
| product: | diaphragm valve |
|---|---|
| type: | MB02 |
| manufacturer: | NieRuf |
| design: | with handwheel |
| diameter: | DN15 - 1/2" Inch |
| connection: | female thread BSP |
| material: | stainless steel 1.4435 |
| actuator: | handwheel made of PP-GR |
| diaphragm: | PTFE/EPDM two-piece |
| media: | liquid and gaseous media |
| KVs-value m3/h: | 7 |
| temperature: | -10°C up to +80°C |
| pressure range: | PN10 |
| product feature: | eliminates water hammer |
| product feature 2: | Maintenance free non corrosive actuator |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
stainless steel-diaphragm valve 1/2 Inch membrane PTFE/EPDM two-piece female thread BSP
Article no.
: MB02030003
product:
diaphragm valve
type:
MB02
manufacturer:
NieRuf
design:
with handwheel
diameter:
DN15 - 1/2" Inch
connection:
female thread BSP
material:
stainless steel 1.4435
actuator:
handwheel made of PP-GR
diaphragm:
PTFE/EPDM two-piece
media:
liquid and gaseous media
KVs-value m3/h:
7
temperature:
-10°C up to +80°C
pressure range:
PN10
product feature:
eliminates water hammer
product feature 2:
Maintenance free non corrosive actuator
