SK04103207
Variable area flowmeter stainless steel + borosilicate 1 1/2" inch 1000.0 - 10000 l/h water EPDM
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

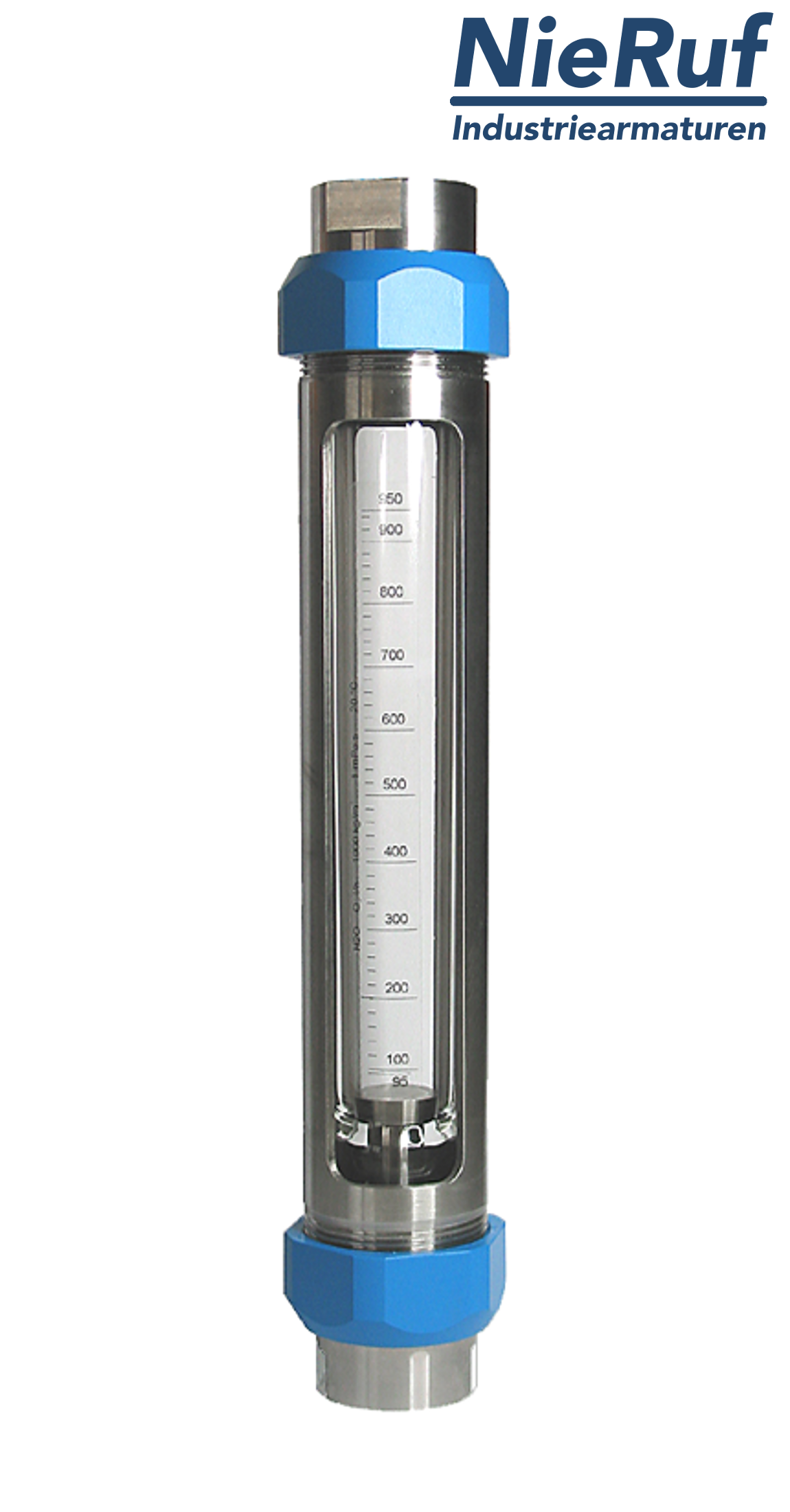

Variable area flowmeter made of stainless steel + borosilicate Measuring range 1000.0 - 10000 l/h, connection 1 1/2" inch EPDM female thread DIN ISO 228 for water
| product: | Variable area flowmeter |
|---|---|
| type: | SK04 |
| manufacturer: | NieRuf |
| diameter: | 1 1/2" inch |
| connection: | female thread DIN ISO 228 |
| connection material: | stainless steel 1.4571 |
| body material: | stainless steel + borosilicate |
| seal: | EPDM |
| float material: | stainless steel 1.4571 |
| float version design: | standard |
| media: | water |
| mark: | Different media are available upon request |
| mark 2: | standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s |
| pressure loss float: | 25 mbar |
| temperature: | max. 150°C (from 90° additional charge) |
| Measuring range: | 1000.0 - 10000 l/h |
| unit of scale: | m³/h |
| working pressure: | 8 bar |
| accuracy: | G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position: | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter stainless steel + borosilicate 1 1/2" inch 1000.0 - 10000 l/h water EPDM
Article no.
: SK04103207
product:
Variable area flowmeter
type:
SK04
manufacturer:
NieRuf
diameter:
1 1/2" inch
connection:
female thread DIN ISO 228
connection material:
stainless steel 1.4571
body material:
stainless steel + borosilicate
seal:
EPDM
float material:
stainless steel 1.4571
float version design:
standard
media:
water
mark:
Different media are available upon request
mark 2:
standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float:
25 mbar
temperature:
max. 150°C (from 90° additional charge)
Measuring range:
1000.0 - 10000 l/h
unit of scale:
m³/h
working pressure:
8 bar
accuracy:
G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
