SK04100101

Variable area flowmeter stainless steel + borosilicate 1/4" inch 0.1 - 1.0 l/h water EPDM

Operating data


€540.30*

€642.96 VAT included.

Delivery time
1 - 2 weeks

Equipment

ST01000001

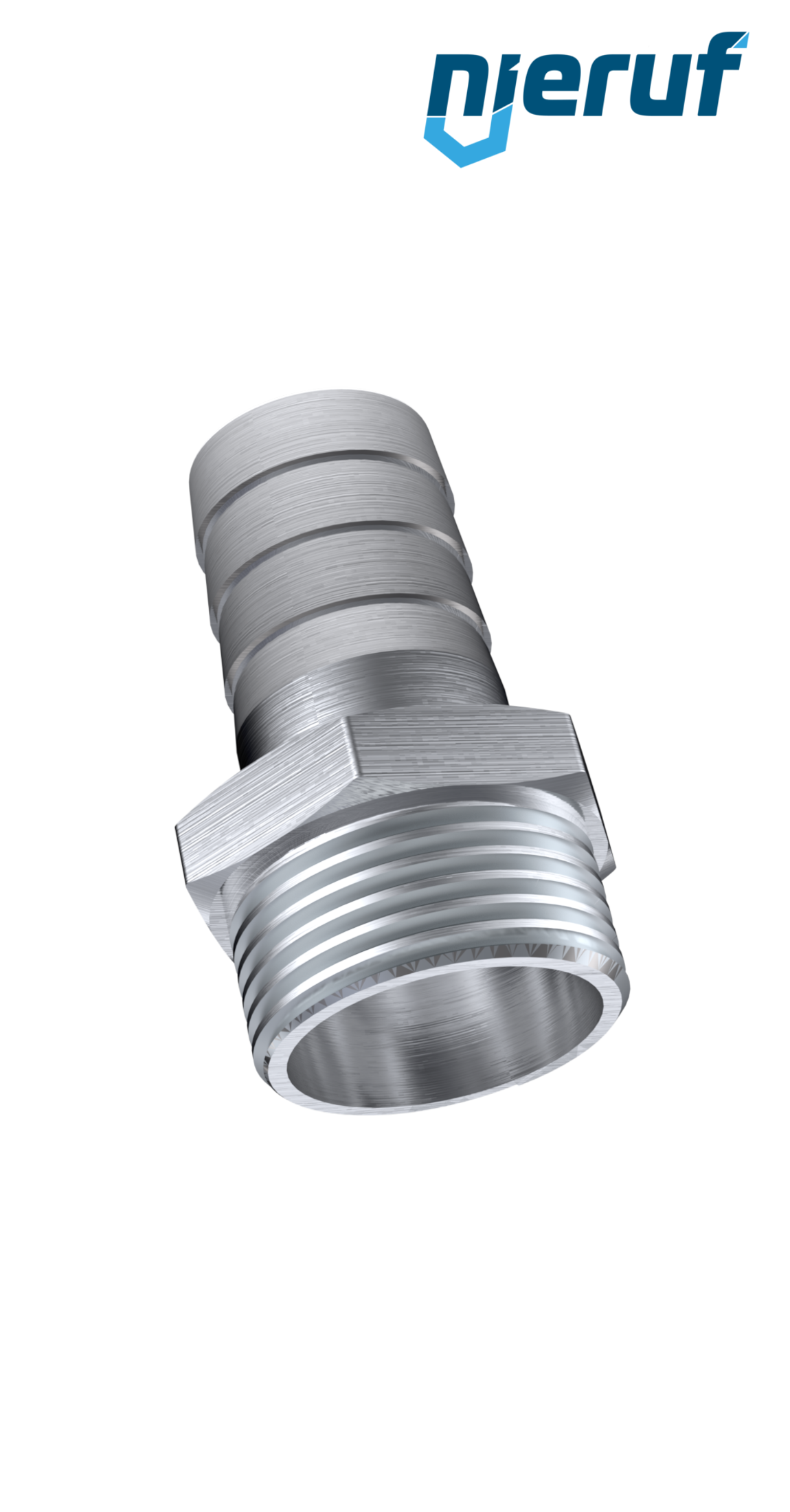

hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01

€1.80*

€2.14 VAT included.


GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE


Product number: SK04100101

Downloads

Variable area flowmeter stainless steel + borosilicate 1/4" inch 0.1 - 1.0 l/h water EPDM

Variable area flowmeter Measuring range 0.1 - 1.0 l/h, connection 1/4" inch EPDM female thread DIN ISO 228 for water

product Variable area flowmeter
type SK04
manufacturer NieRuf
diameter 1/4" inch
connection female thread DIN ISO 228
connection material stainless steel 1.4571
body material stainless steel + borosilicate
seal EPDM
float material stainless steel 1.4571
float version design standard
media water
mark Different media are available upon request
mark 2 standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float 10 mbar
temperature max. 150°C (from 90° additional charge)
Measuring range 0.1 - 1.0 l/h
unit of scale l/h
working pressure 10 bar
accuracy G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position vertically upwards

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Variable area flowmeter stainless steel + borosilicate 1/4" inch 0.1 - 1.0 l/h water EPDM

Article no. : SK04100101
product: Variable area flowmeter
type: SK04
manufacturer: NieRuf
diameter: 1/4" inch
connection: female thread DIN ISO 228
connection material: stainless steel 1.4571
body material: stainless steel + borosilicate
seal: EPDM
float material: stainless steel 1.4571
float version design: standard
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 10 mbar
temperature: max. 150°C (from 90° additional charge)
Measuring range: 0.1 - 1.0 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards

No spare parts were found for the item number .

GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.

ST01000001

hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01

€1.80*

€2.14 VAT included.
