SK06200404

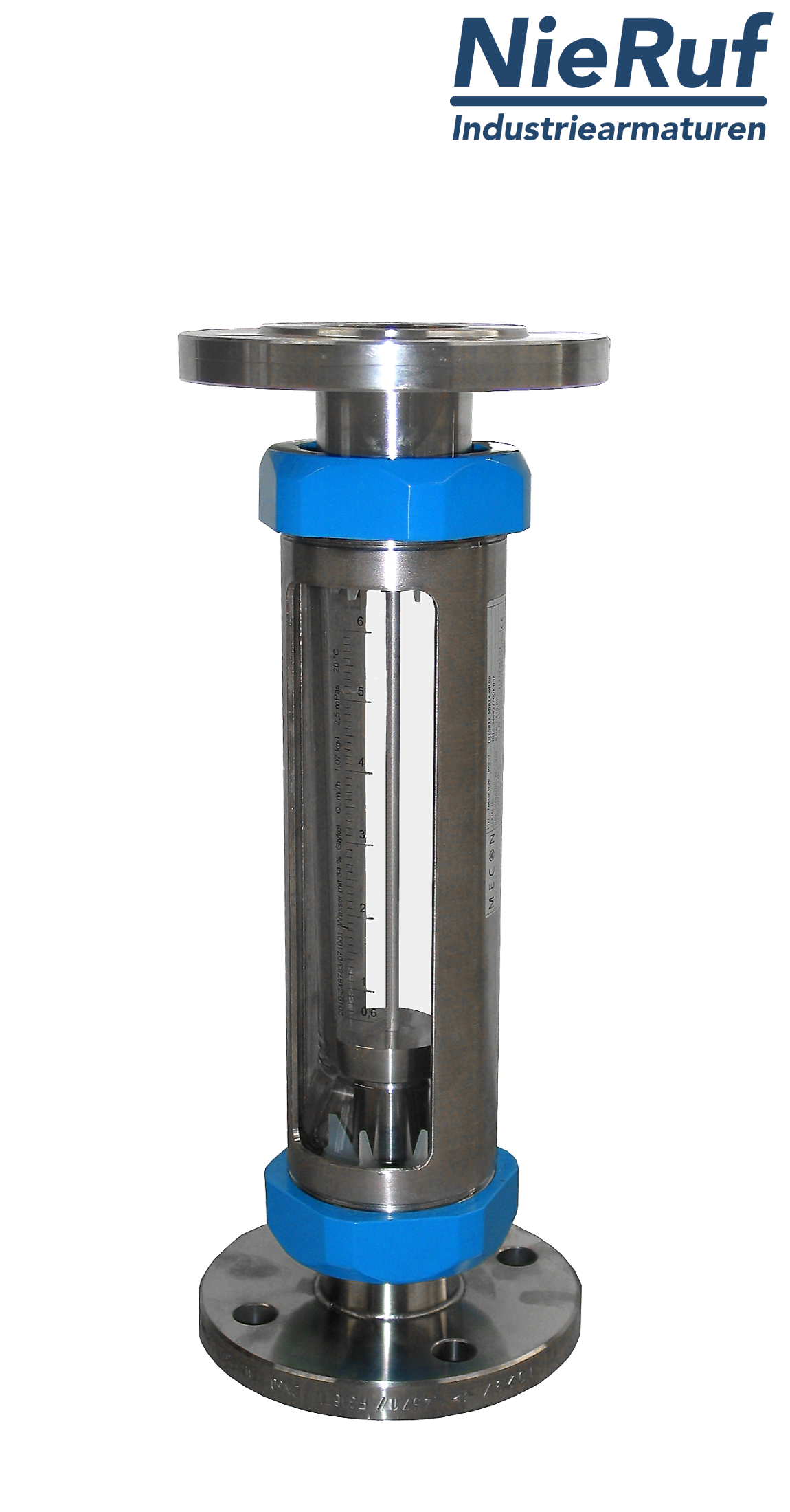

Variable area flowmeter stainless steel + borosilicate flange DN20 1.0 - 10.0 l/h water FKM
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Variable area flowmeter Measuring range 1.0 - 10.0 l/h, connection DN20 FKM flange DIN PN40 for water
| product: | Variable area flowmeter |
|---|---|
| type: | SK06 |
| manufacturer: | NieRuf |
| diameter: | DN20 |
| connection: | flange DIN PN40 |
| connection material: | stainless steel 1.4571 |
| body material: | stainless steel + borosilicate |
| seal: | FKM |
| float material: | stainless steel 1.4571 |
| float version design: | standard |
| media: | water |
| mark: | Different media are available upon request |
| mark 2: | standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s |
| pressure loss float: | 10 mbar |
| temperature: | max. 150°C (from 90° additional charge) |
| Measuring range: | 1.0 - 10.0 l/h |
| unit of scale: | l/h |
| working pressure: | 10 bar |
| accuracy: | G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position: | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter stainless steel + borosilicate flange DN20 1.0 - 10.0 l/h water FKM
Article no.
: SK06200404
product:
Variable area flowmeter
type:
SK06
manufacturer:
NieRuf
diameter:
DN20
connection:
flange DIN PN40
connection material:
stainless steel 1.4571
body material:
stainless steel + borosilicate
seal:
FKM
float material:
stainless steel 1.4571
float version design:
standard
media:
water
mark:
Different media are available upon request
mark 2:
standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float:
10 mbar
temperature:
max. 150°C (from 90° additional charge)
Measuring range:
1.0 - 10.0 l/h
unit of scale:
l/h
working pressure:
10 bar
accuracy:
G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
