SK06103110
Variable area flowmeter stainless steel + borosilicate flange DN80 800.0 - 8000 l/h water EPDM
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

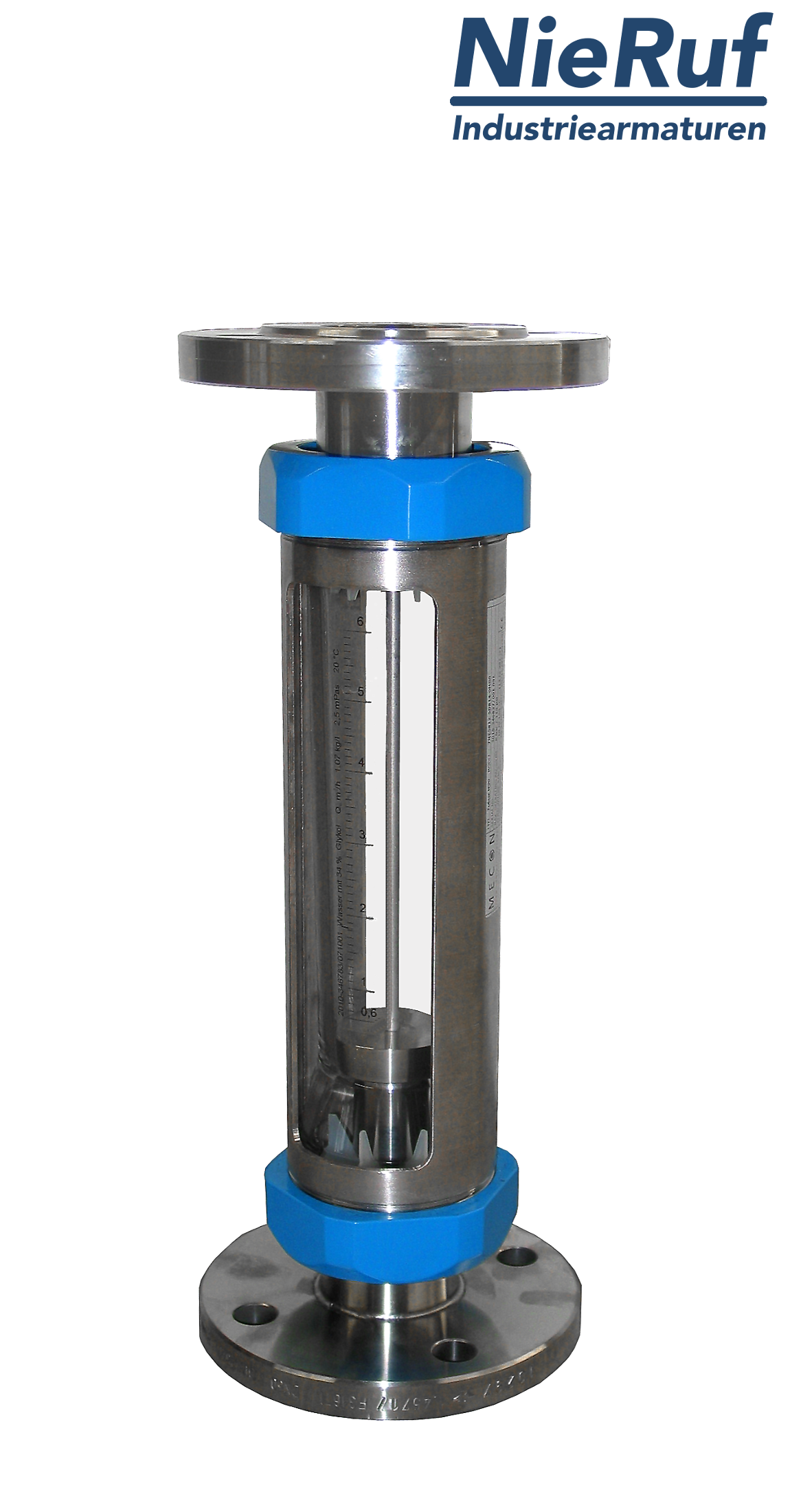

Variable area flowmeter Measuring range 800.0 - 8000 l/h, connection DN80 EPDM flange DIN PN16 for water
| product: | Variable area flowmeter |
|---|---|
| type: | SK06 |
| manufacturer: | NieRuf |
| diameter: | DN80 |
| connection: | flange DIN PN16 |
| connection material: | stainless steel 1.4571 |
| body material: | stainless steel + borosilicate |
| seal: | EPDM |
| float material: | stainless steel 1.4571 |
| float version design: | standard |
| media: | water |
| mark: | Different media are available upon request |
| mark 2: | standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s |
| pressure loss float: | 25 mbar |
| temperature: | max. 150°C (from 90° additional charge) |
| Measuring range: | 800.0 - 8000 l/h |
| unit of scale: | m³/h |
| working pressure: | 8 bar |
| accuracy: | G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position: | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter stainless steel + borosilicate flange DN80 800.0 - 8000 l/h water EPDM
Article no.
: SK06103110
product:
Variable area flowmeter
type:
SK06
manufacturer:
NieRuf
diameter:
DN80
connection:
flange DIN PN16
connection material:
stainless steel 1.4571
body material:
stainless steel + borosilicate
seal:
EPDM
float material:
stainless steel 1.4571
float version design:
standard
media:
water
mark:
Different media are available upon request
mark 2:
standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float:
25 mbar
temperature:
max. 150°C (from 90° additional charge)
Measuring range:
800.0 - 8000 l/h
unit of scale:
m³/h
working pressure:
8 bar
accuracy:
G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
