DM22000104

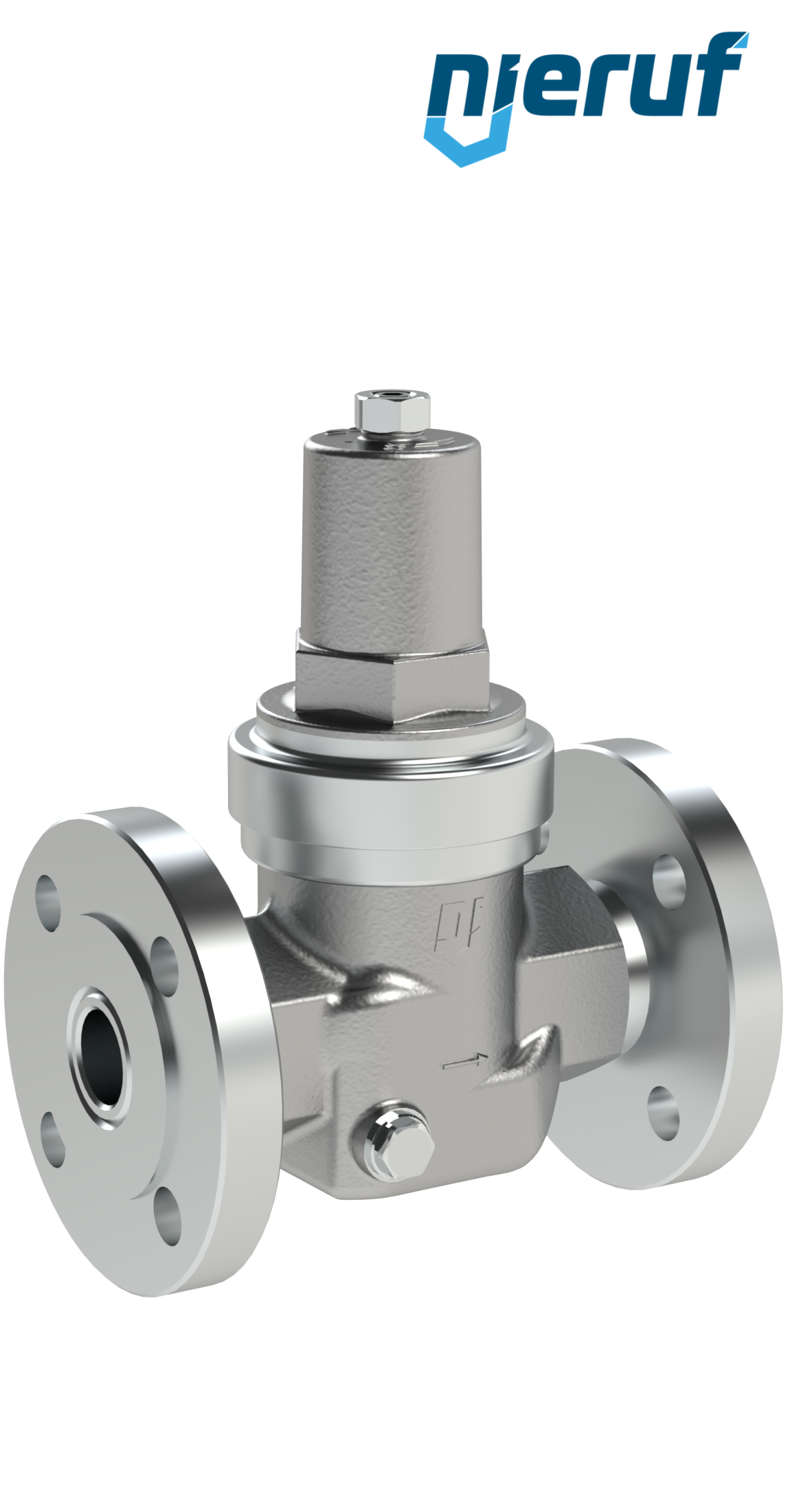

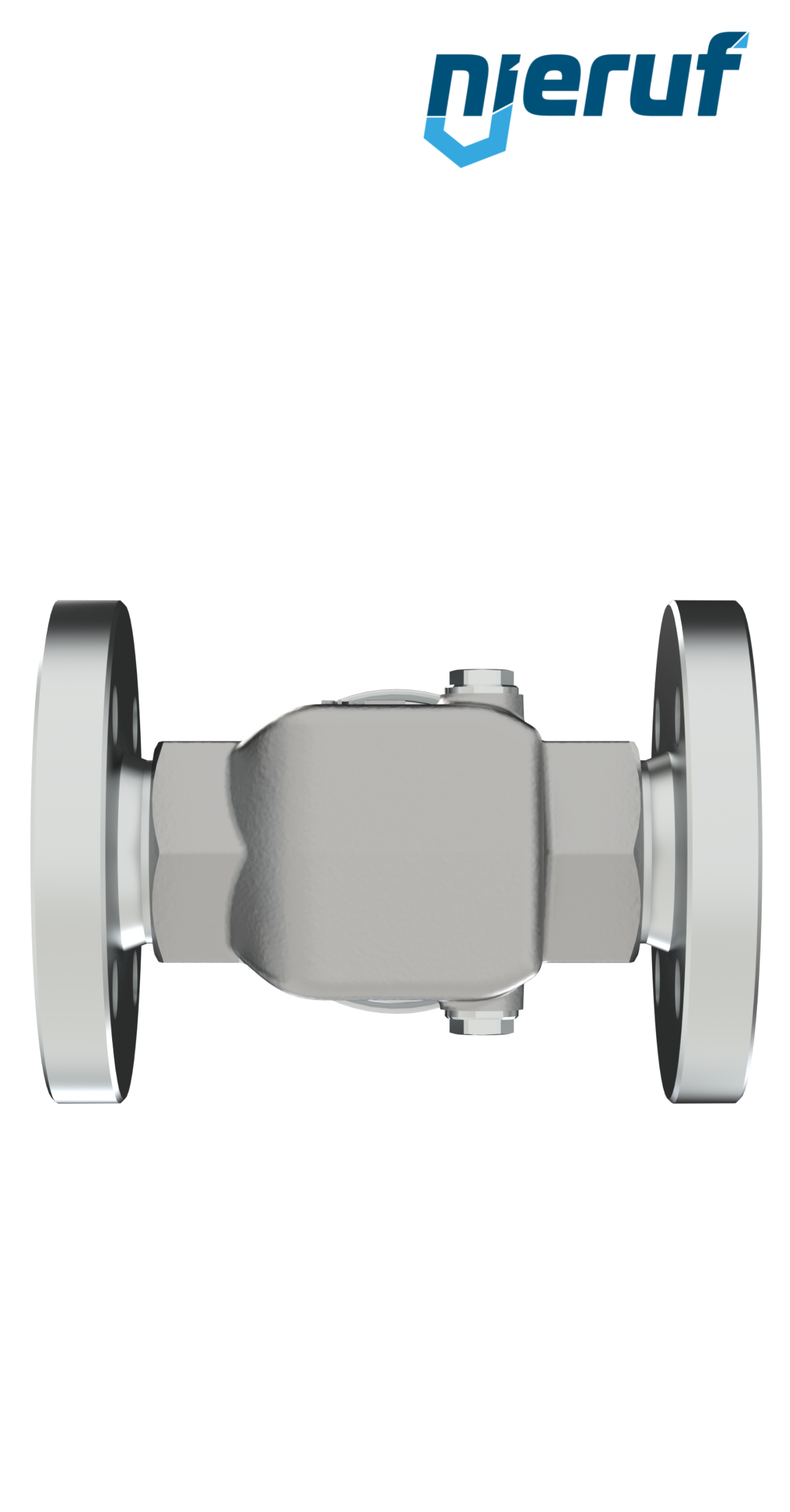

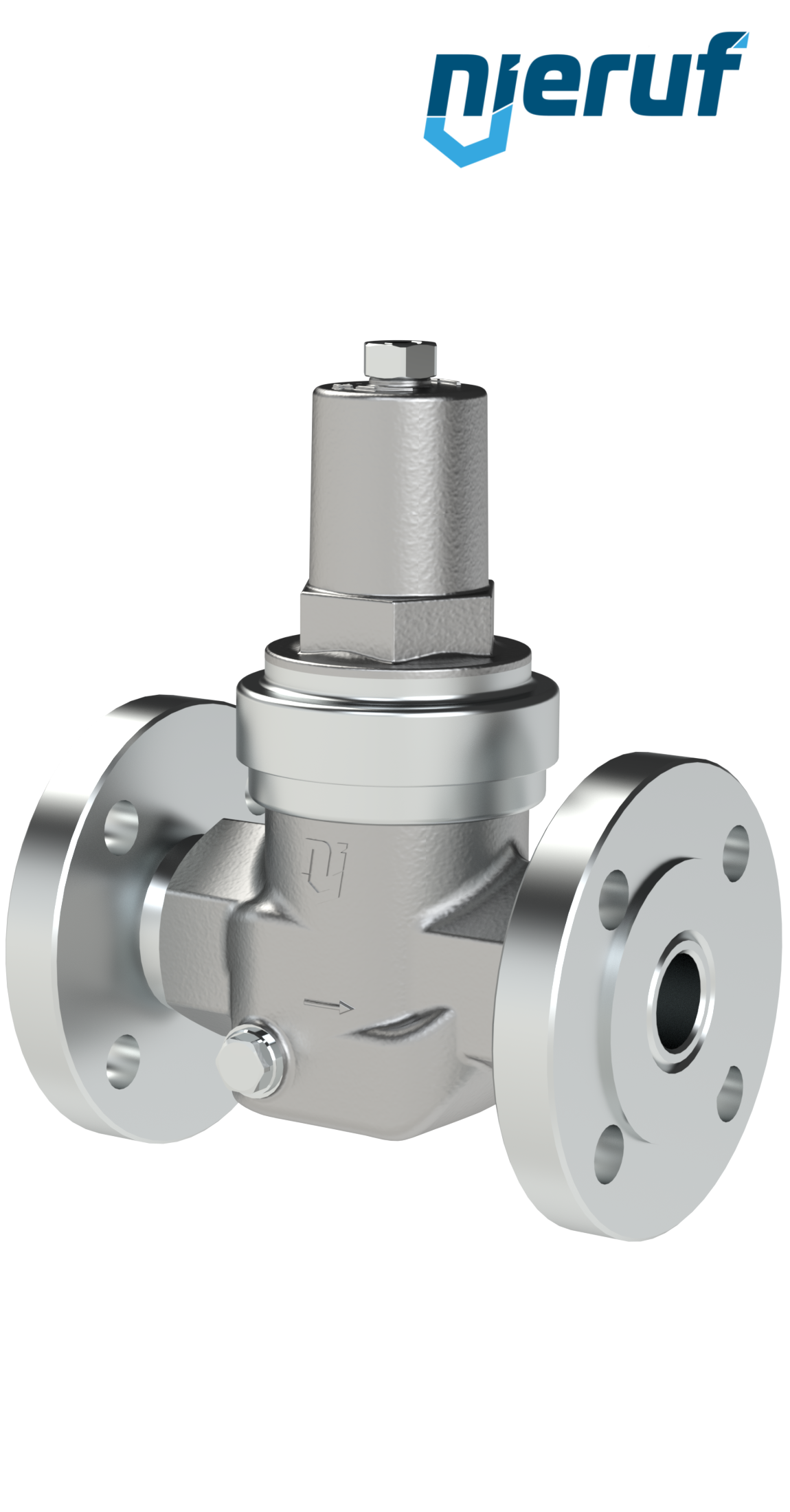

steam low pressure reducing valve DN20 type DM22 stainless steel PTFE / EPDM / FEPM 0.3 - 2.0 bar
Delivery time: 3 - 5 working days
Equipment
pressure gauge G 1/4" axial 63 mm stainless steel MM06 0 - 4,0 bar
€97.70 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
steam low pressure reducing valve DN20 flange ANSI 150 lbs RF made of stainless steel seal PTFE / EPDM / FEPM for steam and hot water, set pressure 0.3 - 2.0 bar
| product: | steam low pressure pressure reducing valve ANSI |
|---|---|
| type: | DM22 |
| manufacturer: | NieRuf |
| diameter: | DN20 |
| connection: | flange ANSI 150 lbs RF |
| material: | stainless steel |
| seal: | PTFE / EPDM / FEPM |
| media: | steam and hot water |
| temperature: | +20°C up to +200°C |
| range of adjustment: | 0.3 - 2.0 bar |
| max. inlet pressure: | 16 bar |
| design: | straightway form |
| installation position: | any position, preferably spring bonnet upside down |
| product feature: | High quality pressure reducing valve made of stainless steel for steam. This version has flanges acc. to ANSIan and is piston-controlled, spring-loaded and inlet pressure relieved. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
steam low pressure reducing valve DN20 type DM22 stainless steel PTFE / EPDM / FEPM 0.3 - 2.0 bar
Article no.
: DM22000104
product:
steam low pressure pressure reducing valve ANSI
type:
DM22
manufacturer:
NieRuf
diameter:
DN20
connection:
flange ANSI 150 lbs RF
material:
stainless steel
seal:
PTFE / EPDM / FEPM
media:
steam and hot water
temperature:
+20°C up to +200°C
range of adjustment:
0.3 - 2.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position, preferably spring bonnet upside down
product feature:
High quality pressure reducing valve made of stainless steel for steam. This version has flanges acc. to ANSIan and is piston-controlled, spring-loaded and inlet pressure relieved.
