DM21010003

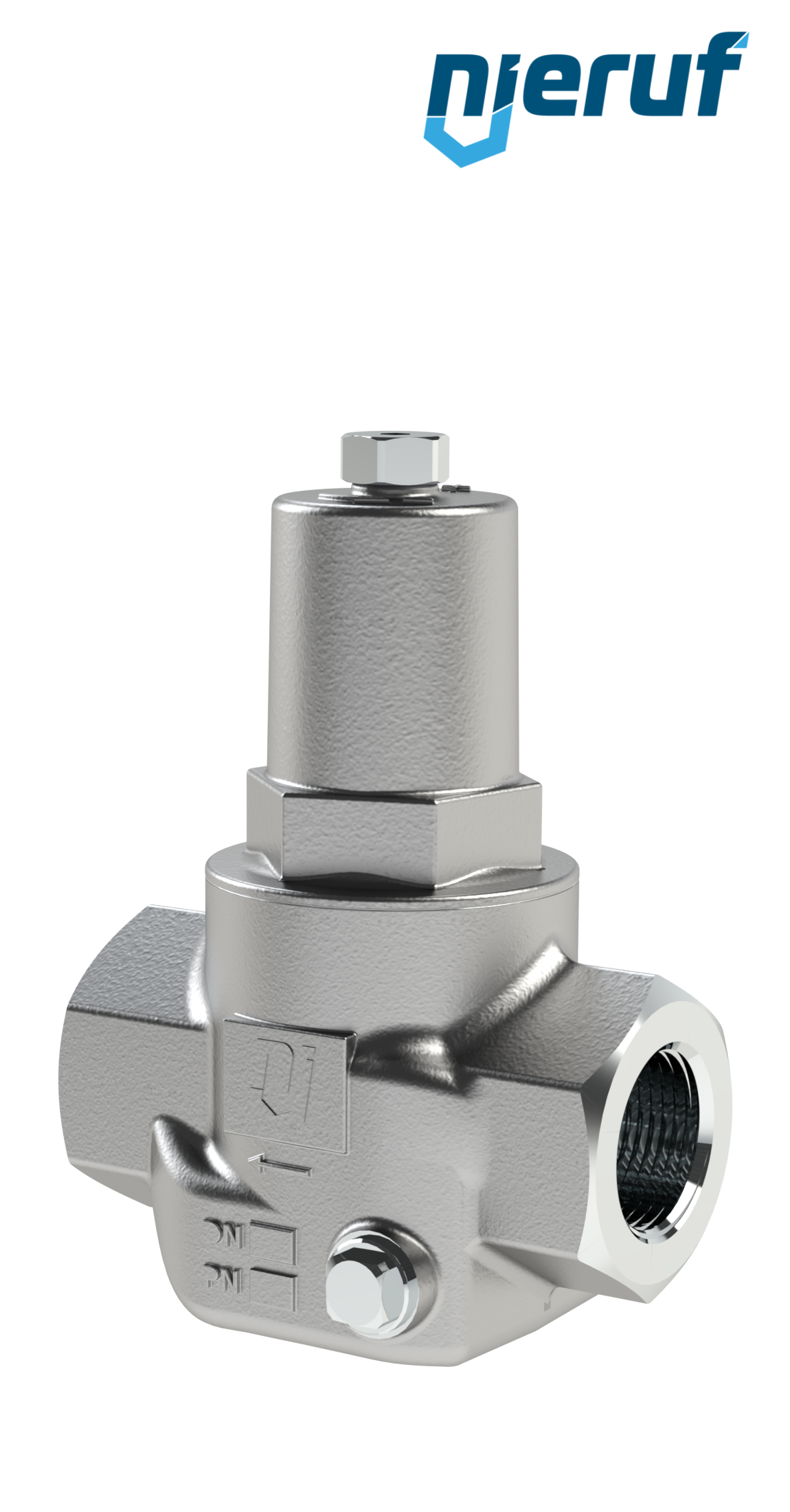

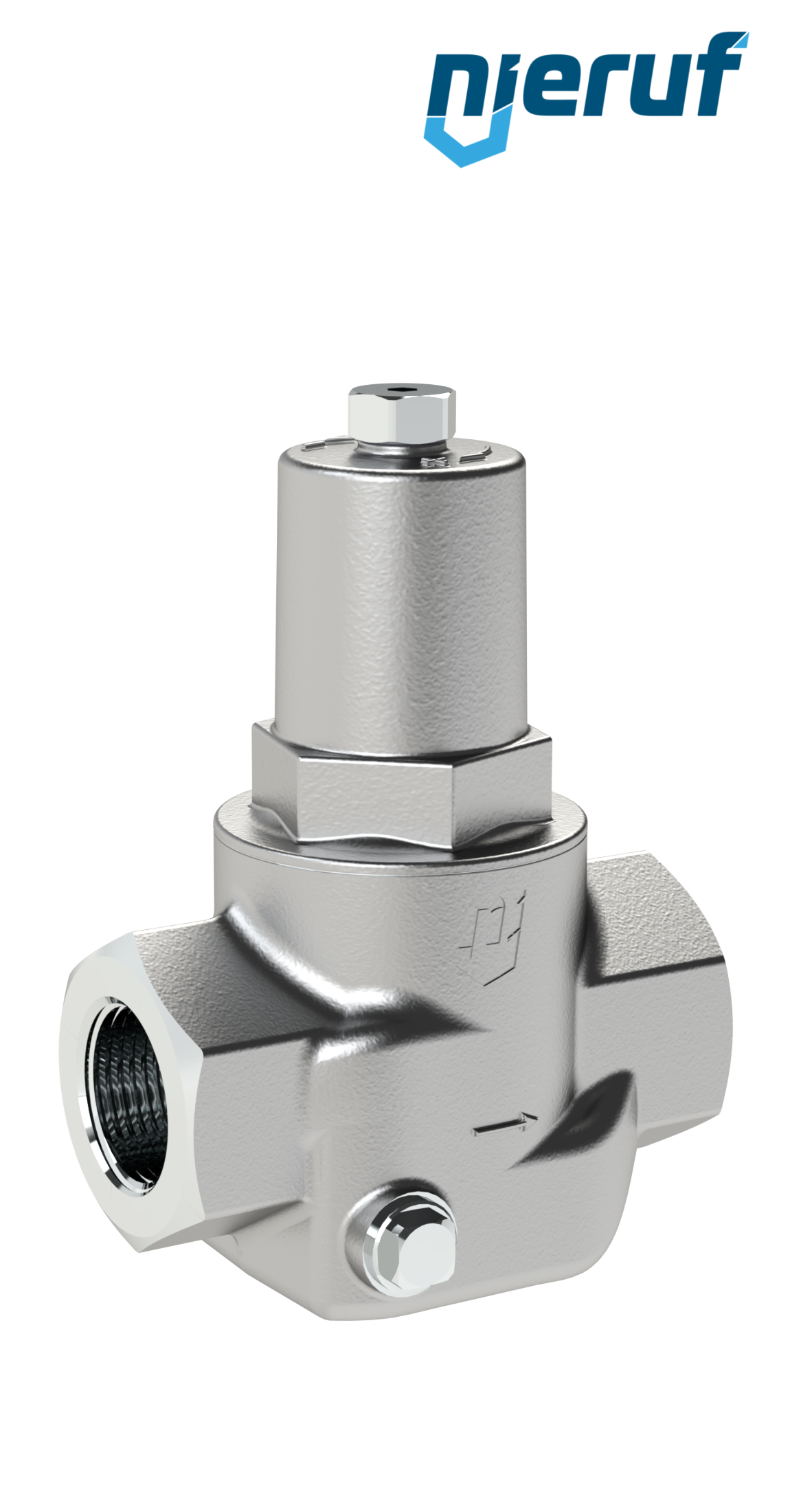

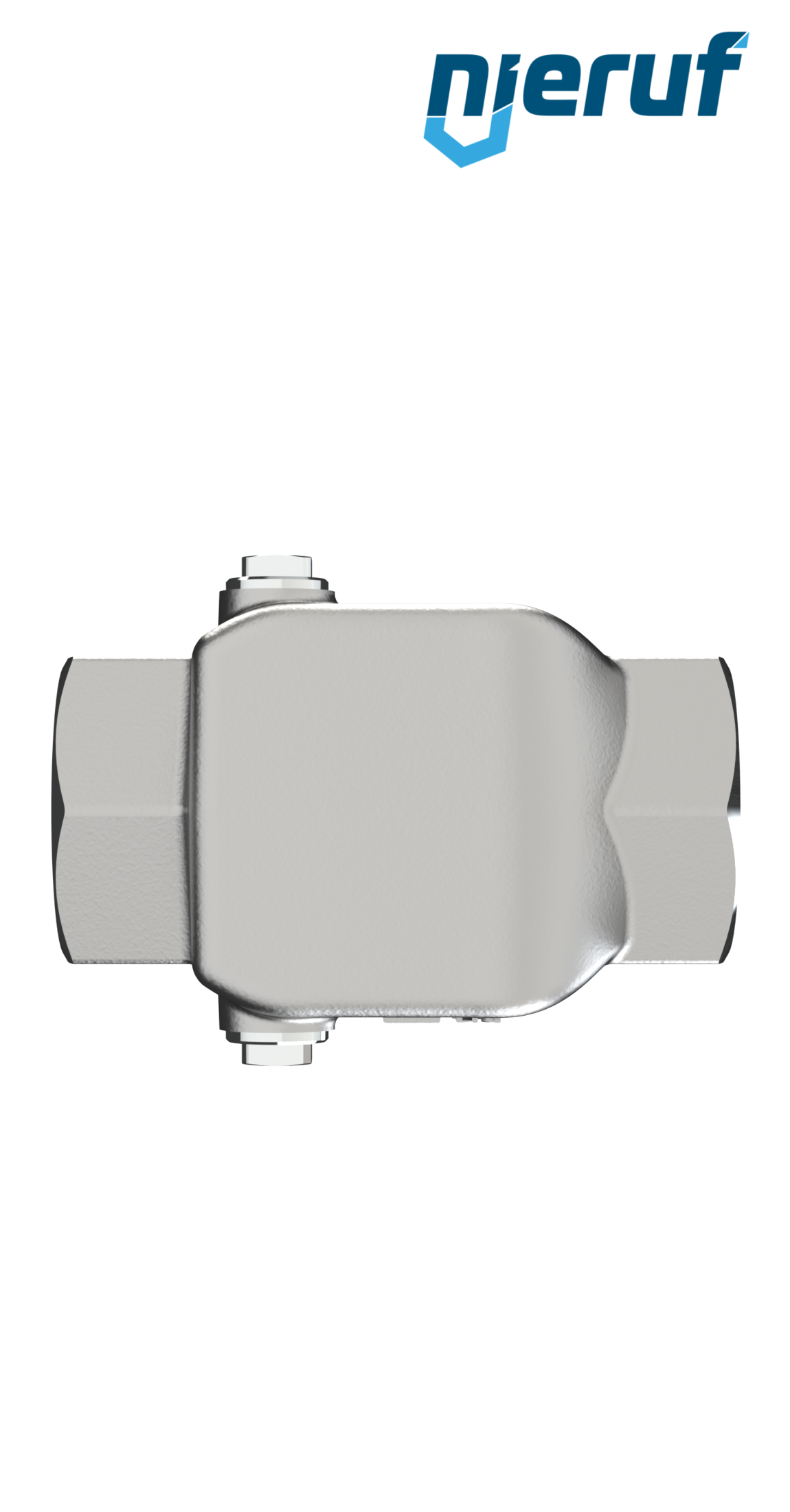

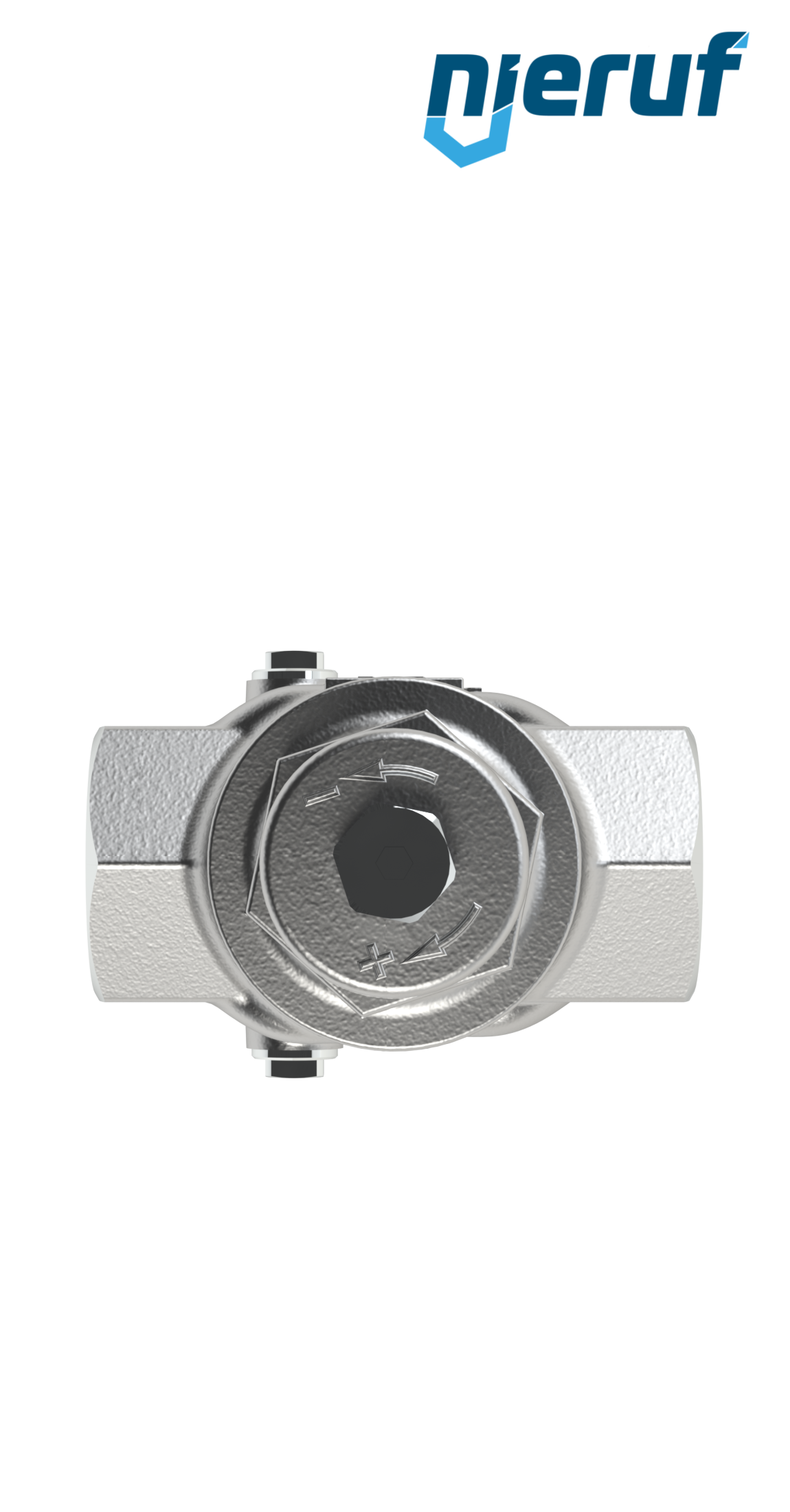

steam pressure reducing valve 1/2" Inch DM21 stainless steel PTFE / EPDM / FEPM 2.0 - 5.0 bar
- Delivery time
- 3 - 5 working days
Equipment
pressure gauge G 1/4" axial 63 mm stainless steel MM06 0 - 10,0 bar
€97.70 VAT included.
Questions about the article?
steam pressure reducing valve 1/2" Inch female thread made of stainless steel seal PTFE / EPDM / FEPM for steam and hot water, set pressure 2.0 - 5.0 bar
| product | steam pressure reducing valve |
|---|---|
| type | DM21 |
| manufacturer | NieRuf |
| diameter | 1/2" Inch |
| connection | female thread |
| material | stainless steel |
| seal | PTFE / EPDM / FEPM |
| media | steam and hot water |
| temperature | +20°C up to +200°C |
| range of adjustment | 2.0 - 5.0 bar |
| max. inlet pressure | 16 bar |
| design | straightway form |
| installation position | any position, preferably spring bonnet upside down |
| product feature | High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
steam pressure reducing valve 1/2" Inch DM21 stainless steel PTFE / EPDM / FEPM 2.0 - 5.0 bar
Article no.
: DM21010003
product:
steam pressure reducing valve
type:
DM21
manufacturer:
NieRuf
diameter:
1/2" Inch
connection:
female thread
material:
stainless steel
seal:
PTFE / EPDM / FEPM
media:
steam and hot water
temperature:
+20°C up to +200°C
range of adjustment:
2.0 - 5.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position, preferably spring bonnet upside down
product feature:
High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved.
