DM22010006

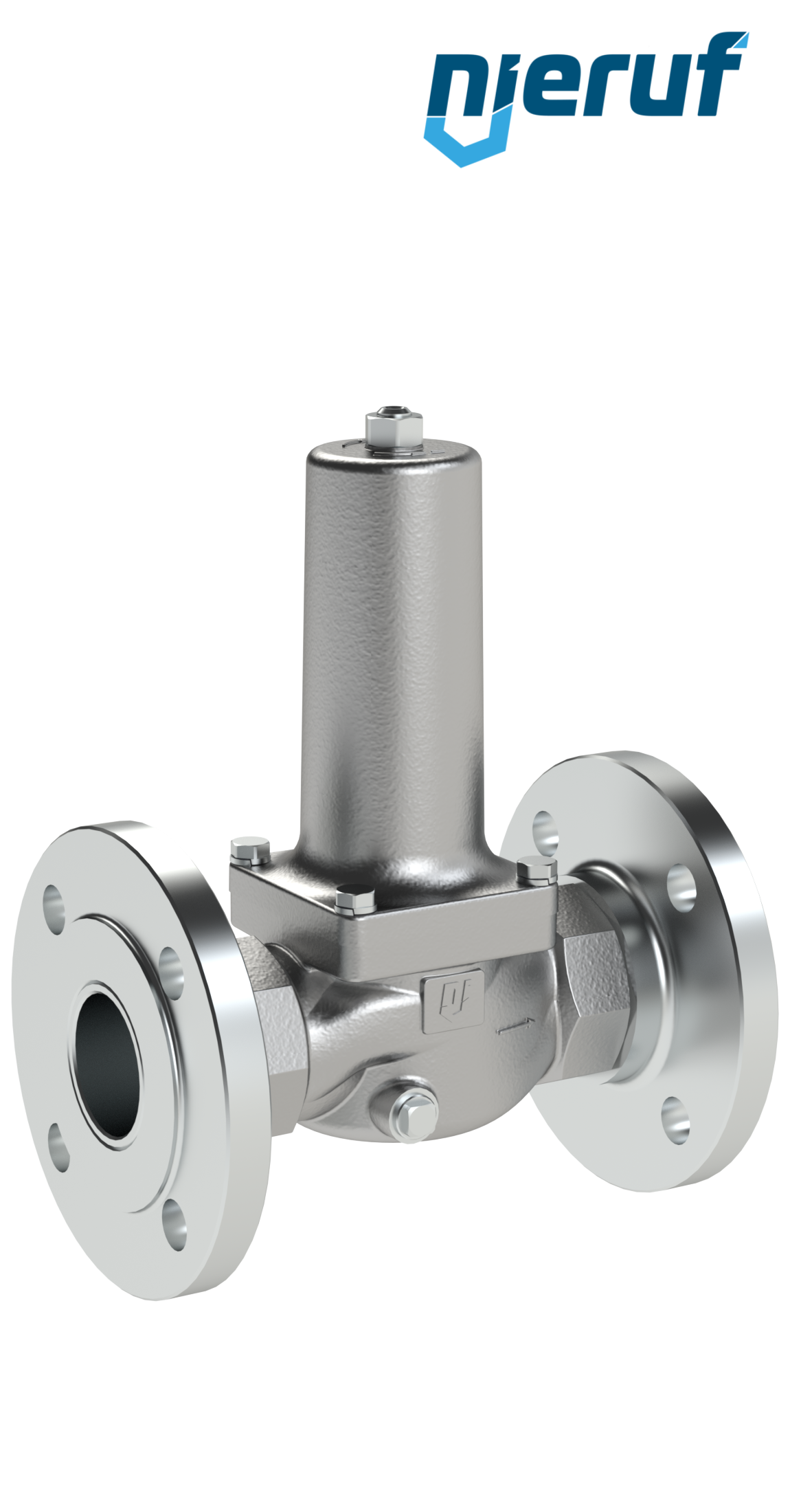

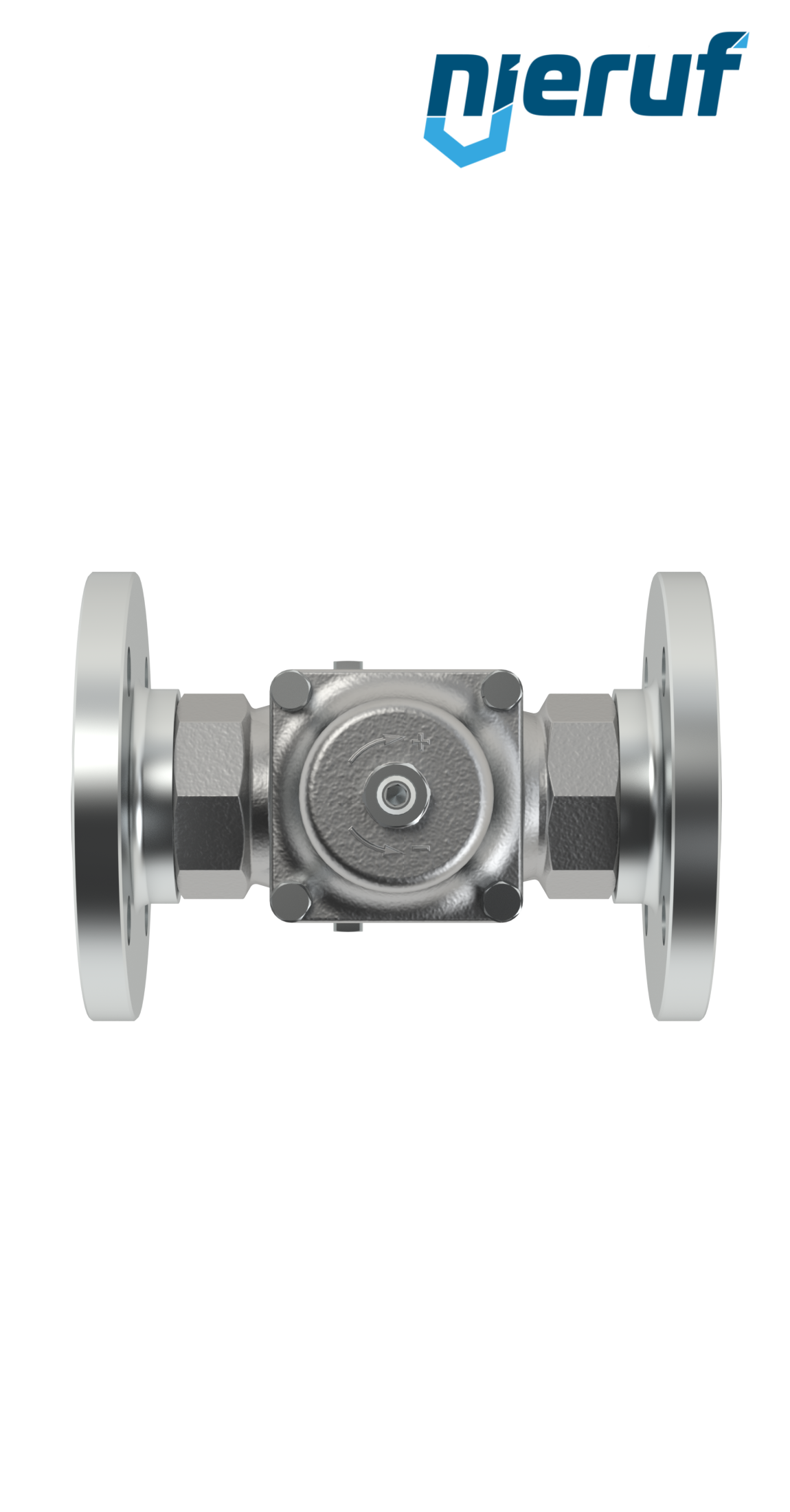

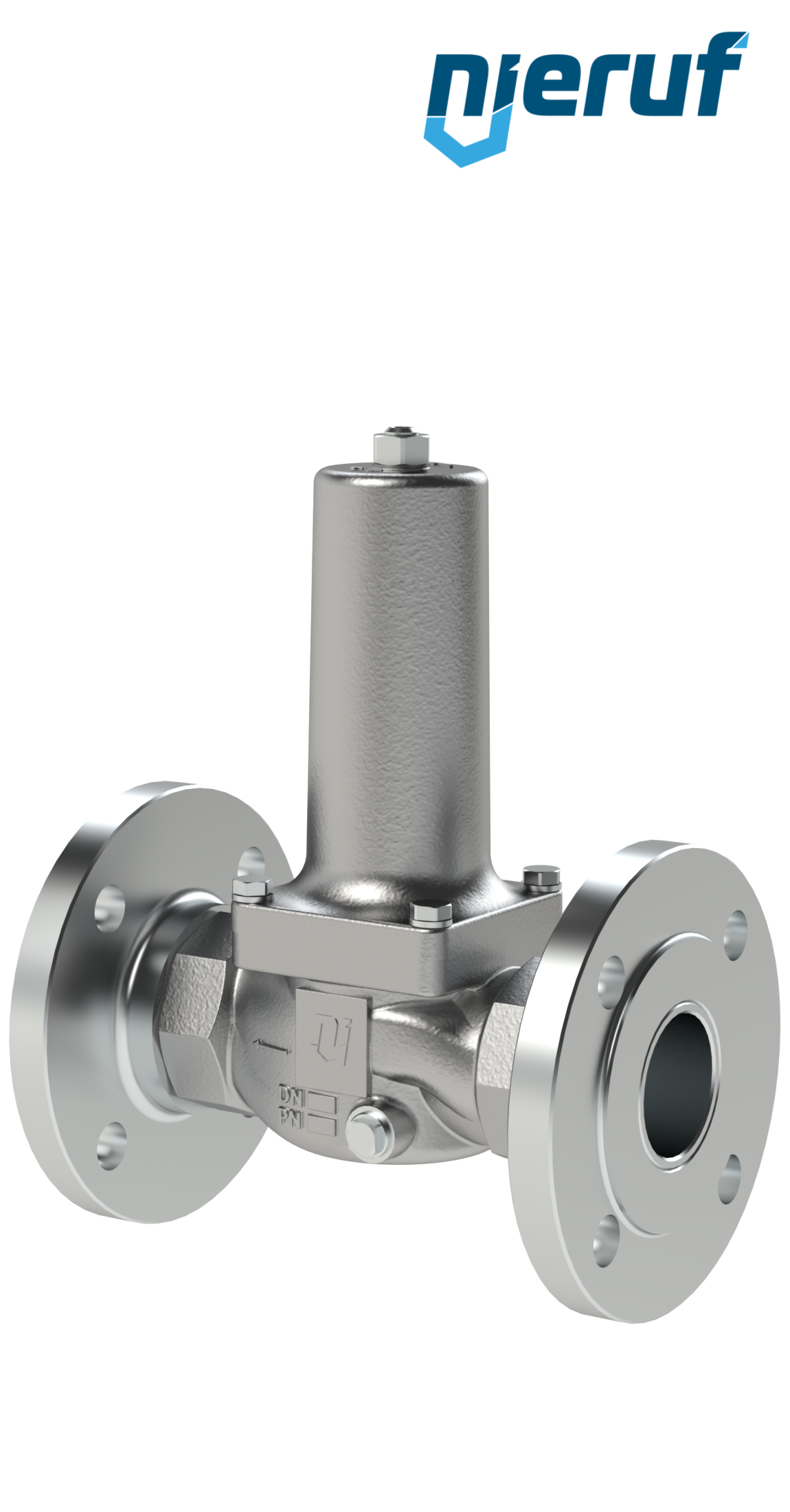

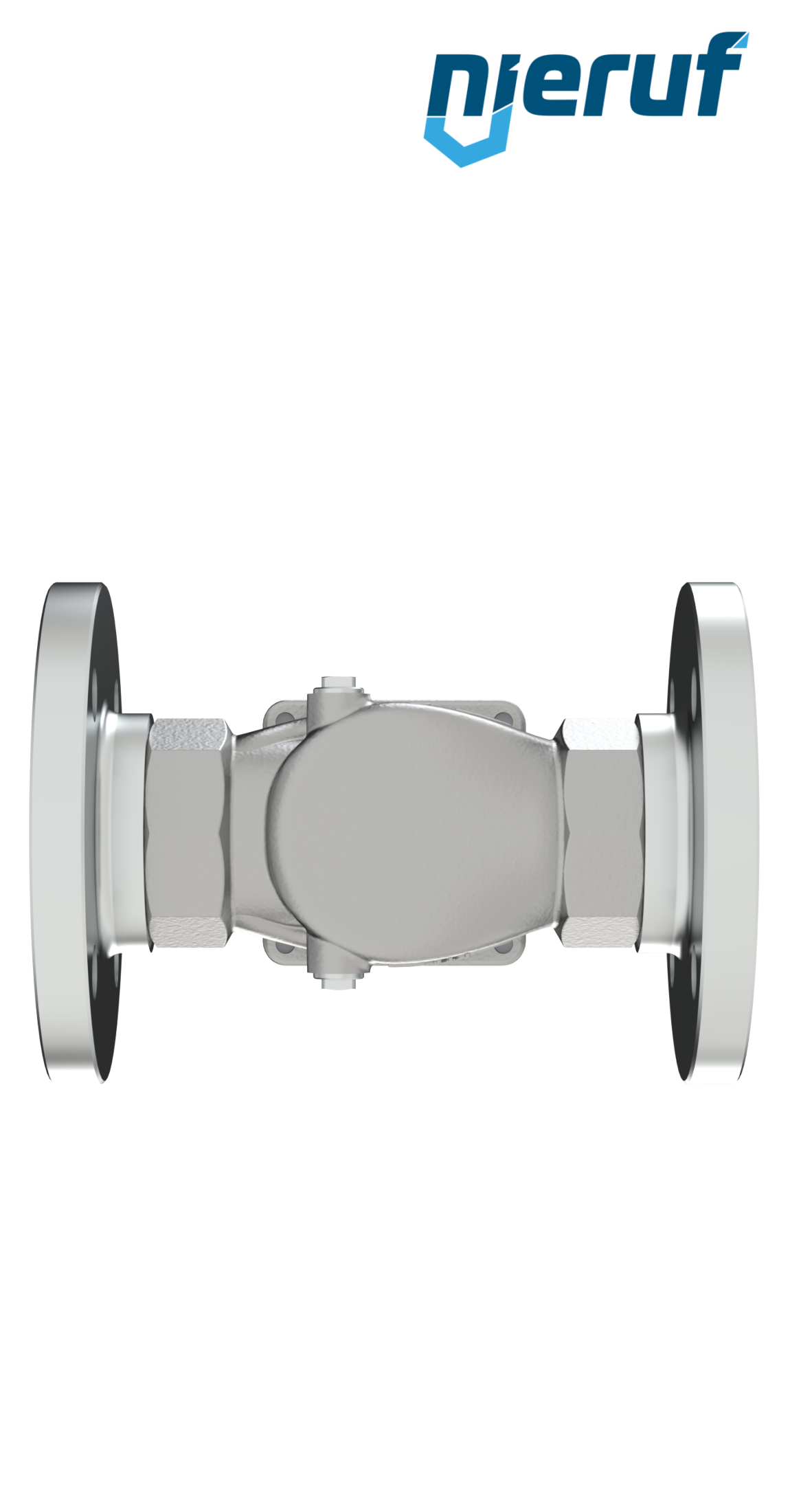

steam pressure reducing valve DN32 type DM22 stainless steel PTFE / EPDM / FEPM 2.0 - 5.0 bar
- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
pressure gauge G 1/4" axial 63 mm stainless steel MM06 0 - 10,0 bar
€97.70 VAT included.
Questions about the article?
steam pressure reducing valve DN32 flange acc. DIN EN 1092 made of stainless steel seal PTFE / EPDM / FEPM for steam and hot water, set pressure 2.0 - 5.0 bar
| product | steam pressure reducing valve |
|---|---|
| type | DM22 |
| manufacturer | NieRuf |
| diameter | DN32 |
| connection | flange acc. DIN EN 1092 |
| material | stainless steel |
| seal | PTFE / EPDM / FEPM |
| media | steam and hot water |
| temperature | +20°C up to +200°C |
| range of adjustment | 2.0 - 5.0 bar |
| max. inlet pressure | 16 bar |
| design | straightway form |
| installation position | any position, preferably spring bonnet upside down |
| product feature | High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
steam pressure reducing valve DN32 type DM22 stainless steel PTFE / EPDM / FEPM 2.0 - 5.0 bar
Article no.
: DM22010006
product:
steam pressure reducing valve
type:
DM22
manufacturer:
NieRuf
diameter:
DN32
connection:
flange acc. DIN EN 1092
material:
stainless steel
seal:
PTFE / EPDM / FEPM
media:
steam and hot water
temperature:
+20°C up to +200°C
range of adjustment:
2.0 - 5.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position, preferably spring bonnet upside down
product feature:
High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved.
