DM22000007

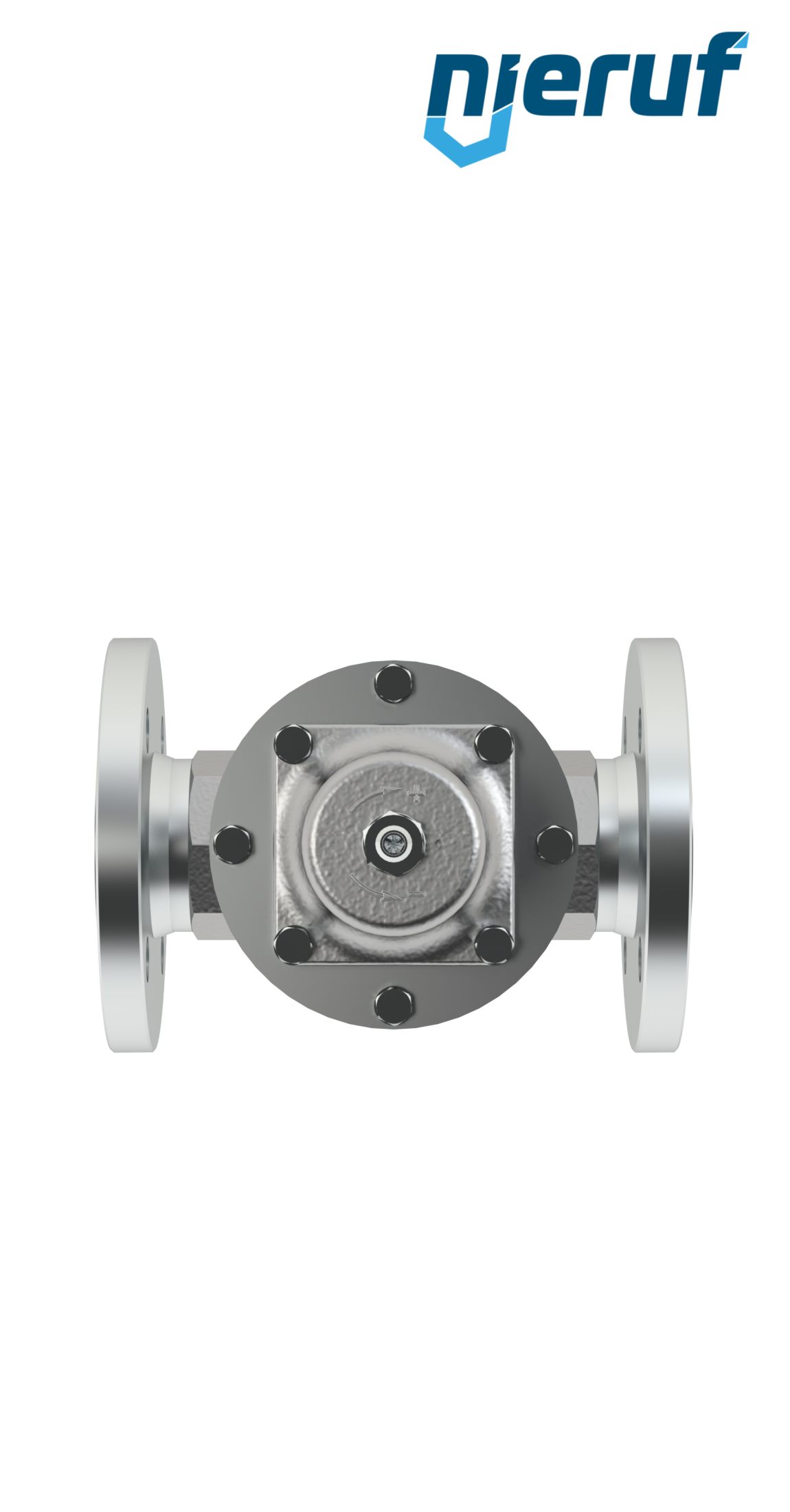

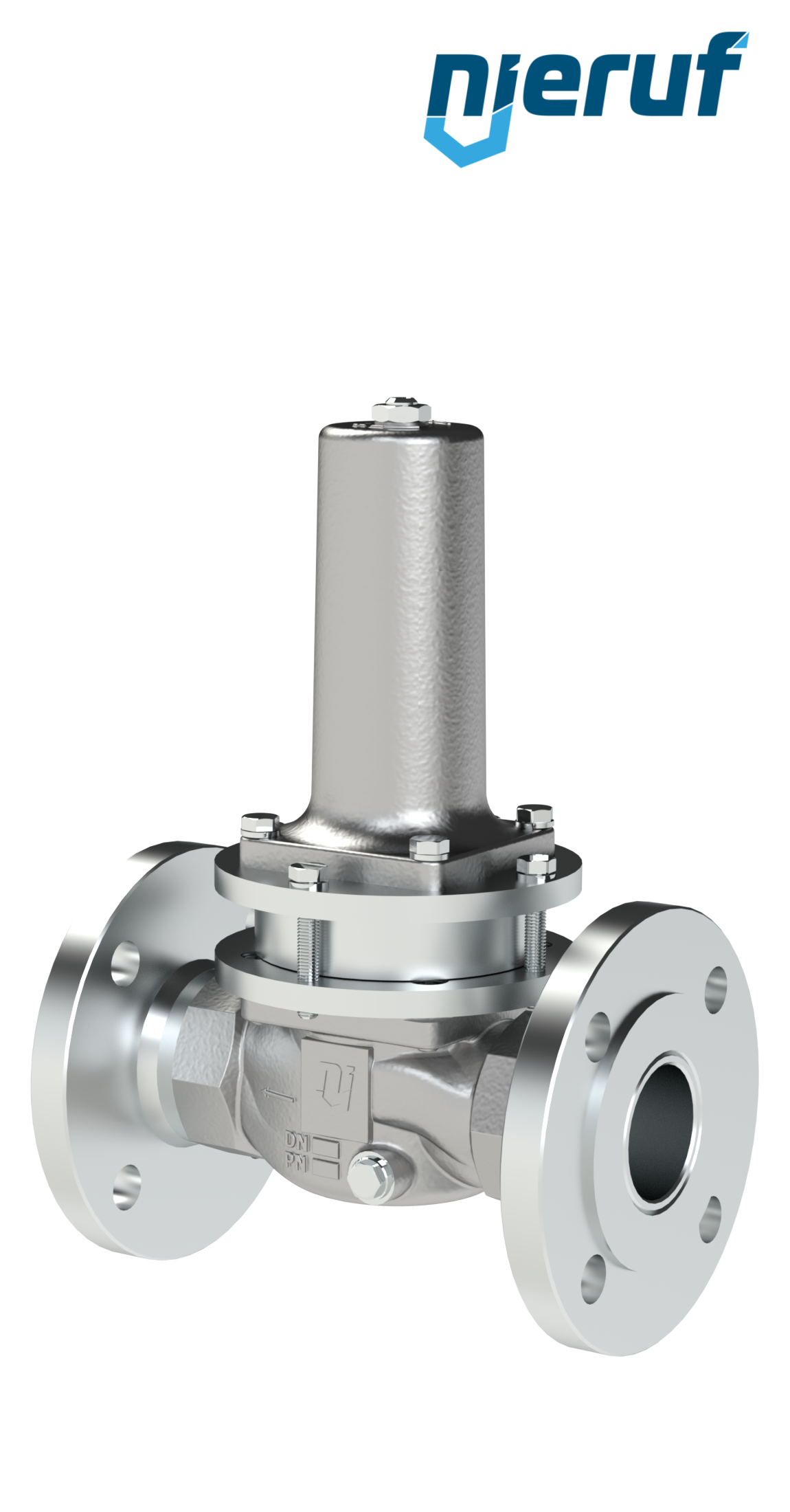

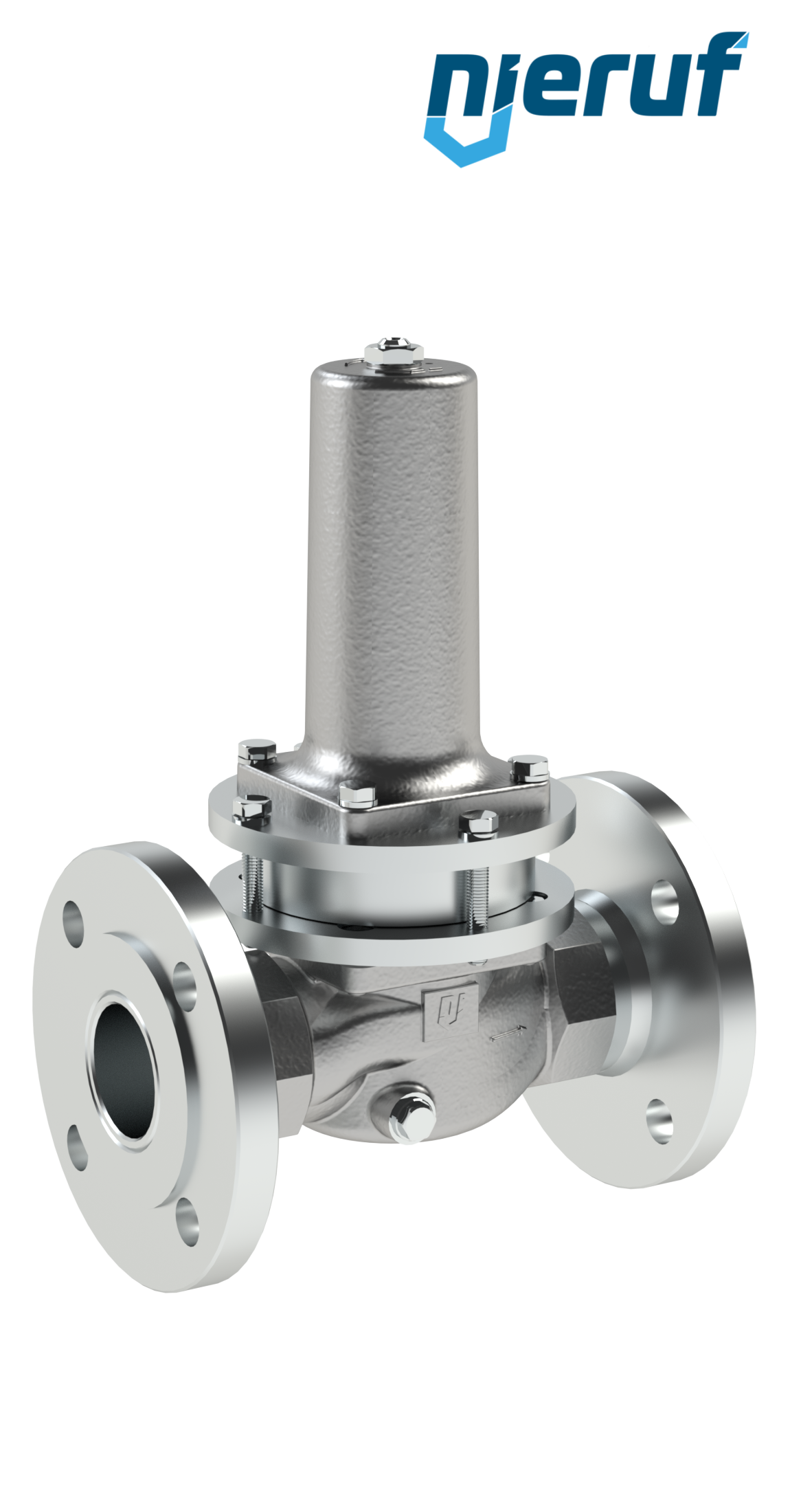

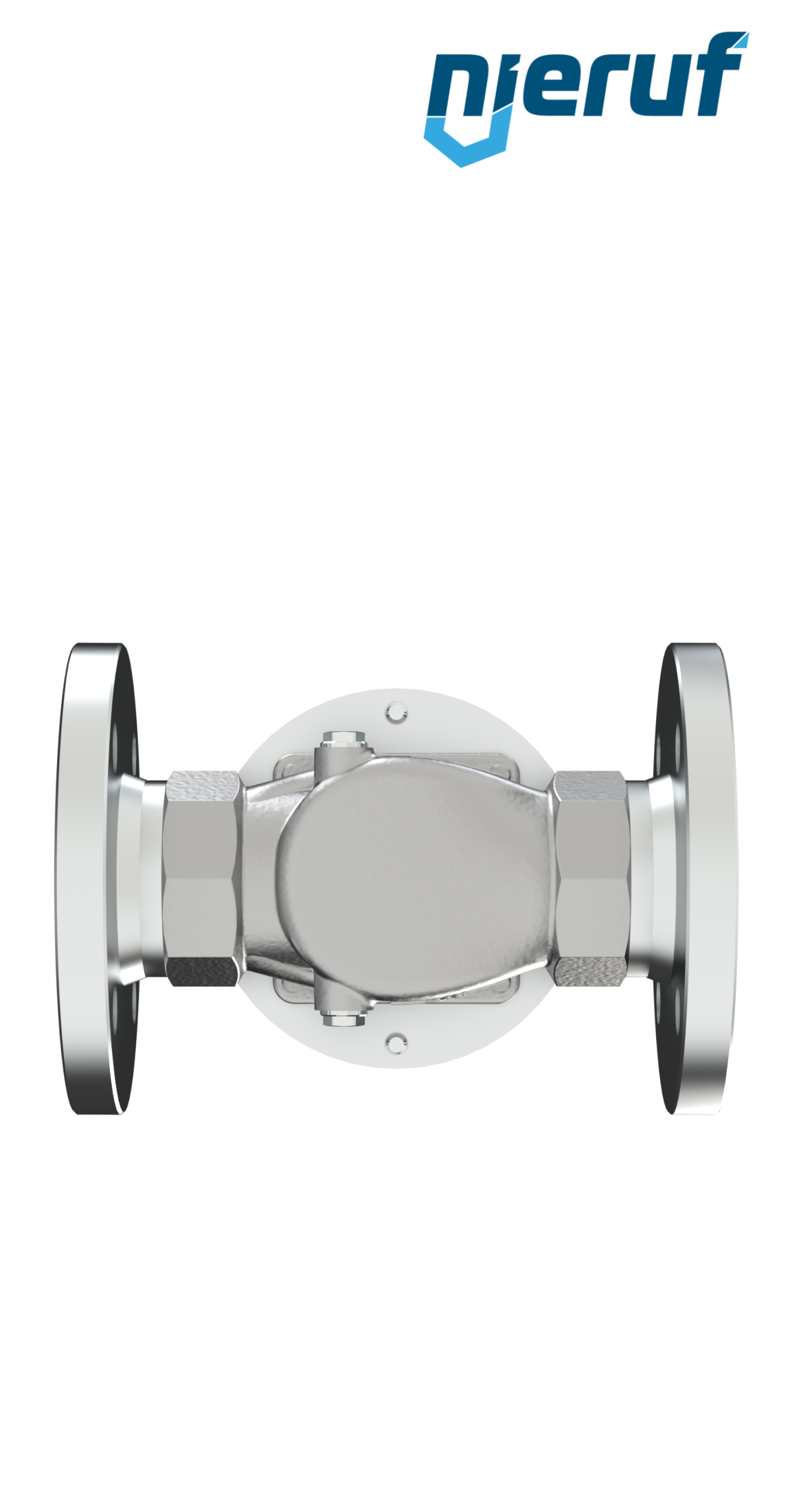

steam pressure reducing valve low pressure DN40 type DM22 stainless steel PTFE / EPDM / FEPM 0.3 - 2.0 bar
Delivery time: in stock
Express delivery*:
Shipping on: Thursday, 05. December
Guaranteed delivery until Friday, 06. December, 12 o'clock
Order in within by express delivery
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
pressure gauge G 1/4" axial 63 mm stainless steel MM06 0 - 4,0 bar
€92.82 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
steam pressure reducing valve low pressure DN40 flange acc. DIN EN 1092 made of stainless steel seal PTFE / EPDM / FEPM for steam and hot water, set pressure 0.3 - 2.0 bar
| product: | steam pressure reducing valve low pressure |
|---|---|
| type: | DM22 |
| manufacturer: | NieRuf |
| diameter: | DN40 |
| connection: | flange acc. DIN EN 1092 |
| material: | stainless steel |
| seal: | PTFE / EPDM / FEPM |
| media: | steam and hot water |
| temperature: | +20°C up to +200°C |
| range of adjustment: | 0.3 - 2.0 bar |
| max. inlet pressure: | 16 bar |
| design: | straightway form |
| installation position: | any position, preferably spring bonnet upside down |
| product feature: | High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
steam pressure reducing valve low pressure DN40 type DM22 stainless steel PTFE / EPDM / FEPM 0.3 - 2.0 bar
Article no.
: DM22000007
product:
steam pressure reducing valve low pressure
type:
DM22
manufacturer:
NieRuf
diameter:
DN40
connection:
flange acc. DIN EN 1092
material:
stainless steel
seal:
PTFE / EPDM / FEPM
media:
steam and hot water
temperature:
+20°C up to +200°C
range of adjustment:
0.3 - 2.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position, preferably spring bonnet upside down
product feature:
High quality pressure reducing valve made of stainless steel for steam. This version is piston-controlled, spring-loaded and inlet pressure relieved.
€92.82 VAT included.
€498.61 VAT included.
€2.86 VAT included.
€10.00 VAT included.
€54.15 VAT included.
