NV01010000
needle valve 1/8" inch NV01 steel (blue galvanized)
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

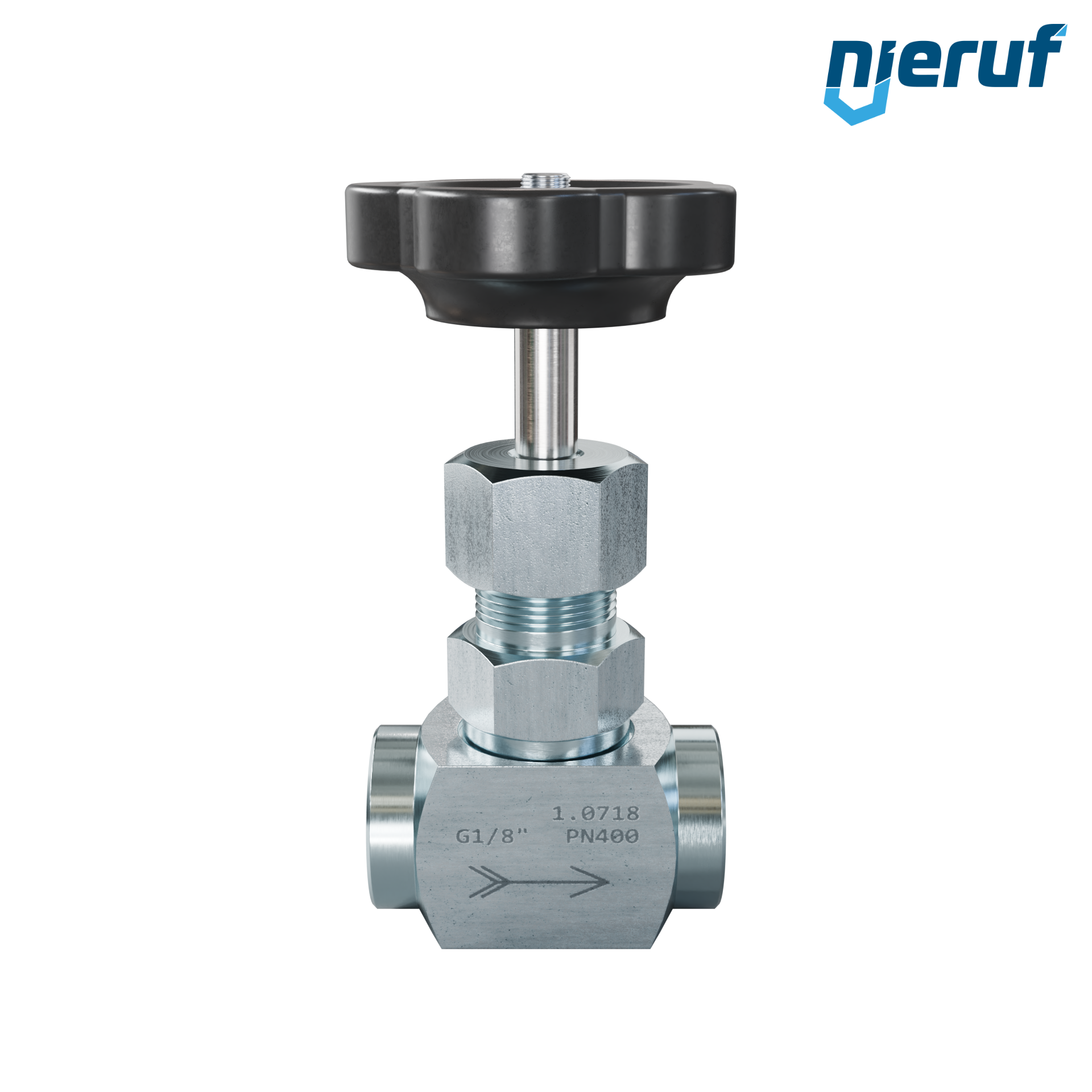

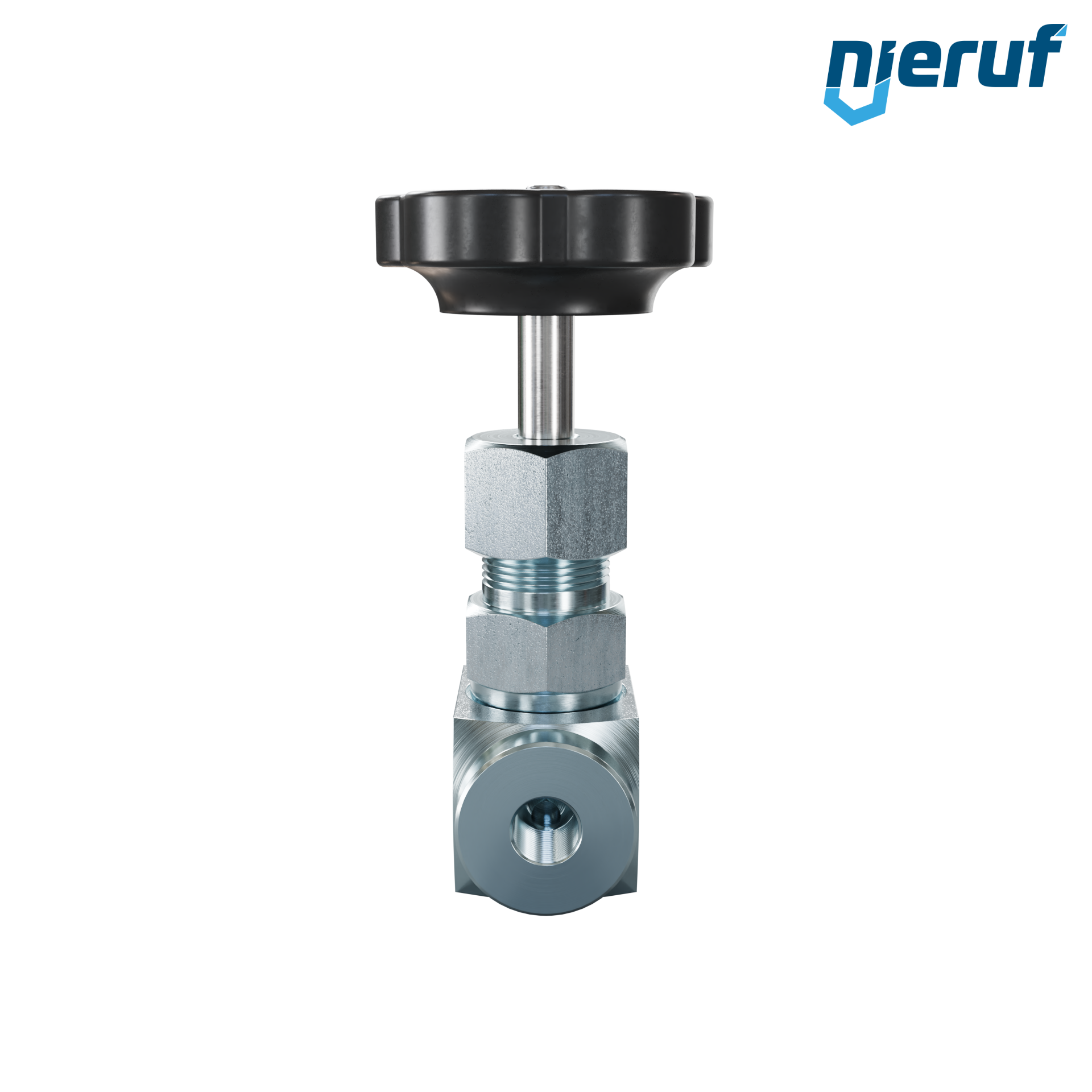

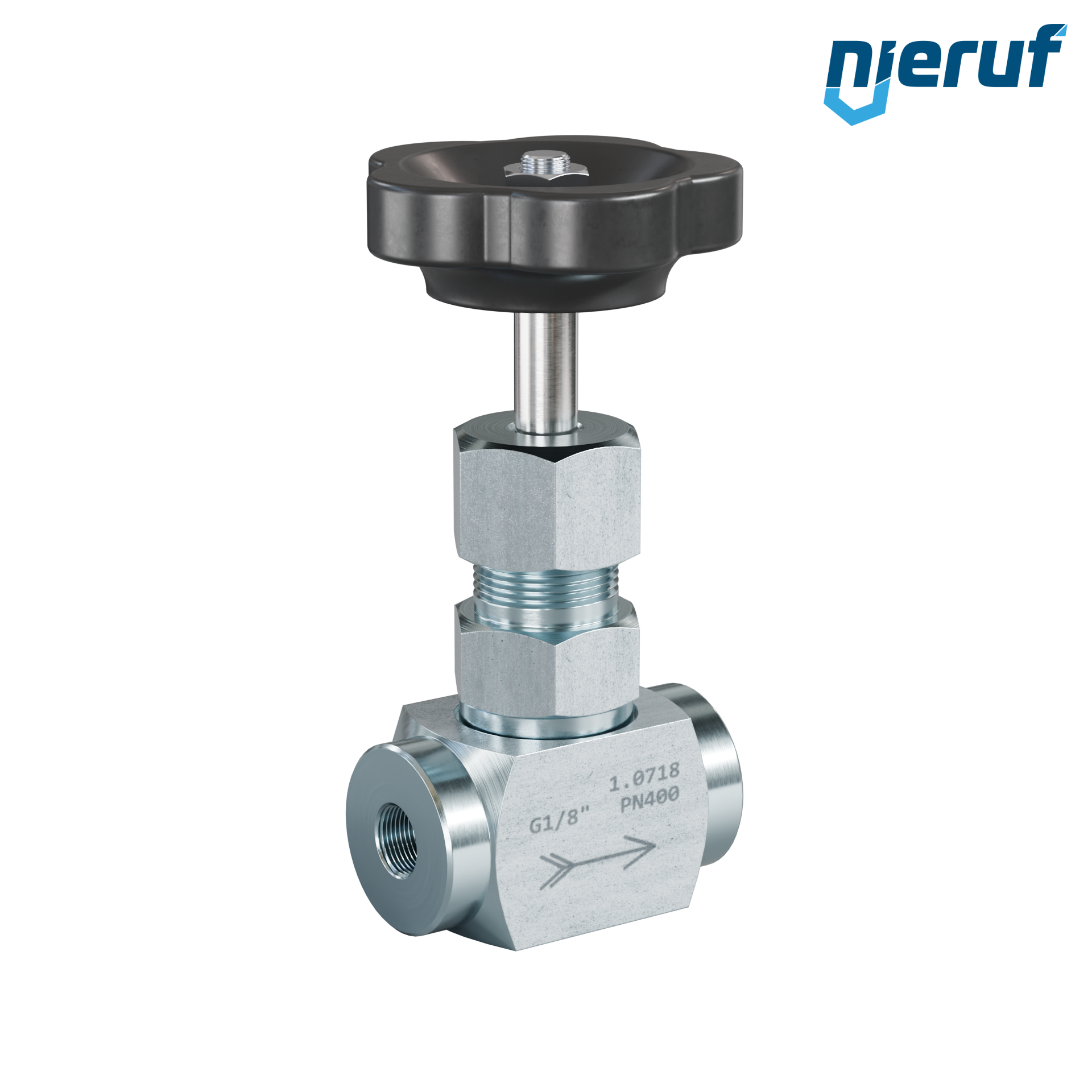

needle valve 1/8" inch block execution made of steel (blue galvanized) for liquid and gaseous media pressure up to max. 400 bar
| product: | needle valve |
|---|---|
| type: | NV01 |
| manufacturer: | NieRuf |
| design: | block execution |
| diameter: | 1/8" inch |
| connection: | female thread |
| material: | steel (blue galvanized) |
| material head: | steel (blue galvanized) |
| spindle: | stainless steel 1.4104 |
| handwheel: | plastic |
| seal: | Graphite |
| Kv-value m3/h: | 0,33 |
| media: | liquid and gaseous media |
| temperature: | up to max. +350°C |
| pressure range+DT:GA: | up to max. 400 bar |
| product feature: | For precise control of the media. Ideal for control a flow in the system. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
needle valve 1/8" inch NV01 steel (blue galvanized)
Article no.
: NV01010000
product:
needle valve
type:
NV01
manufacturer:
NieRuf
design:
block execution
diameter:
1/8" inch
connection:
female thread
material:
steel (blue galvanized)
material head:
steel (blue galvanized)
spindle:
stainless steel 1.4104
handwheel:
plastic
seal:
Graphite
Kv-value m3/h:
0,33
media:
liquid and gaseous media
temperature:
up to max. +350°C
pressure range+DT:GA:
up to max. 400 bar
product feature:
For precise control of the media. Ideal for control a flow in the system.
€1.67 VAT included.
