SZ02000004
strainer 3/4" inch brass type SZ02
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

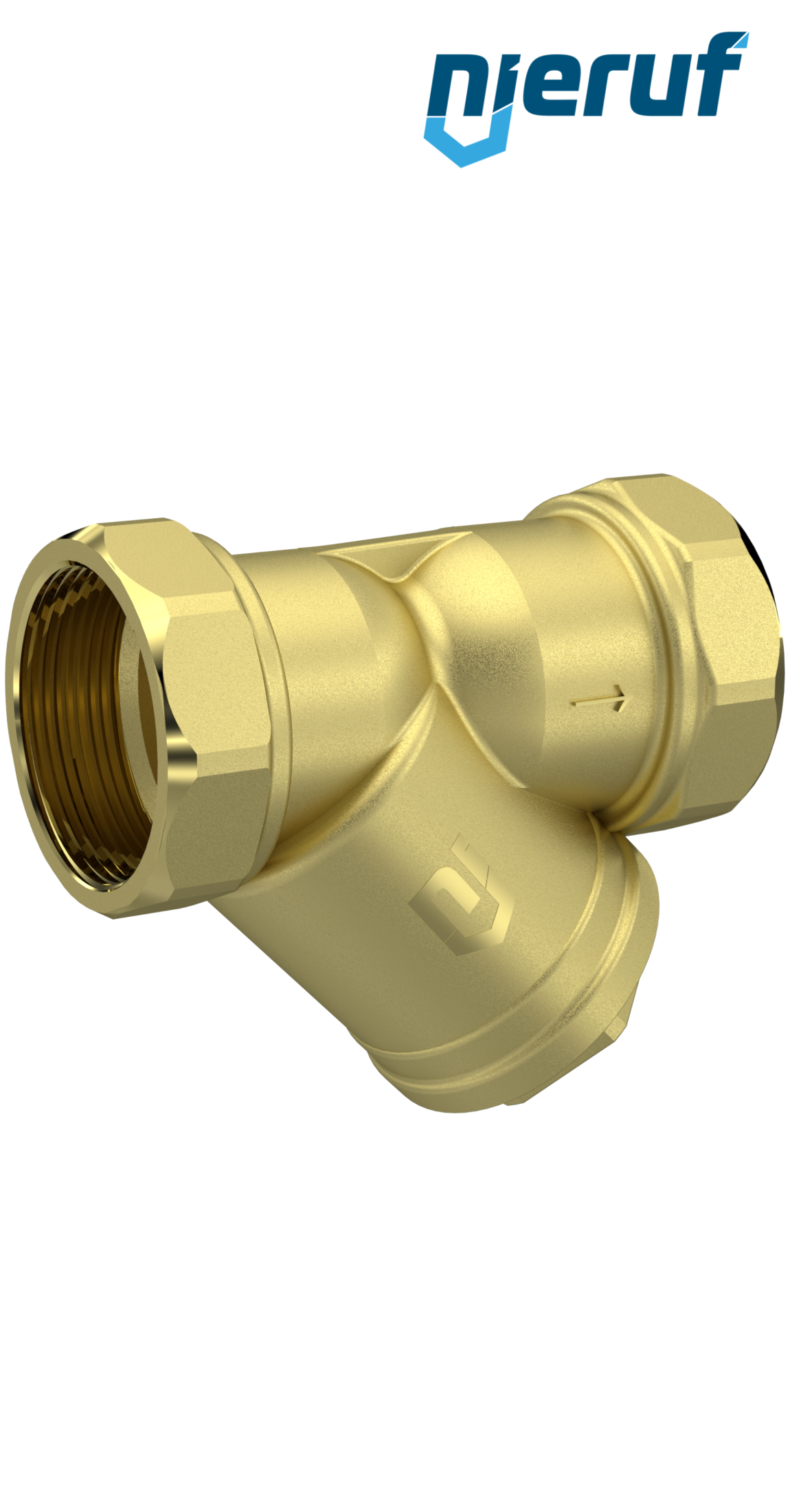

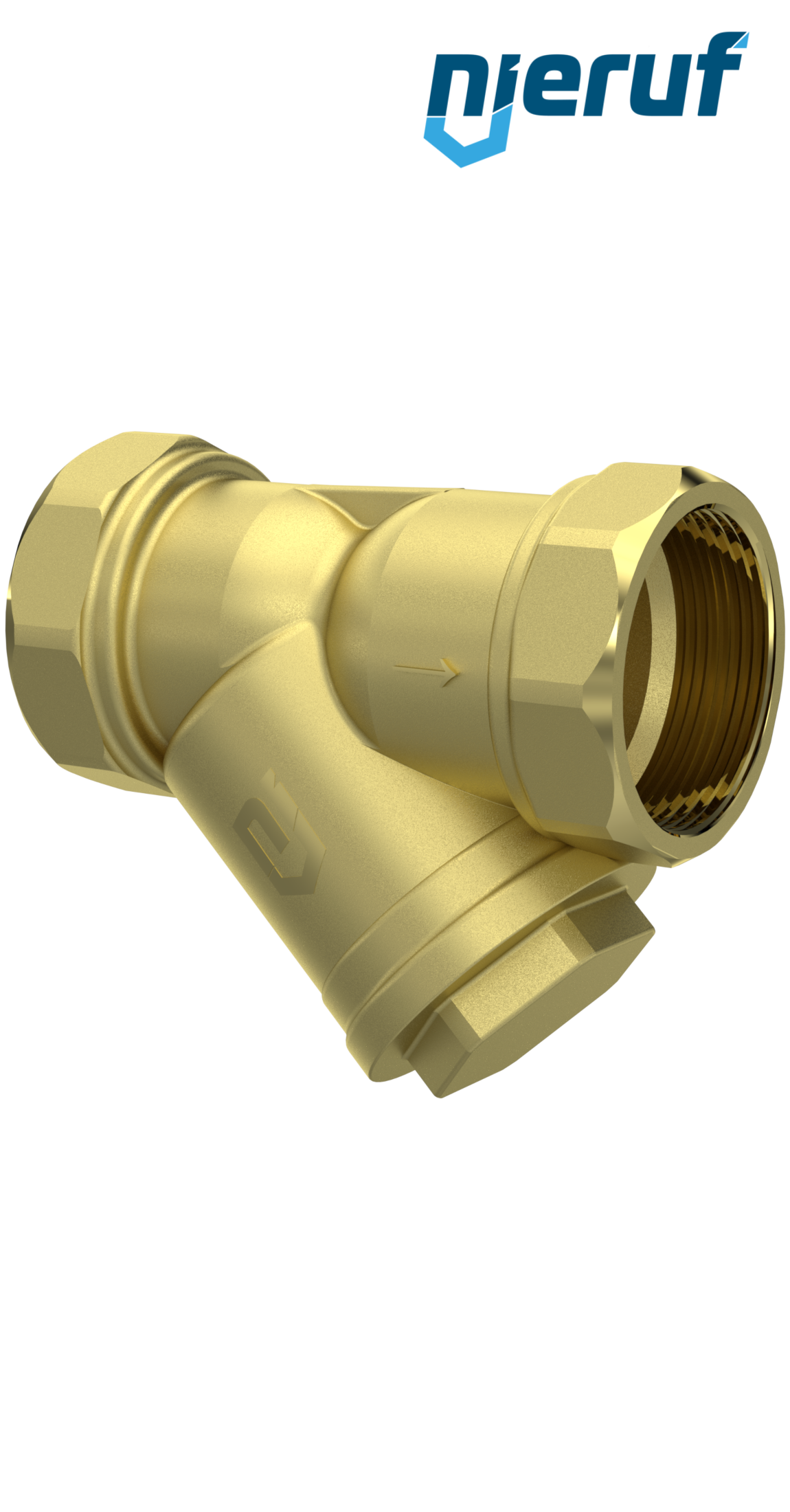

brass-strainer with 3/4" inch female thread BSP with EPDM-seal PN16 for water from -10°C up to +120°C
| product: | strainer |
|---|---|
| type: | SZ02 |
| manufacturer: | NieRuf |
| design: | Y-strainer |
| diameter: | 3/4" inch |
| connection: | female thread BSP |
| pressure: | PN16 |
| material: | brass CW 617N |
| mesh-material: | stainless steel 1.4301 |
| cap material: | brass CW 617N |
| seal: | EPDM |
| media: | water, drinking water |
| temperature: | -10°C up to +120°C |
| norm: | Directive 2014/68/EU: product excluded from directive (article 1 § 2.b) |
| mesh: | 0,85 mm |
| installation position: | horizontal or vertical position with descendant fluid |
| product feature: | Y-strainer made of brass, thread with removable stainless steel filter, horizontal or vertical position. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
strainer 3/4" inch brass type SZ02
Article no.
: SZ02000004
product:
strainer
type:
SZ02
manufacturer:
NieRuf
design:
Y-strainer
diameter:
3/4" inch
connection:
female thread BSP
pressure:
PN16
material:
brass CW 617N
mesh-material:
stainless steel 1.4301
cap material:
brass CW 617N
seal:
EPDM
media:
water, drinking water
temperature:
-10°C up to +120°C
norm:
Directive 2014/68/EU: product excluded from directive (article 1 § 2.b)
mesh:
0,85 mm
installation position:
horizontal or vertical position with descendant fluid
product feature:
Y-strainer made of brass, thread with removable stainless steel filter, horizontal or vertical position.
€3.45 VAT included.
€5.59 VAT included.
€23.68 VAT included.
€11.19 VAT included.
