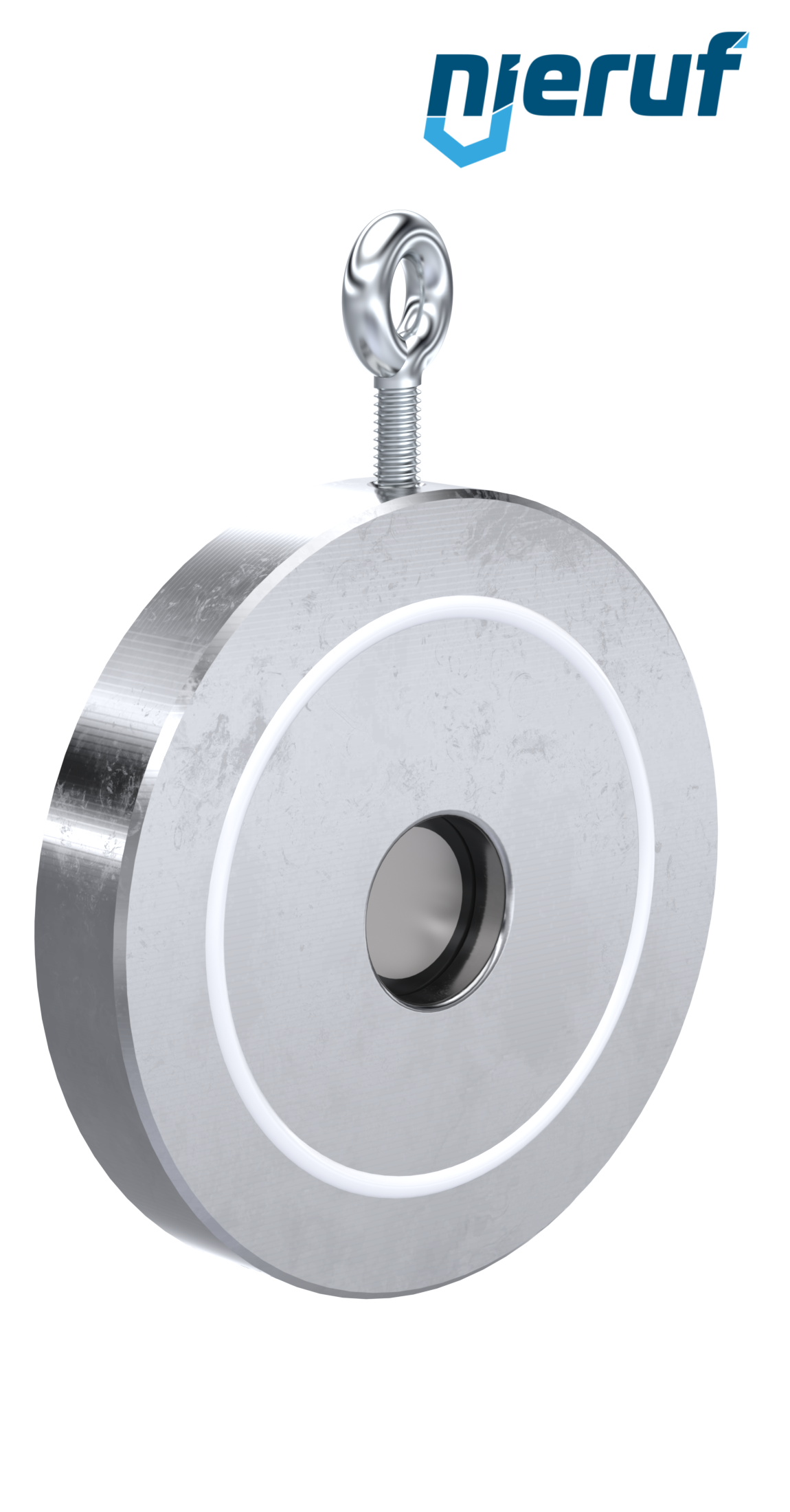

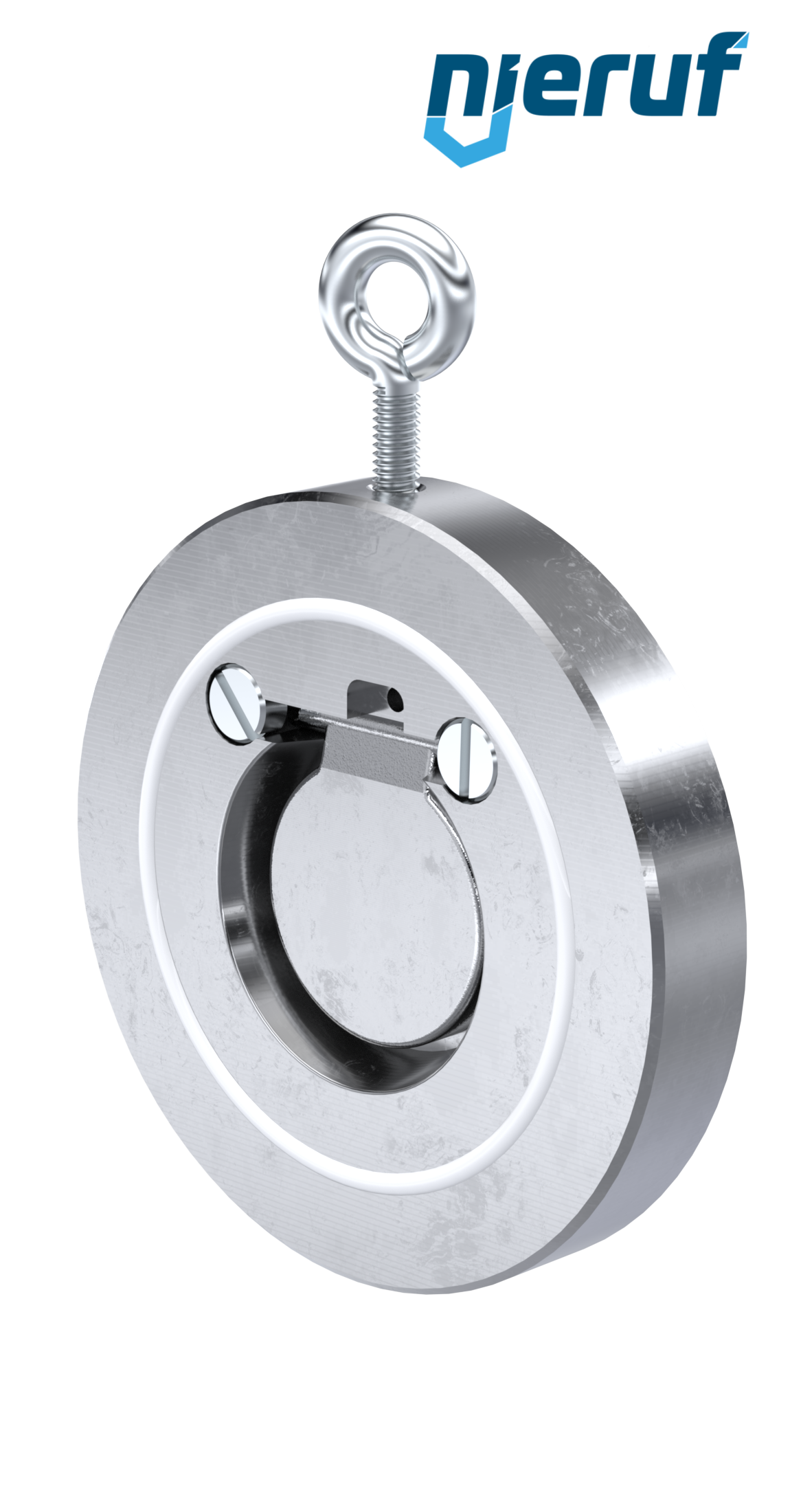

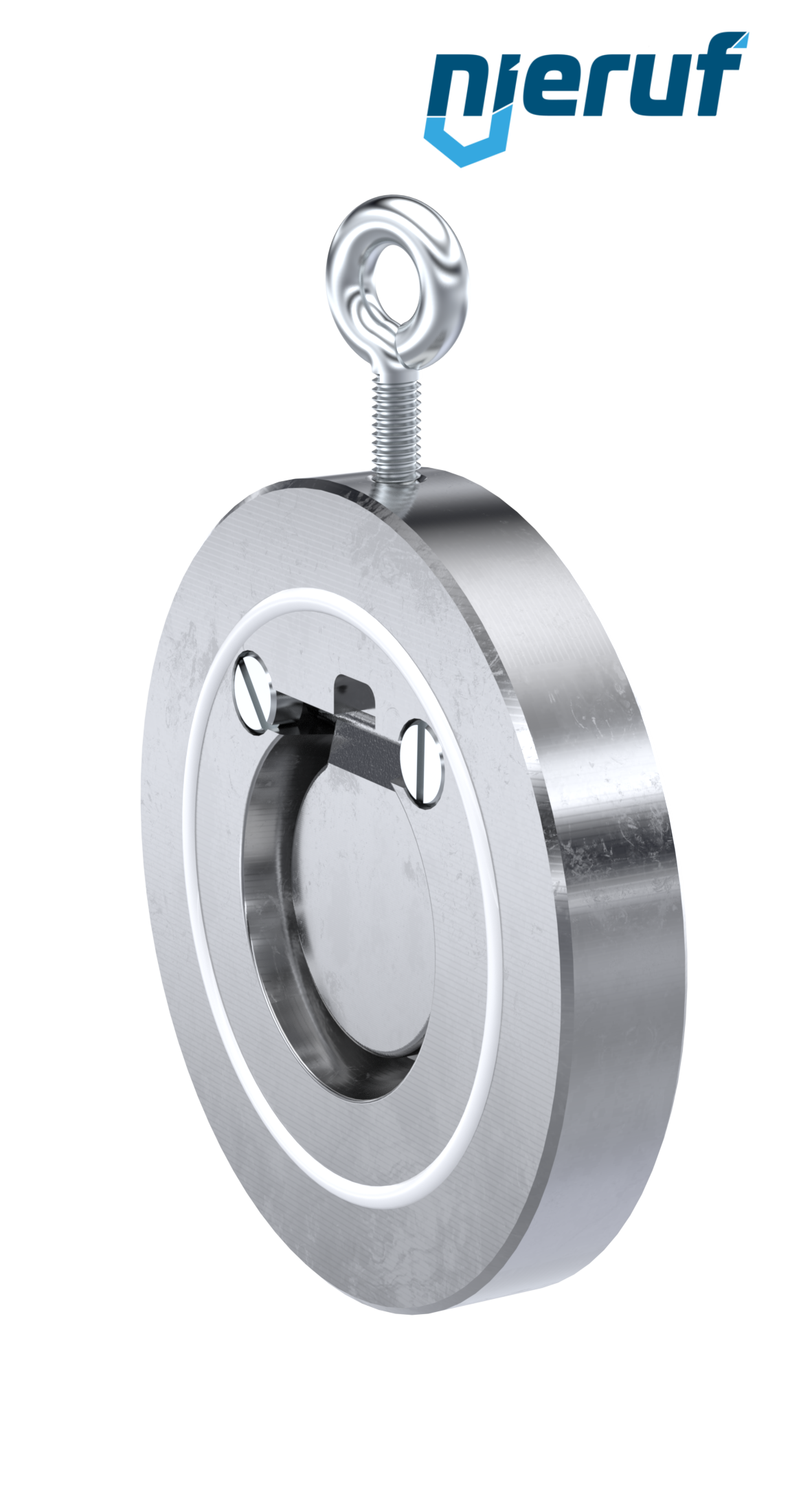

swing check valve DN40 ASME B16.5 / ANSI 150 made of steel 1.0460 / A 105, zinc plated seal PTFE for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR01 ANSI 150 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN40 |
| body material | steel 1.0460 / A 105, zinc plated |
| disc material | steel A 216 WCB / A 105, zinc plated |
| seal | PTFE |
| temperature | -10°C up to +250°C |
| connection | flange |
| flange | ASME B16.5 / ANSI 150 |
| pressure range | 0 - 40 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN40 ZR01 ANSI 150 steel 1.0460 / A 105, zinc plated PTFE
Article no.
: ZR01100307
product:
swing check valve
type:
ZR01 ANSI 150
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN40
body material:
steel 1.0460 / A 105, zinc plated
disc material:
steel A 216 WCB / A 105, zinc plated
seal:
PTFE
temperature:
-10°C up to +250°C
connection:
flange
flange:
ASME B16.5 / ANSI 150
pressure range:
0 - 40 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
