TM01012003.10
temperature gauge -40°C - +60°C G 1/2" B Sensor 150 mm 2-wire: 4-20mA 10 mm
Delivery time: 2 - 3 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you

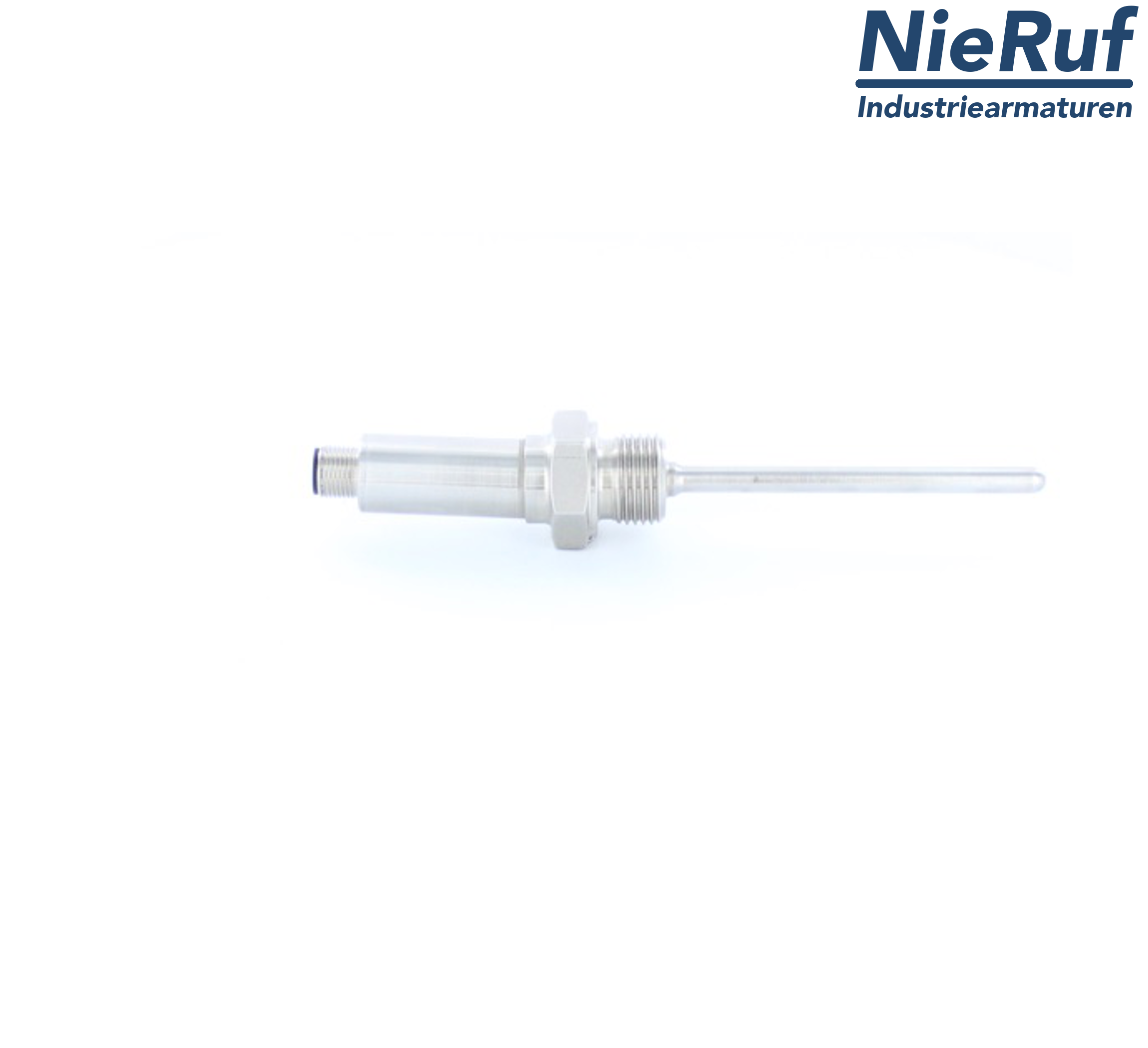

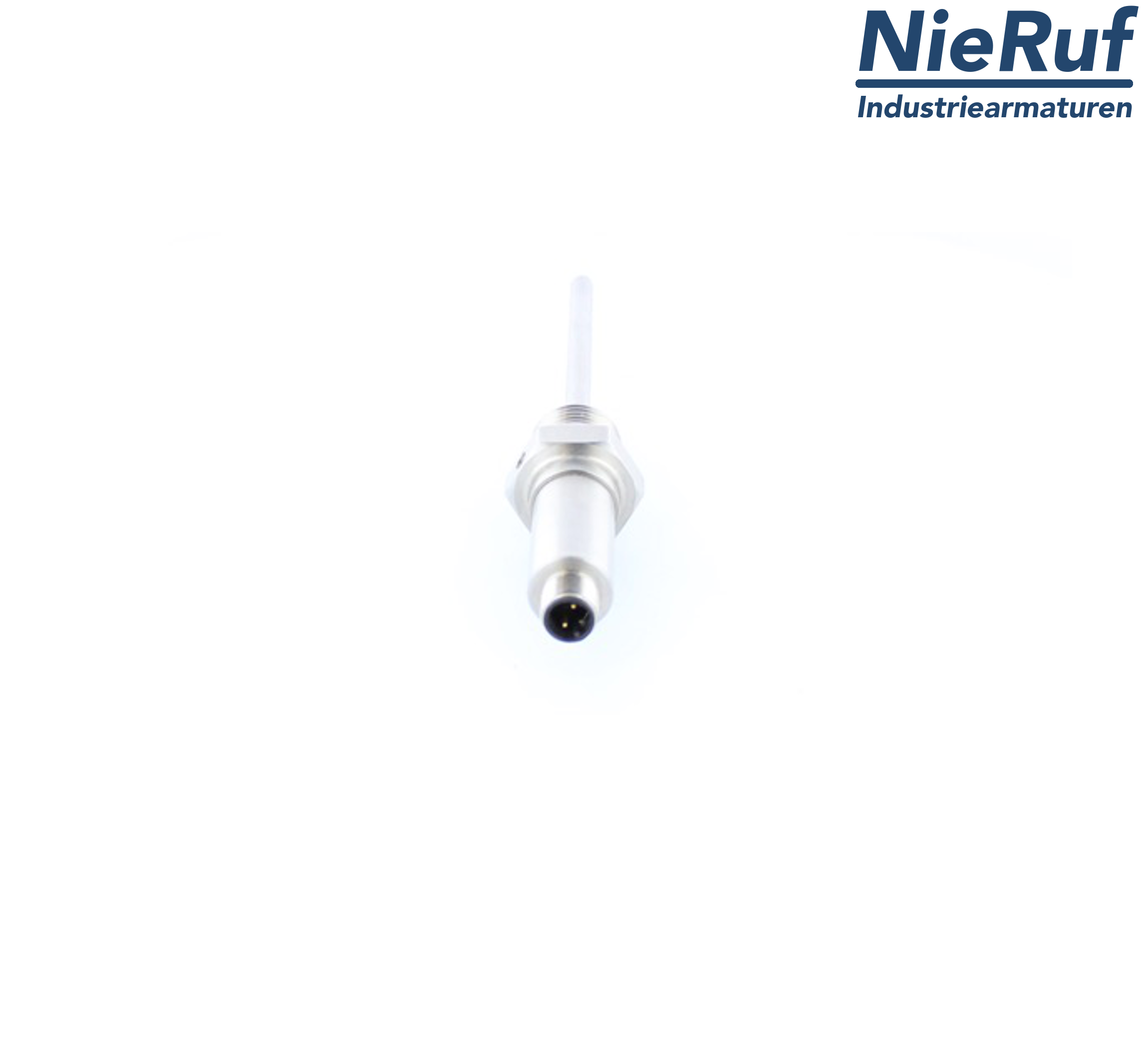

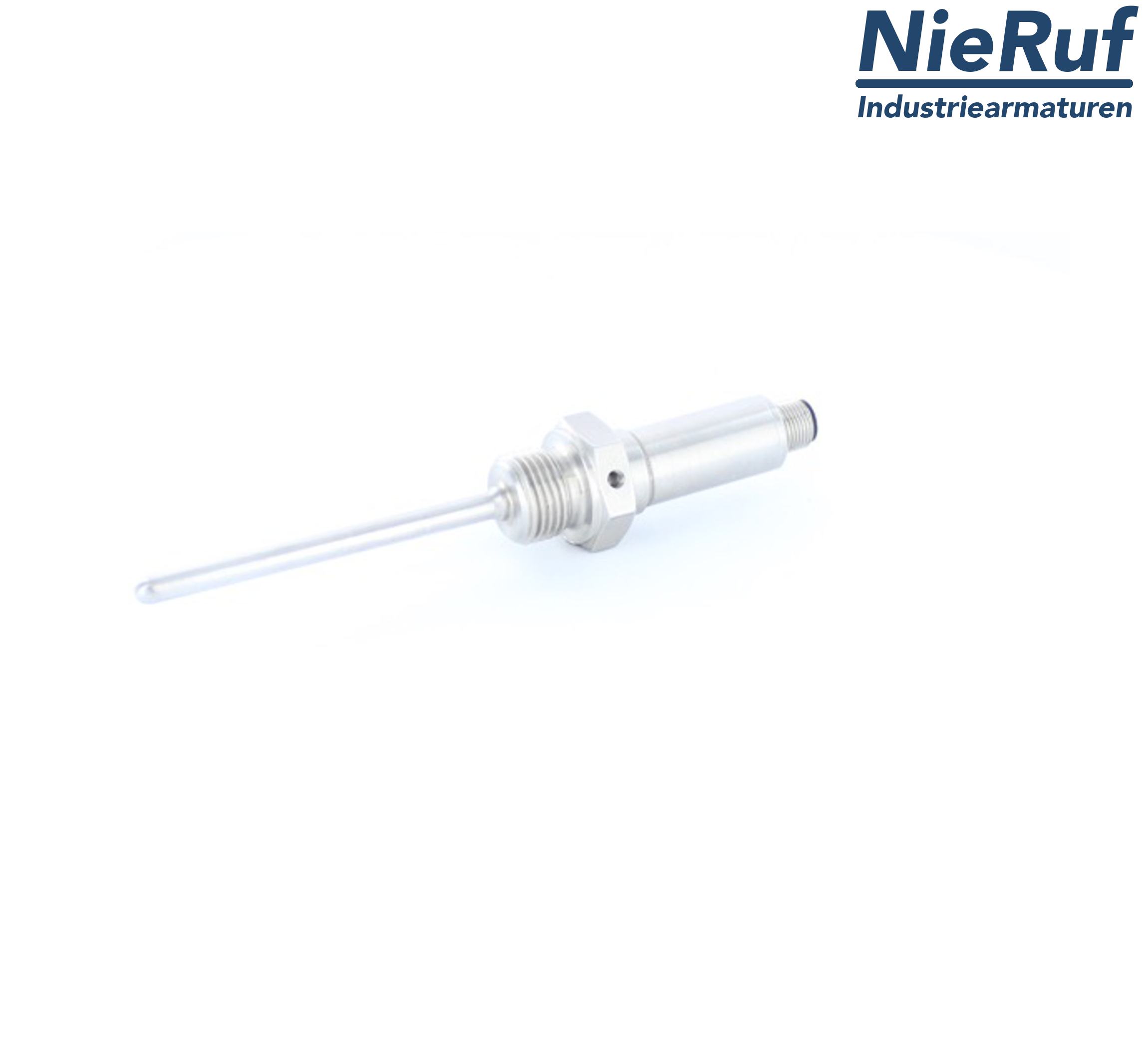

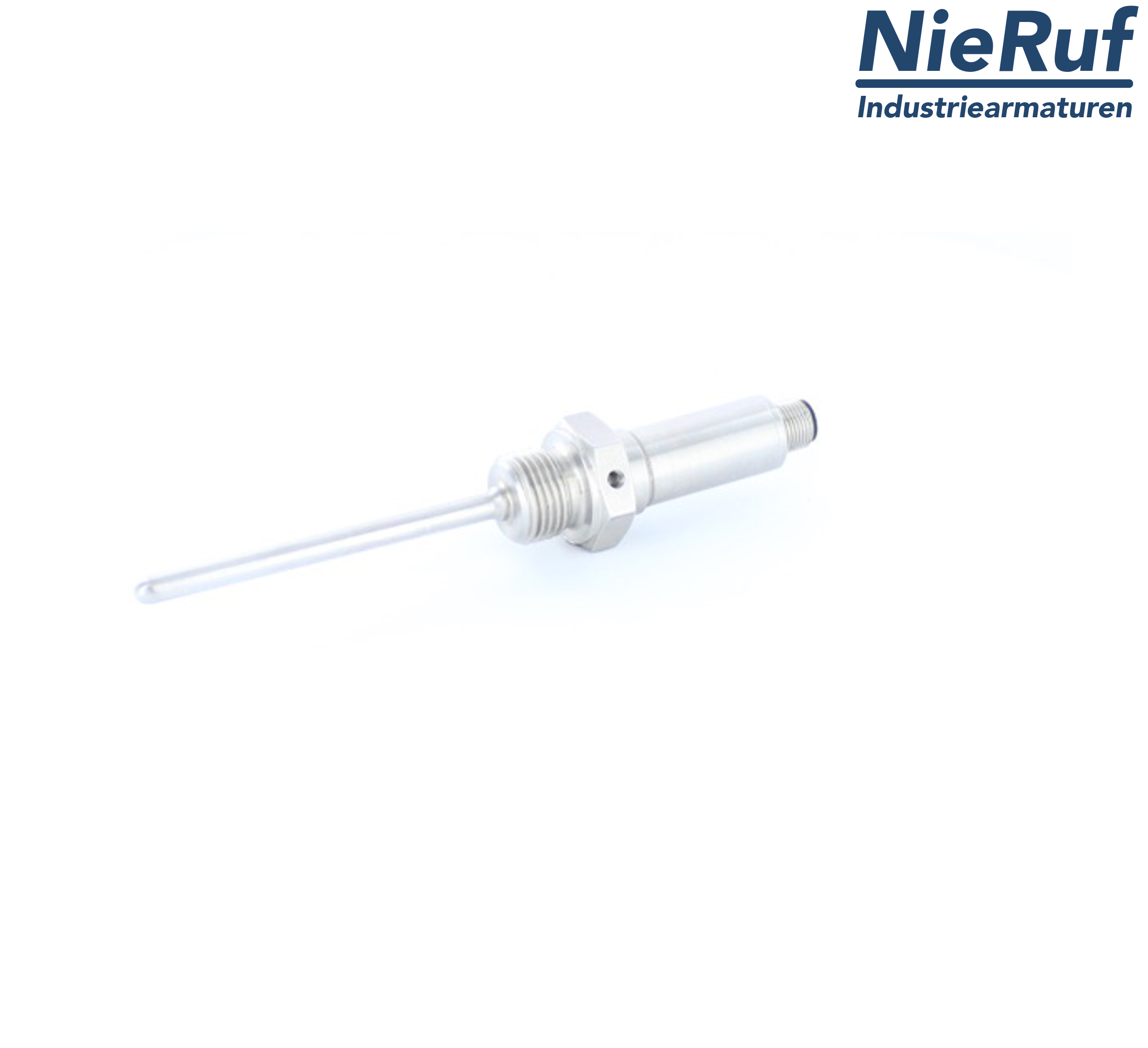

temperature device from -40°C - +60°C type TM01 G 1/2" B male thread stainless steel sensor length 150 mm tube diameter 10 mm output 2-wire: 4-20mA
| product: | temperature gauge |
|---|---|
| type: | TM01 |
| manufacturer: | NieRuf |
| diameter: | G 1/2" B |
| connection: | male thread |
| material: | stainless steel |
| sensor: | Pt100 class A - IEC 60751 |
| media: | liquid and gaseous media |
| temperature: | -50°C - +150°C |
| temperature ambiente: | -40°C up to +85°C |
| long-term drift: | ≤±0,1K / 0,5% FS / year not cumulative |
| EMV compatibility: | class B means / industrial sector (EN/IEC 61326) |
| supply voltage: | 10 – 35V DC reverse voltage protected |
| sensor tube: | 150 mm |
| tube diameter: | 10 mm |
| range of measurement: | -40°C - +60°C |
| accuracy: | 0,1K / 0,08% |
| output: | 2-wire: 4-20mA |
| plug: | M12 IP67 (inclusive) |
| product feature: | High-quality temperature gauge made of stainless steel to controll process temperatures. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
temperature gauge -40°C - +60°C G 1/2" B Sensor 150 mm 2-wire: 4-20mA 10 mm
Article no.
: TM01012003.10
product:
temperature gauge
type:
TM01
manufacturer:
NieRuf
diameter:
G 1/2" B
connection:
male thread
material:
stainless steel
sensor:
Pt100 class A - IEC 60751
media:
liquid and gaseous media
temperature:
-50°C - +150°C
temperature ambiente:
-40°C up to +85°C
long-term drift:
≤±0,1K / 0,5% FS / year not cumulative
EMV compatibility:
class B means / industrial sector (EN/IEC 61326)
supply voltage:
10 – 35V DC reverse voltage protected
sensor tube:
150 mm
tube diameter:
10 mm
range of measurement:
-40°C - +60°C
accuracy:
0,1K / 0,08%
output:
2-wire: 4-20mA
plug:
M12 IP67 (inclusive)
product feature:
High-quality temperature gauge made of stainless steel to controll process temperatures.
