GK04000004

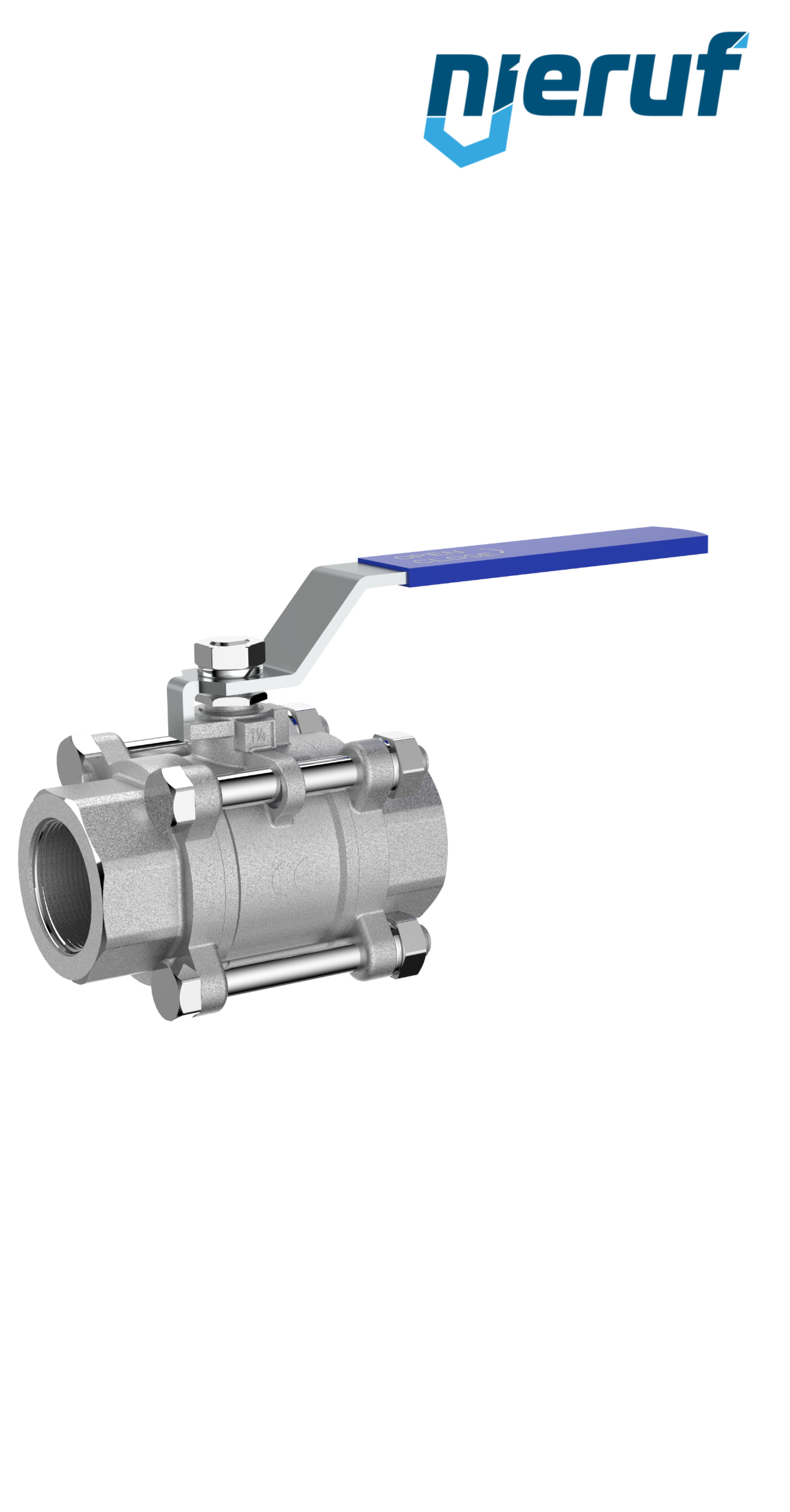

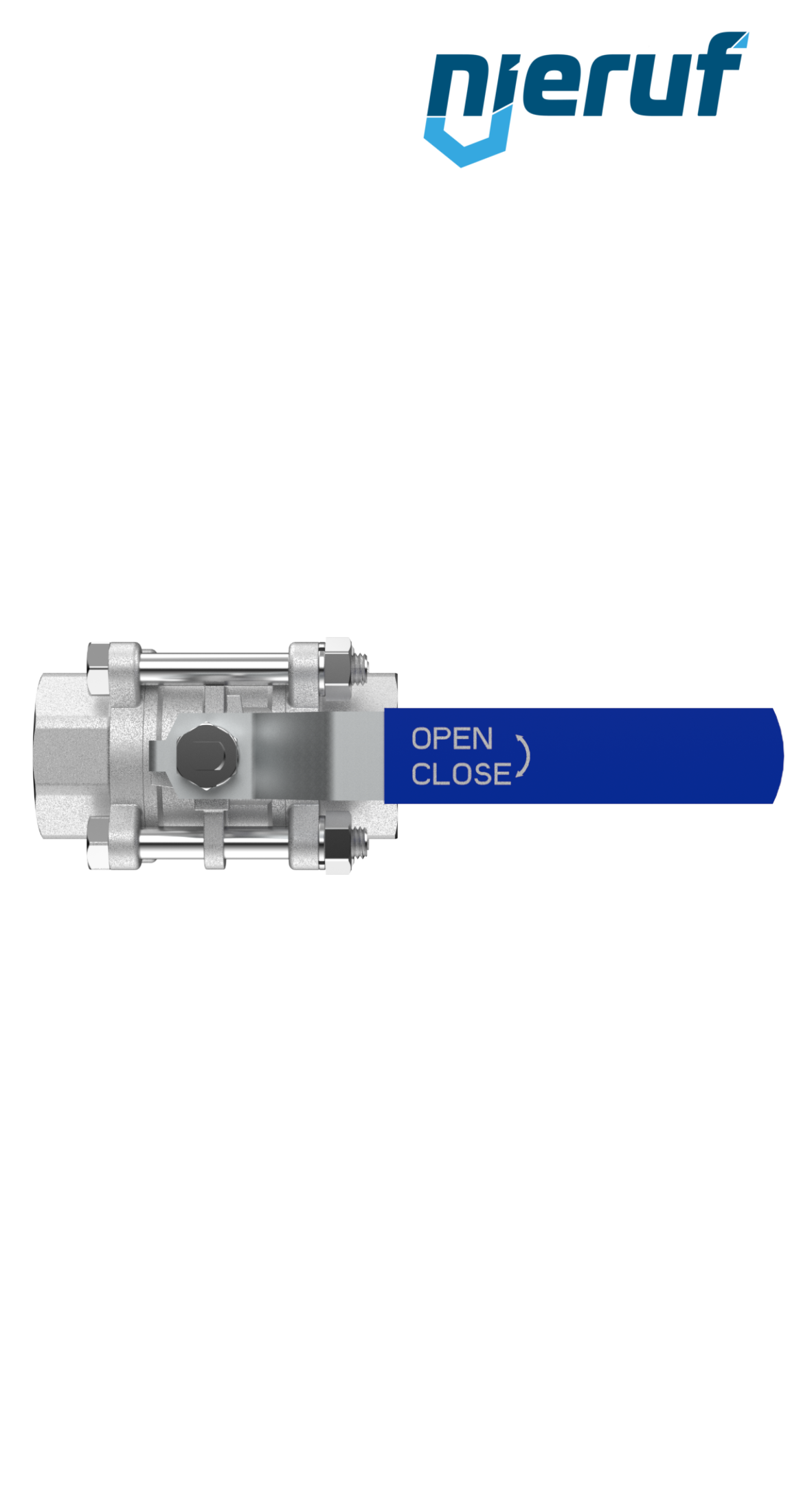

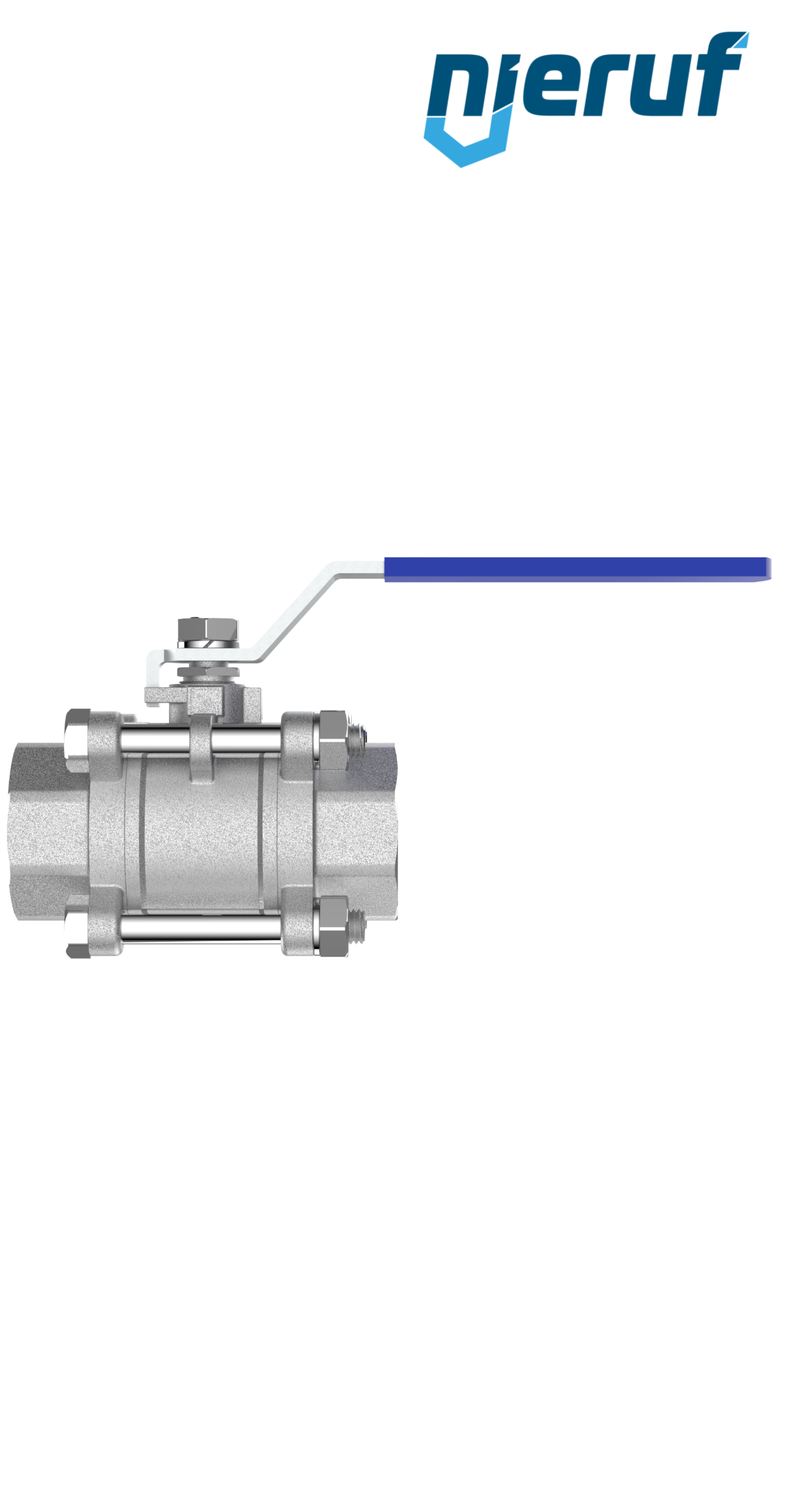

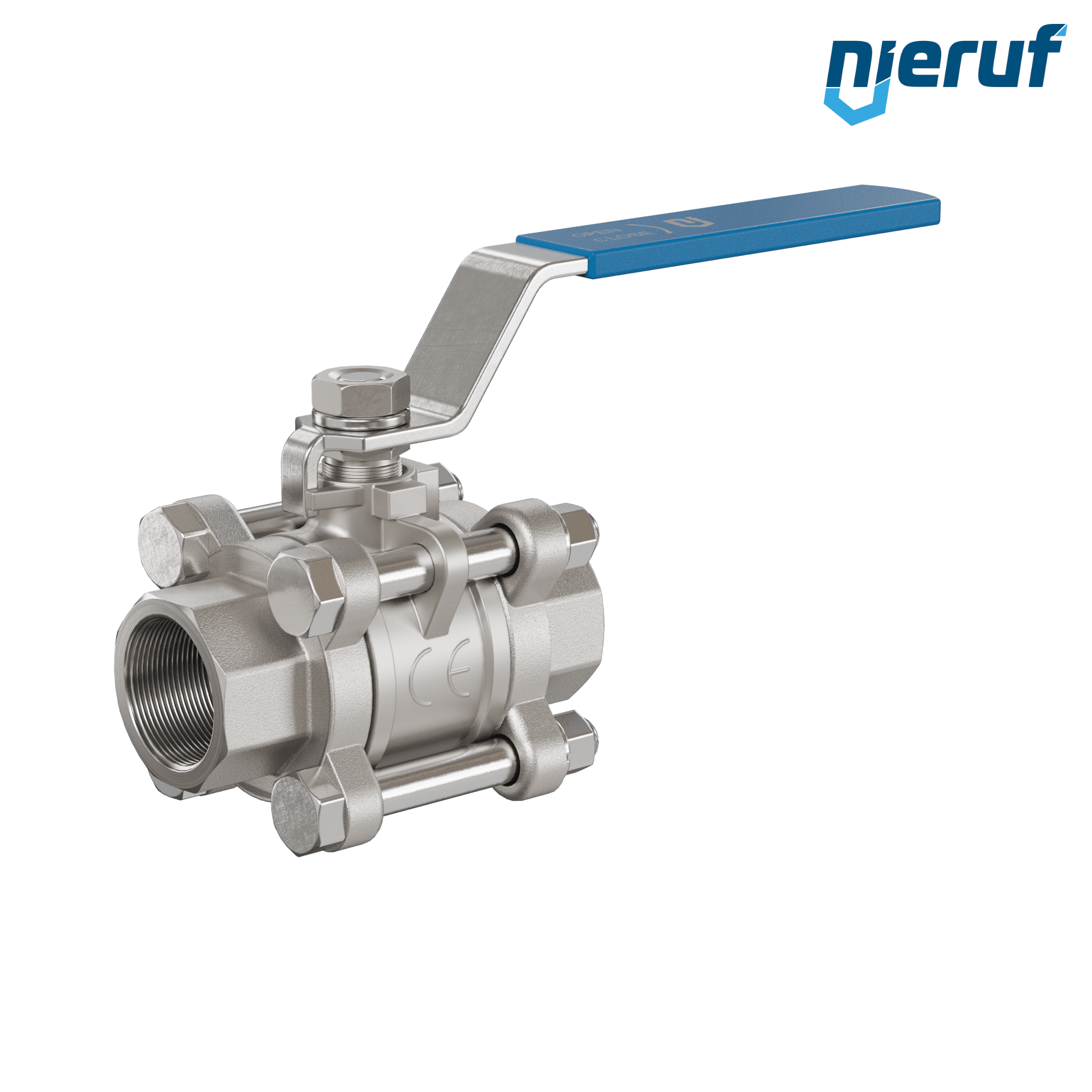

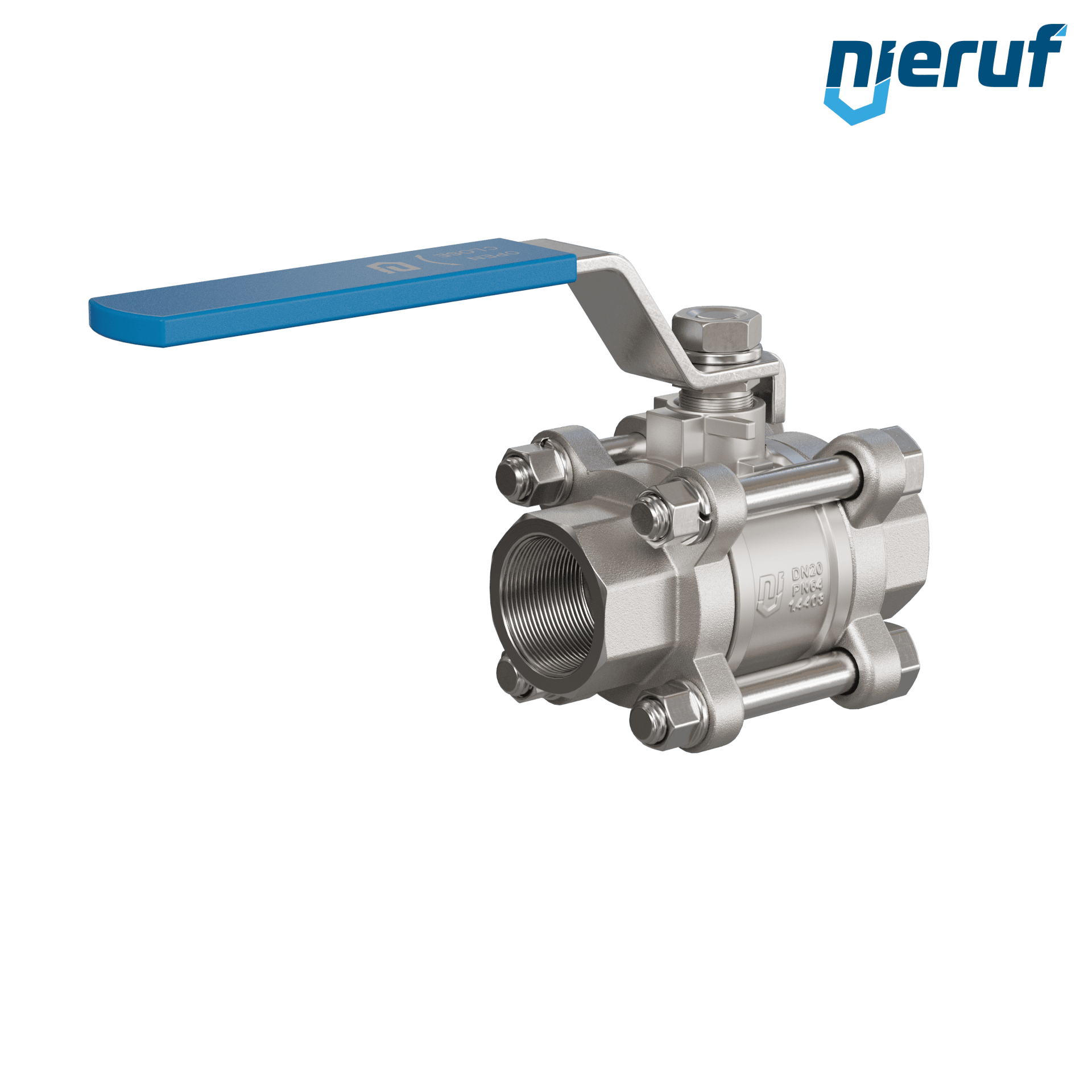

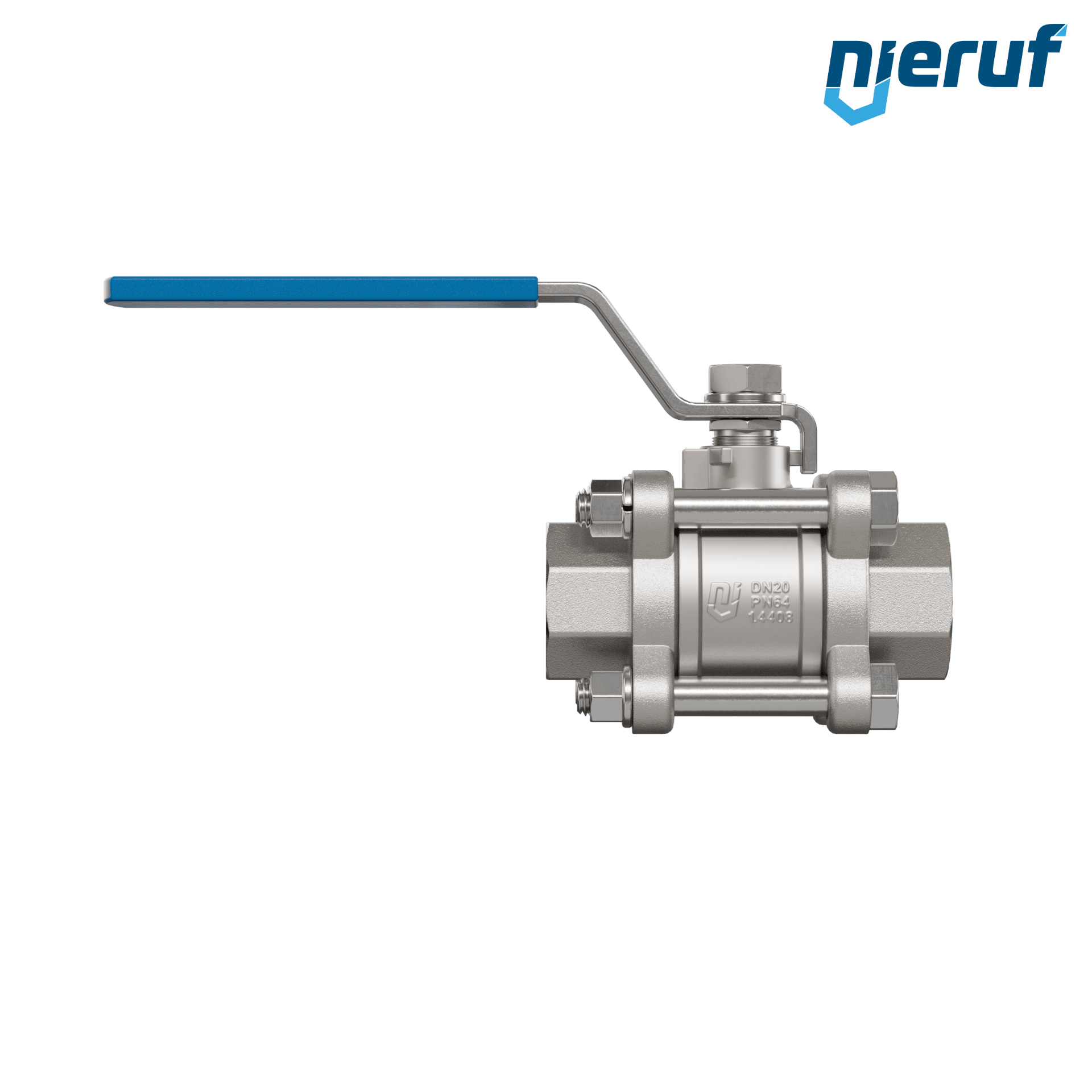

ball valve made of stainless steel DN20 - 3/4" inch GK04 female thread
Delivery time: in stock
Express delivery*:
Shipping on: Thursday, 31. October
Guaranteed delivery until Friday, 01. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
ball valve made of stainless steel DN20 - 3/4" inch full port design seal made of PTFE for liquid and gaseous media
| product: | ball valve made of stainless steel |
|---|---|
| type: | GK04 |
| manufacturer: | NieRuf |
| diameter: | DN20 - 3/4" inch |
| connection: | female thread |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN64 |
| design: | full port design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4401 |
| length: | 80mm |
| actuator: | hand lever made of stainless steel 1.4301 with plastic cover |
| installation position: | any position |
| product description: | This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 0 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of stainless steel DN20 - 3/4" inch GK04 female thread
Article no.
: GK04000004
product:
ball valve made of stainless steel
type:
GK04
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN64
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
length:
80mm
actuator:
hand lever made of stainless steel 1.4301 with plastic cover
installation position:
any position
product description:
This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 0
