FK03000011
Compact ball valve DN100 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4408
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

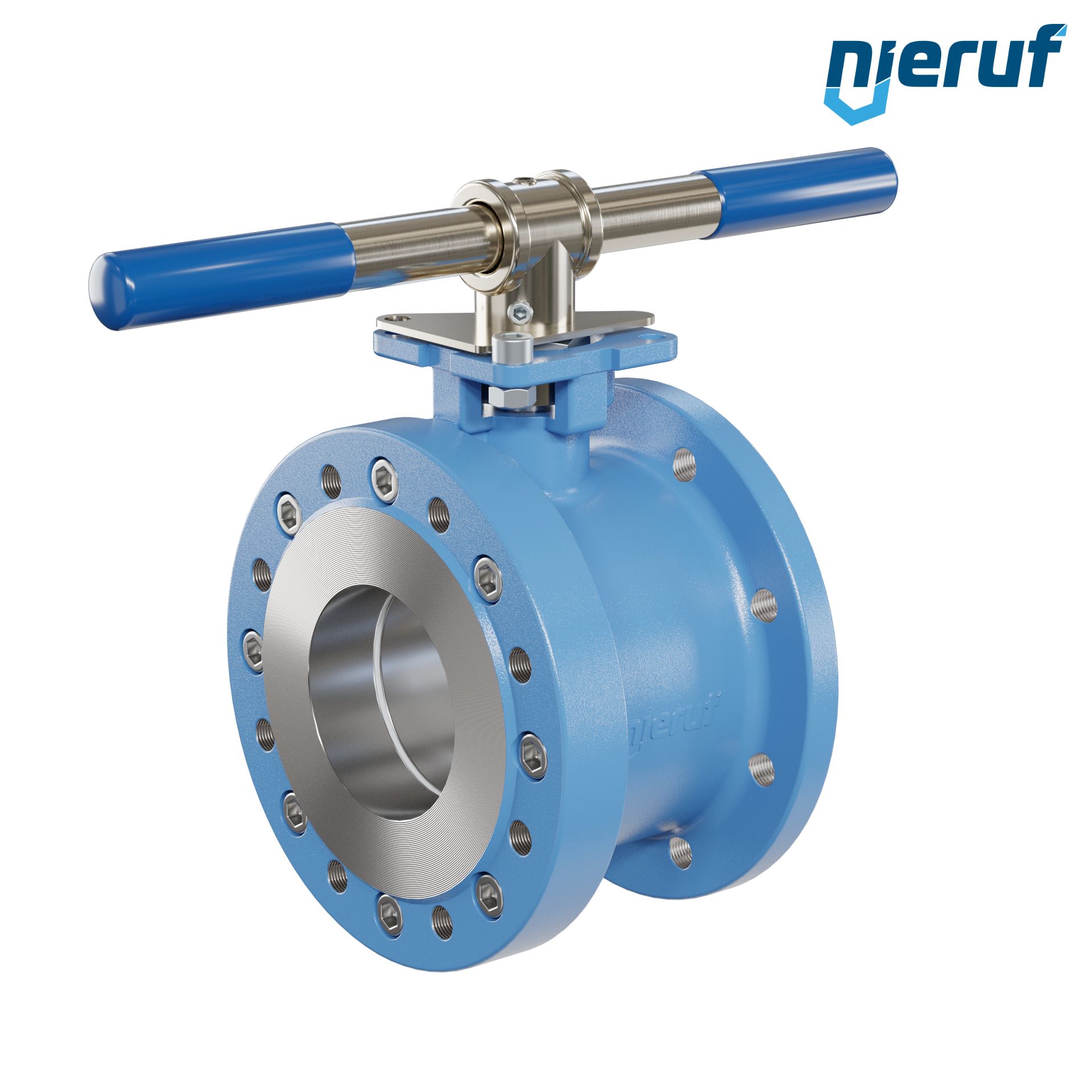

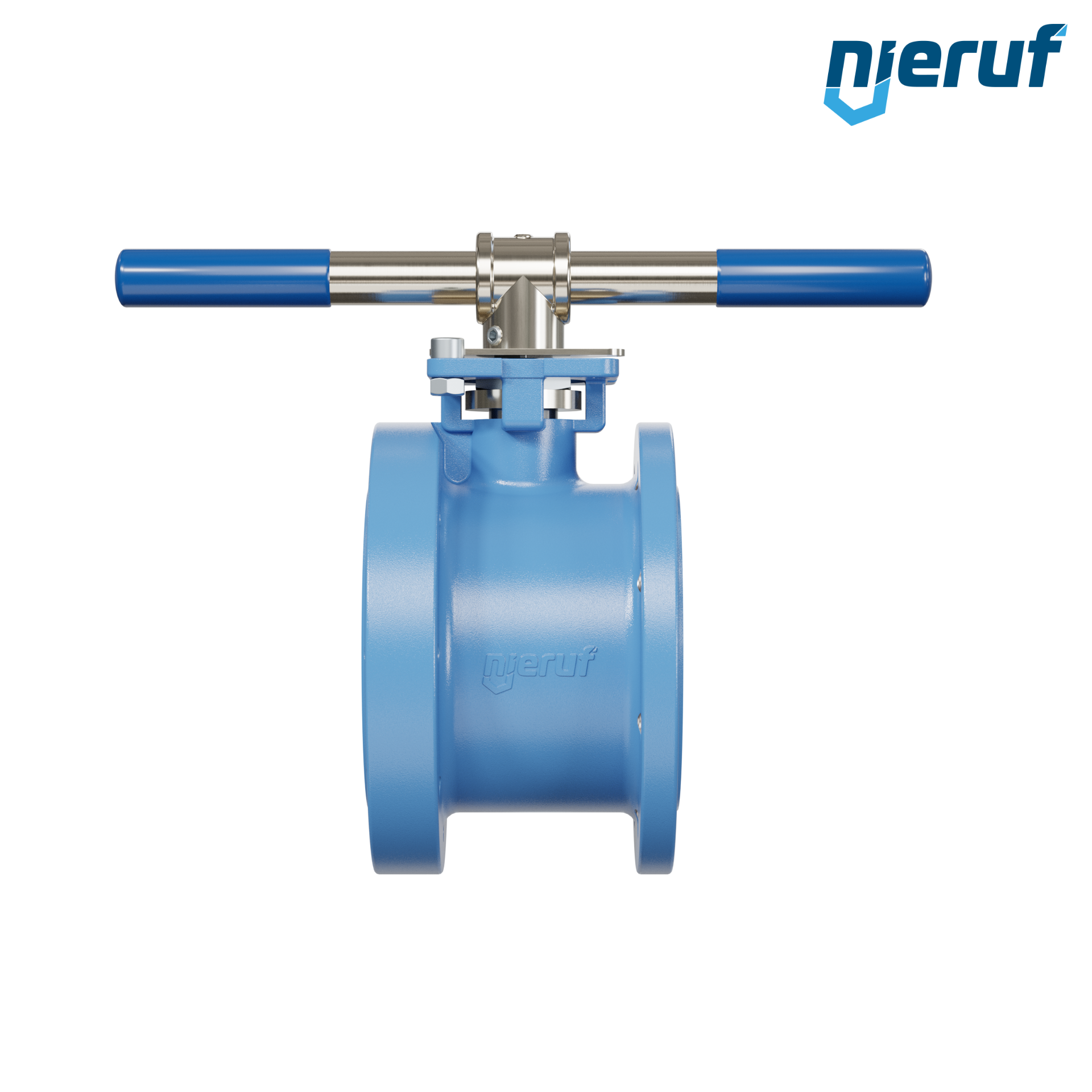

Compact ball valve DN100 PN16 FK03 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE / TFM for liquid and gaseous media
| product: | Compact ball valve |
|---|---|
| type: | FK03 |
| manufacturer: | NieRuf |
| diameter: | DN100 |
| connection: | flange dimensions acc. DIN EN 1092-1 |
| Seal steam: | O-ring Viton |
| ball seal: | PTFE / TFM |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN16 |
| design: | full port design |
| body material: | carbon steel 1.0619 |
| ball material: | stainless steel 1.4308 |
| length: | 150mm |
| actuator: | hand lever made of stainless steel 1.4301 with blue plastic cover |
| installation position: | any position |
| authorized for: | TA Luft |
| product description: | This high quality ball valve is made of steel with blow out proof stem design and direct mounting of actuators is possible. Two-piece body valve with flange dimensions acc. to EN 1092-1 (DIN 2501-1) |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compact ball valve DN100 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4408
Article no.
: FK03000011
product:
Compact ball valve
type:
FK03
manufacturer:
NieRuf
diameter:
DN100
connection:
flange dimensions acc. DIN EN 1092-1
Seal steam:
O-ring Viton
ball seal:
PTFE / TFM
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308
length:
150mm
actuator:
hand lever made of stainless steel 1.4301 with blue plastic cover
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of steel with blow out proof stem design and direct mounting of actuators is possible. Two-piece body valve with flange dimensions acc. to EN 1092-1 (DIN 2501-1)
€5.36 VAT included.
€40.70 VAT included.
€16.18 VAT included.
