FK04000005

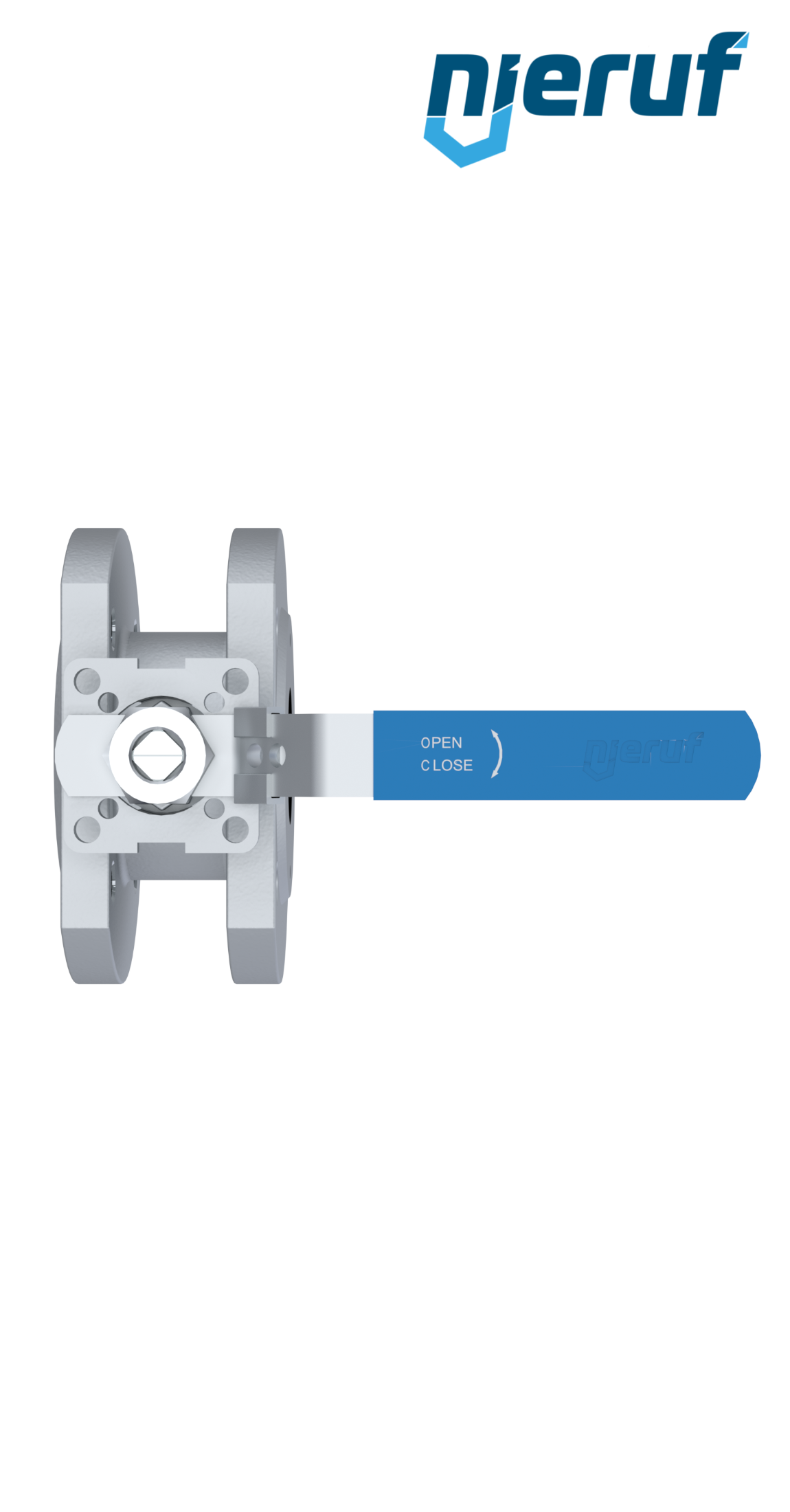

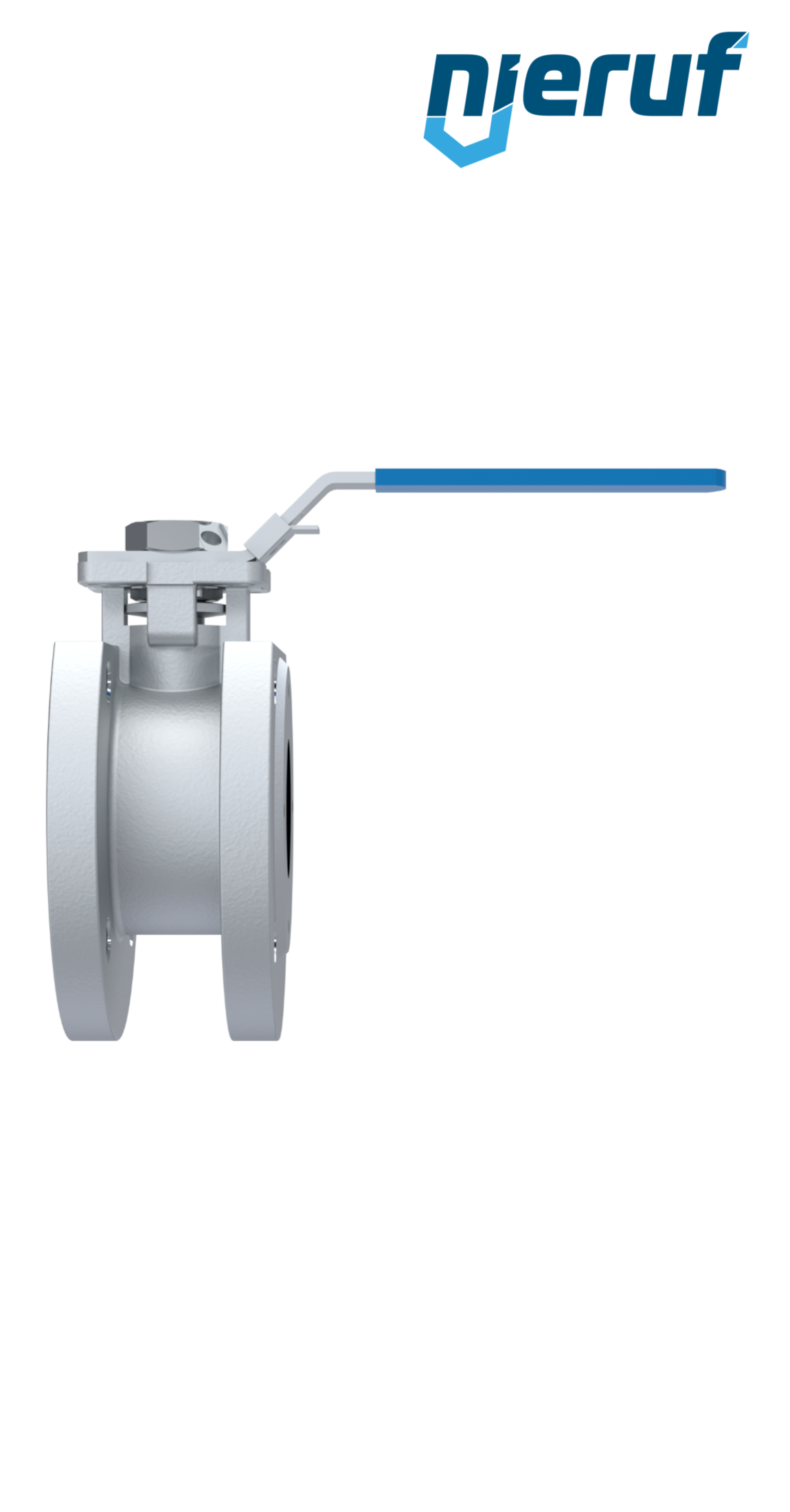

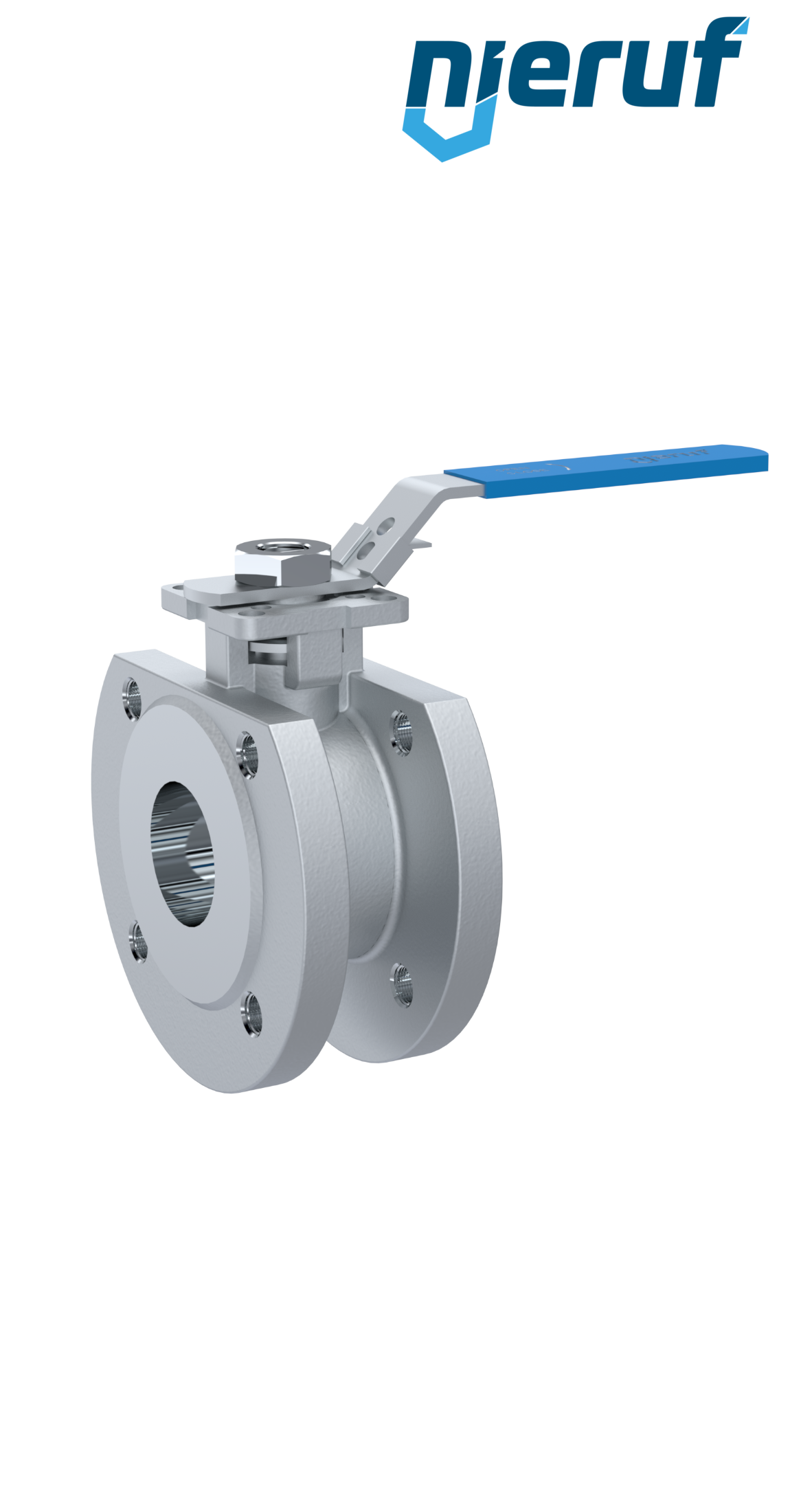

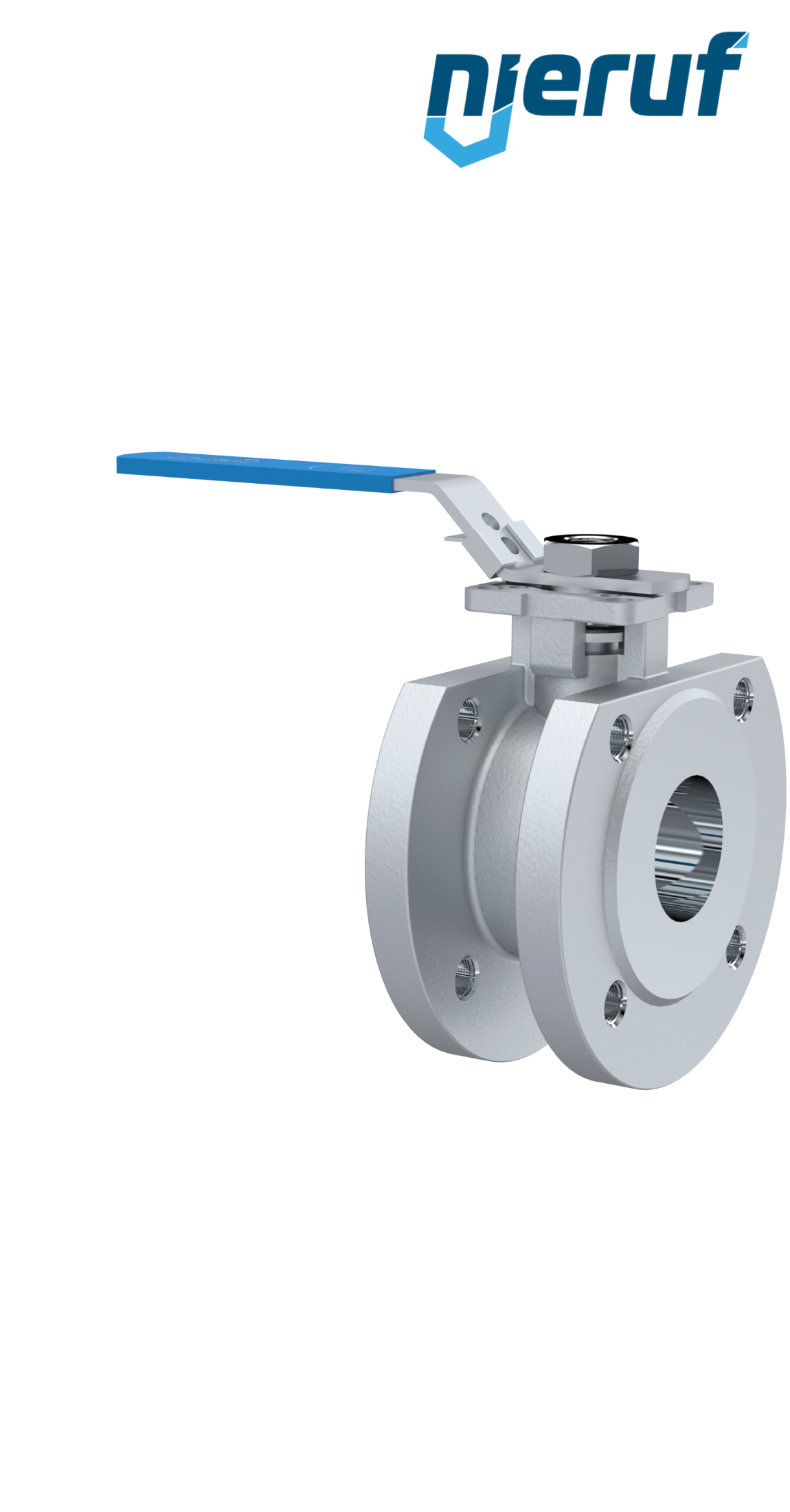

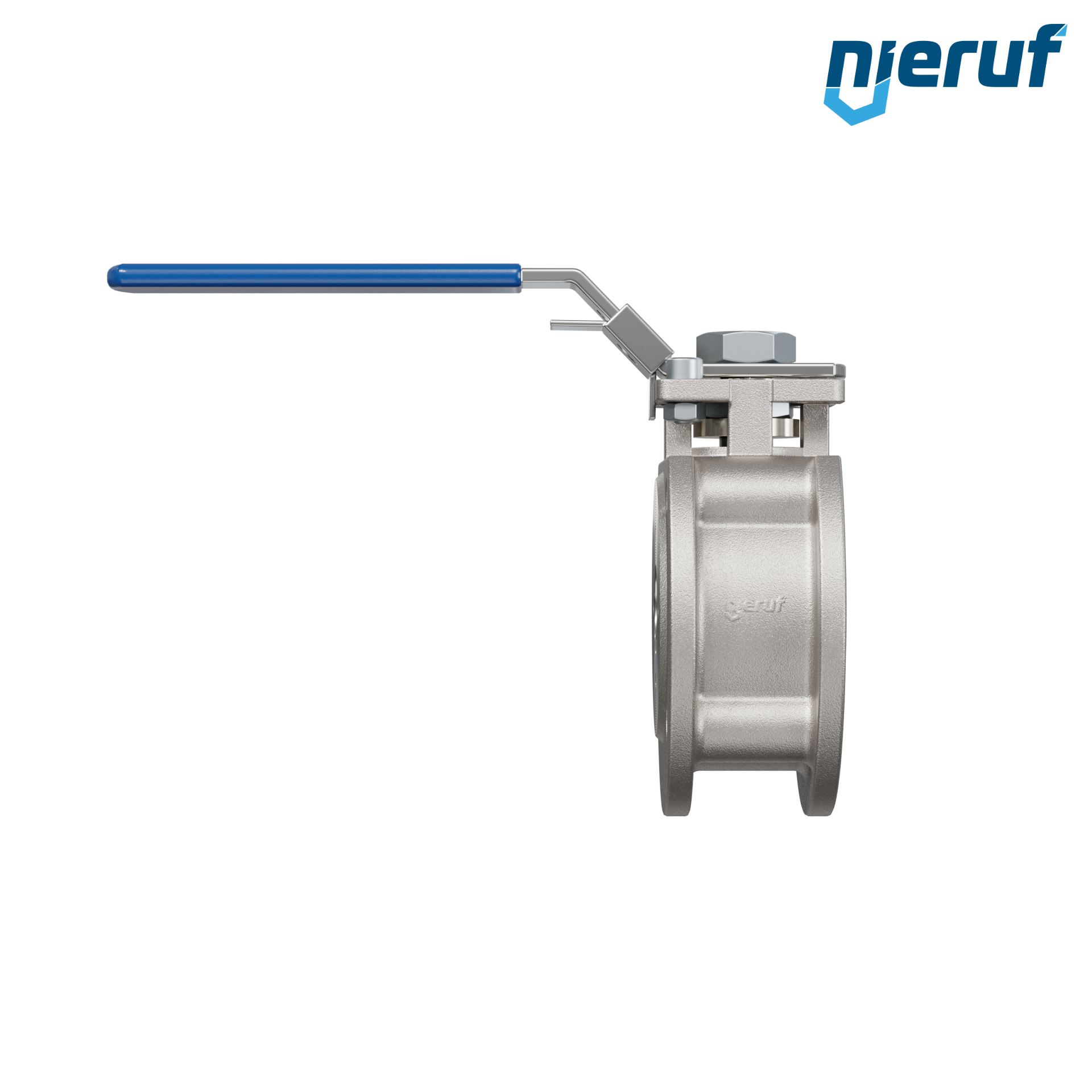

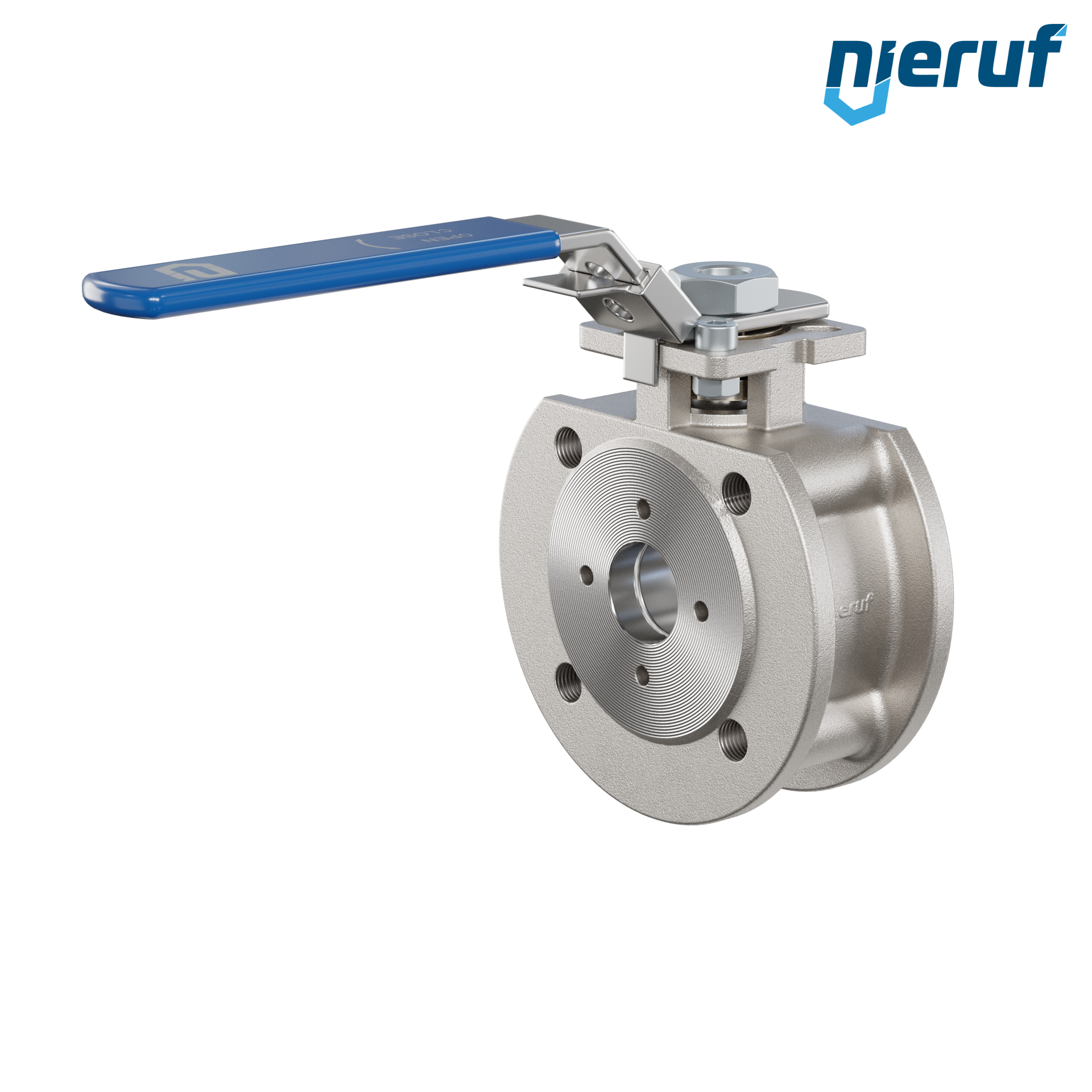

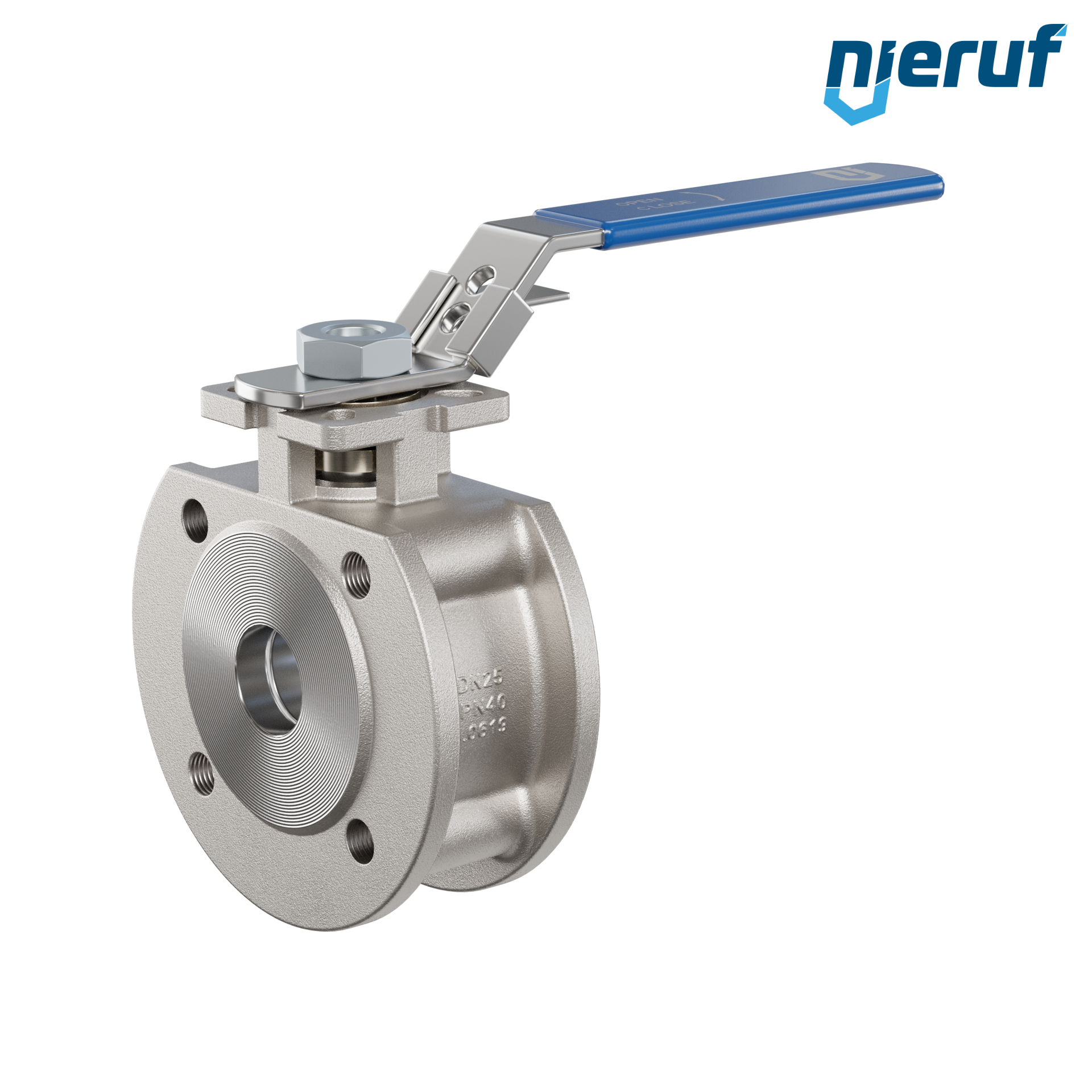

Compact ball valve DN25 PN16 FK04 stainless steel 1.4408
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€32.49 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Compact ball valve DN25 PN16 FK04 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / TFM for liquid and gaseous media
| product: | Compact ball valve |
|---|---|
| type: | FK04 |
| manufacturer: | NieRuf |
| diameter: | DN25 |
| connection: | flange dimensions acc. DIN EN 1092-1 |
| Seal steam: | O-ring Viton |
| ball seal: | PTFE / TFM |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN16 |
| design: | full port design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4308 |
| length: | 50mm |
| actuator: | hand lever made of steel (zinc-plated) with blue plastic cover |
| installation position: | any position |
| authorized for: | TA Luft |
| product description: | This high quality ball valve is made of stainless steel with blow out proof stem design and direct mounting of actuators is possible. Two-piece body valve with flange dimensions acc. to EN 1092-1 (DIN 2501-1). plate spring forced packing additional O-Ring |
