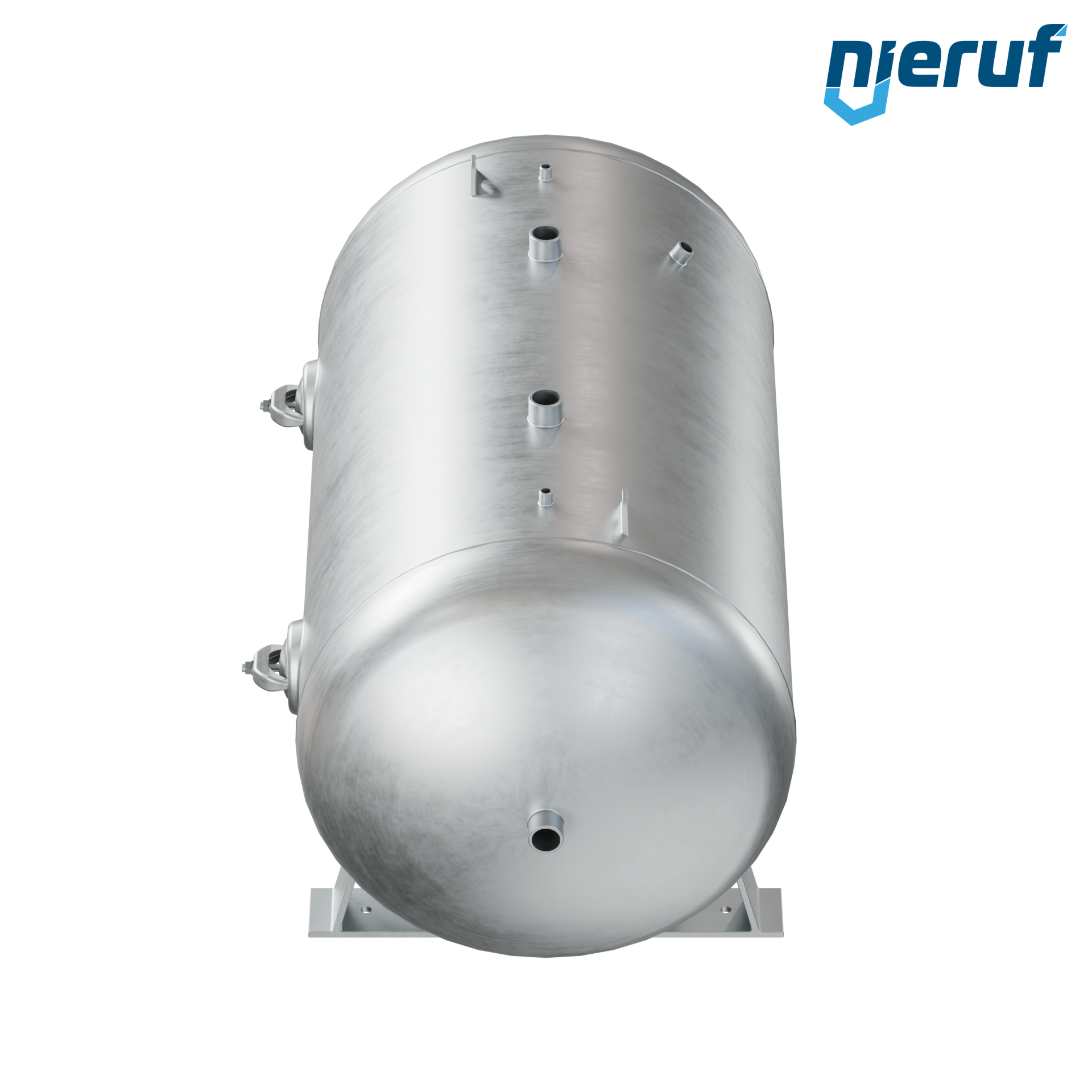

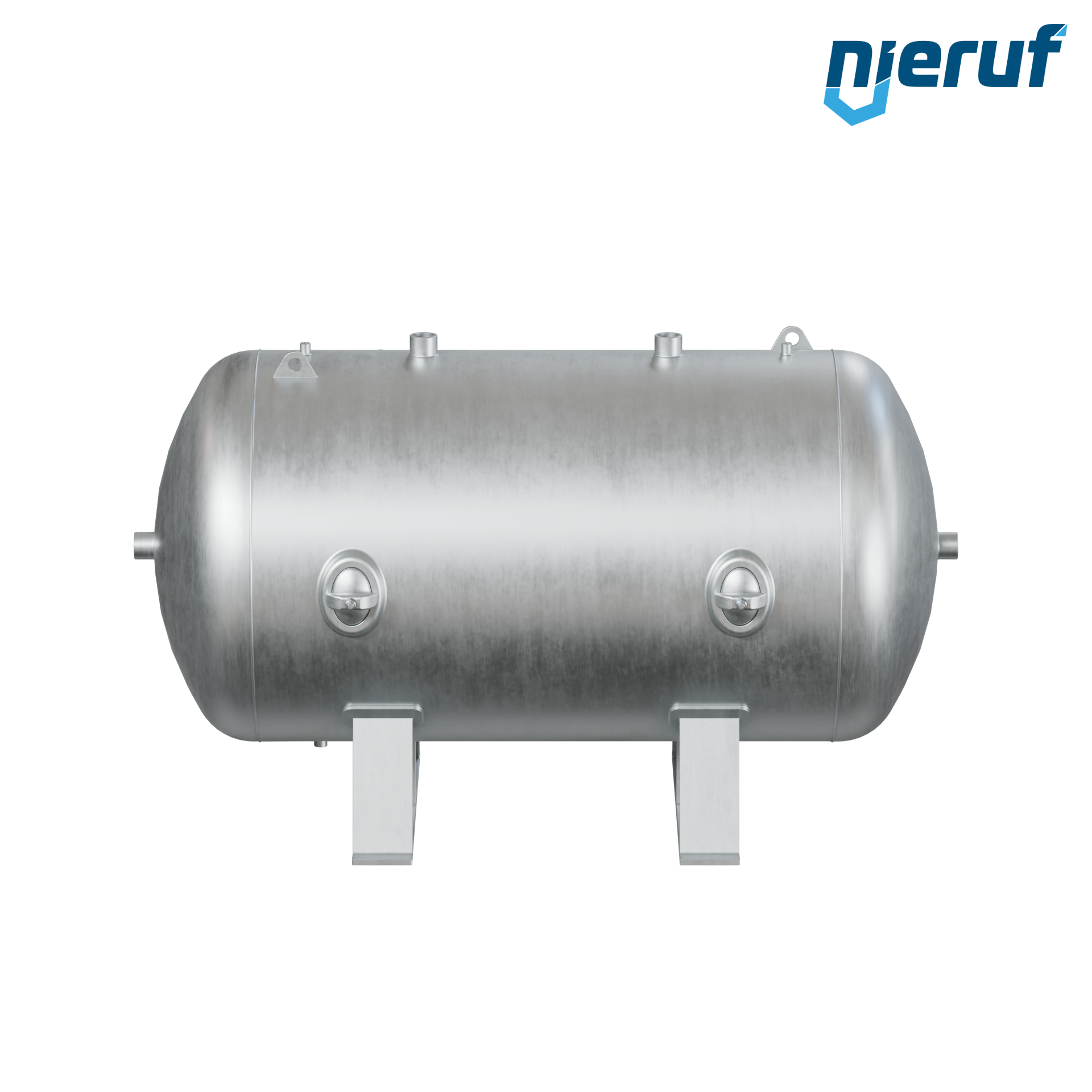

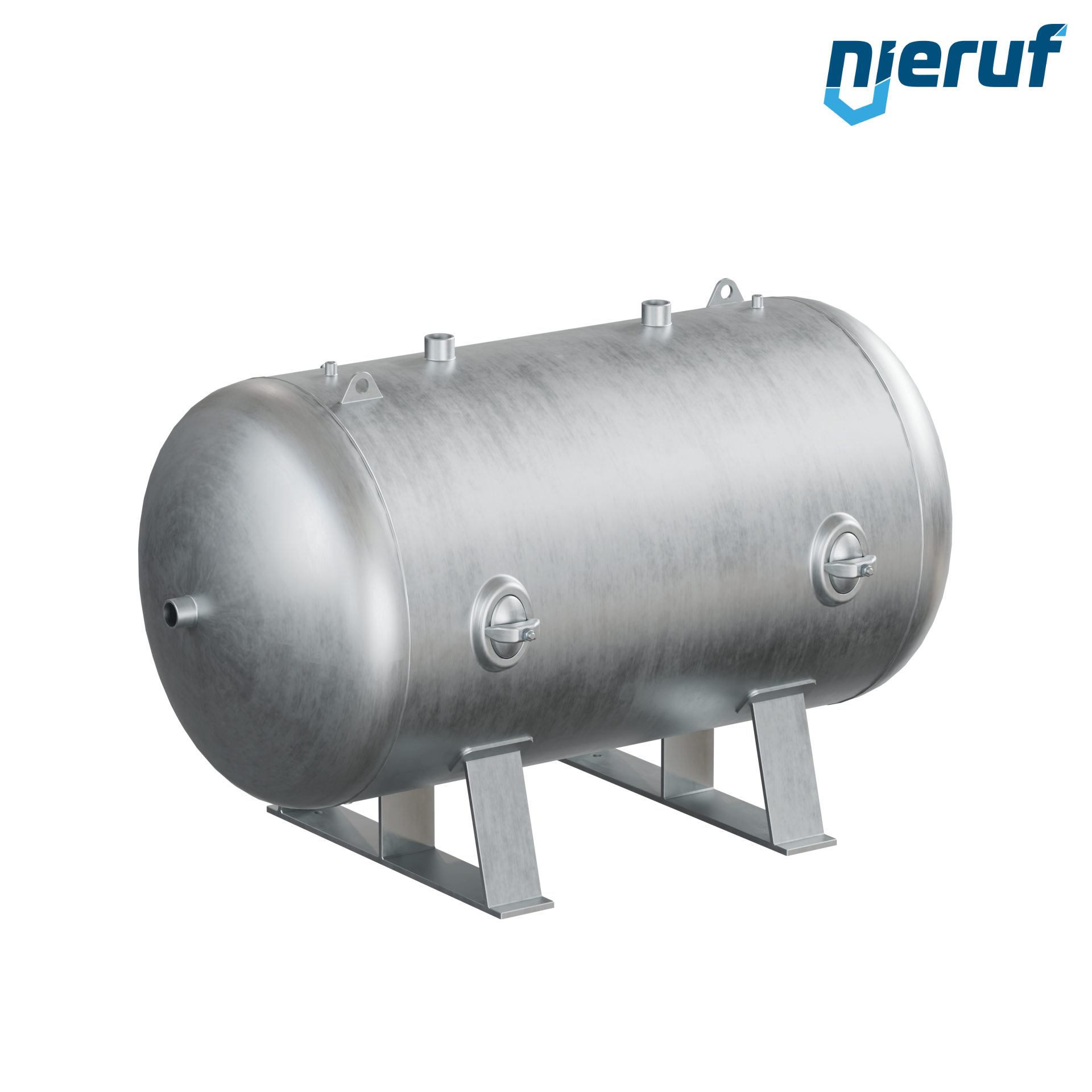

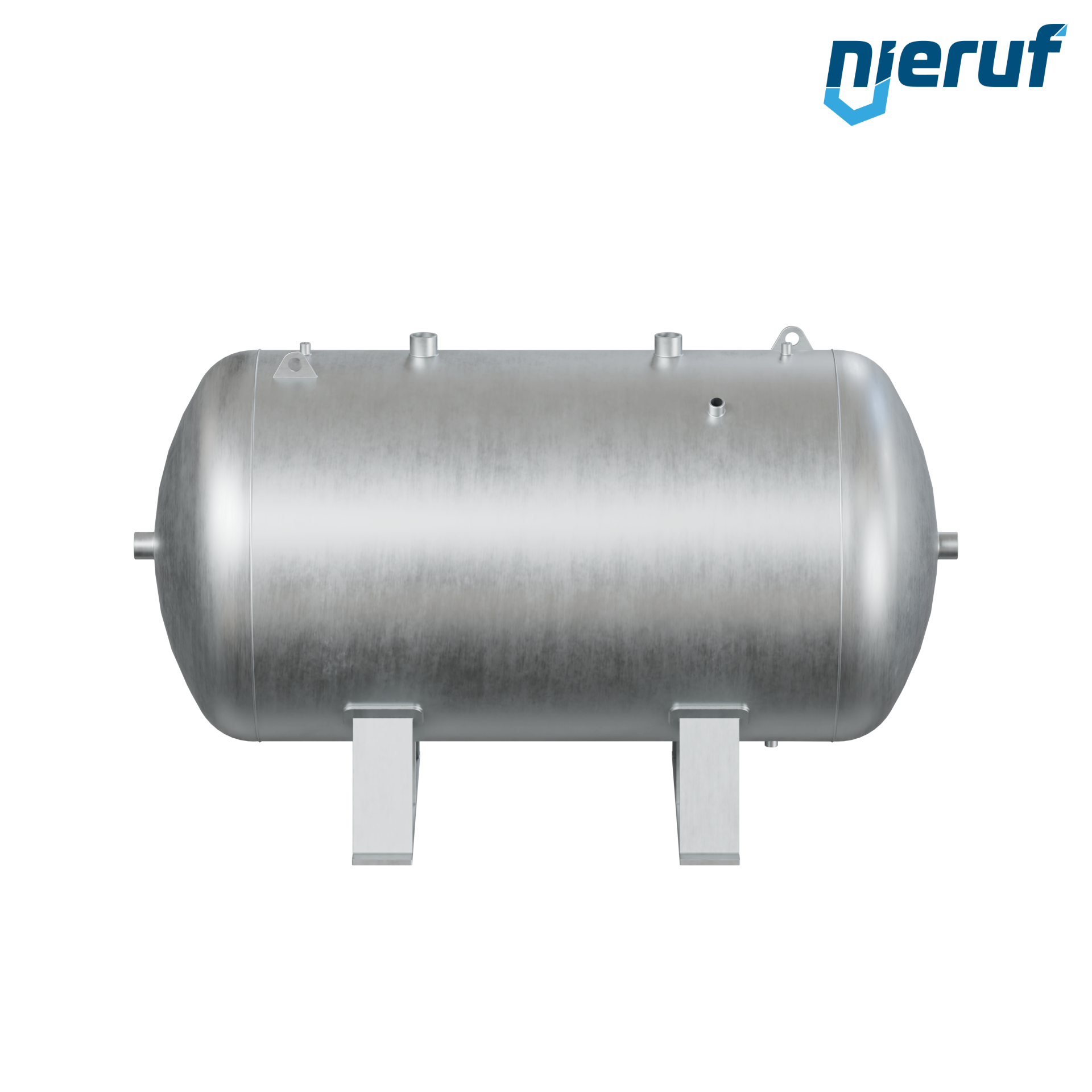

Pressure vessel BE01 with 1500 liter volume horizontal with operating pressure 0-11 bar made of steel primed (inside raw) and nominal size 1000 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 1500 liter |
| nominal size | 1000 mm |
| height | 1200 mm |
| length | 2000 mm |
| operating pressure | 0-11 bar |
| version | horizontal |
| temperature | -20°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 1500 liter, 0-11 bar, steel primed
Article no.
: BE01010109
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
1500 liter
nominal size:
1000 mm
height:
1200 mm
length:
2000 mm
operating pressure:
0-11 bar
version:
horizontal
temperature:
-20°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 16,0 bar without filling, dry
