BE01001011

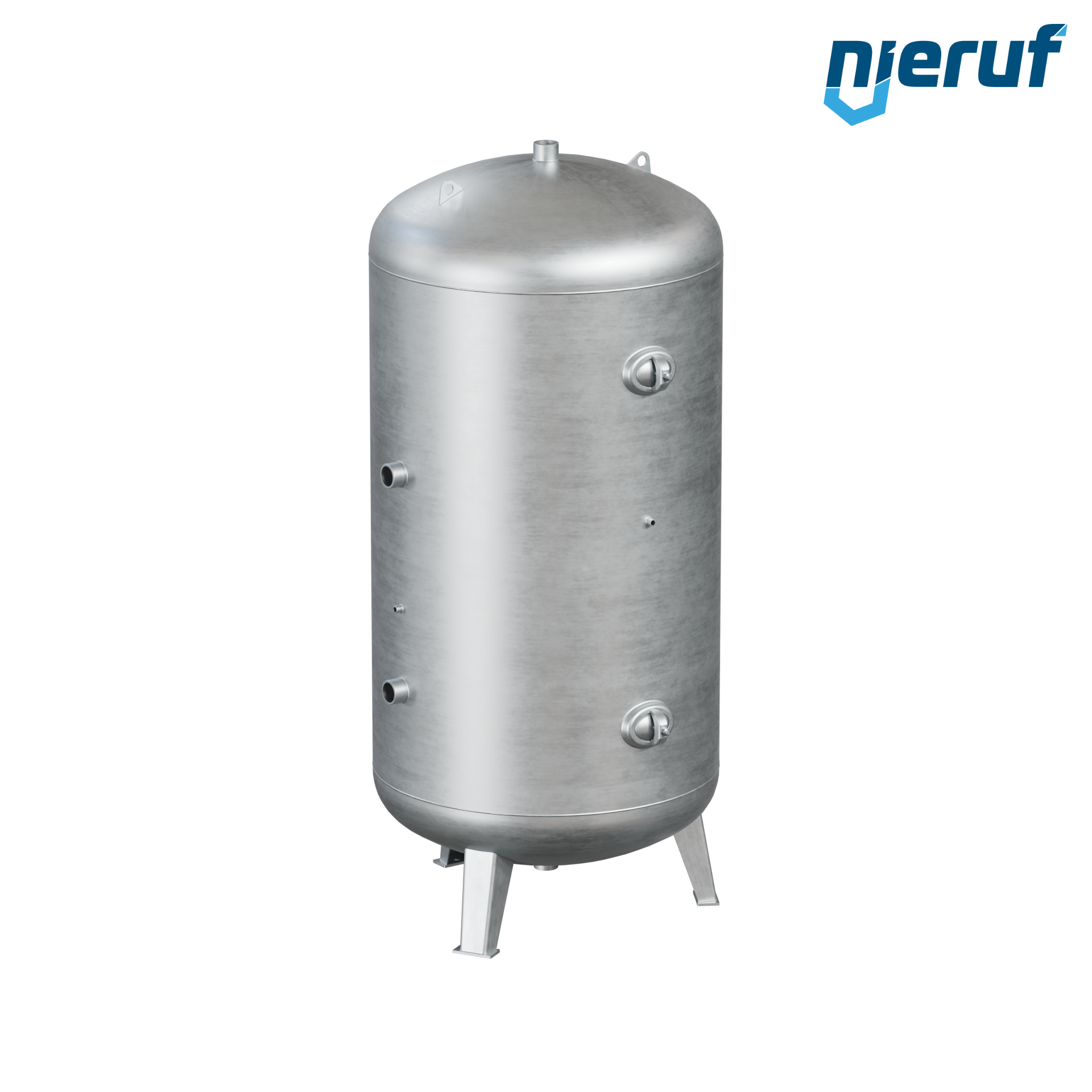

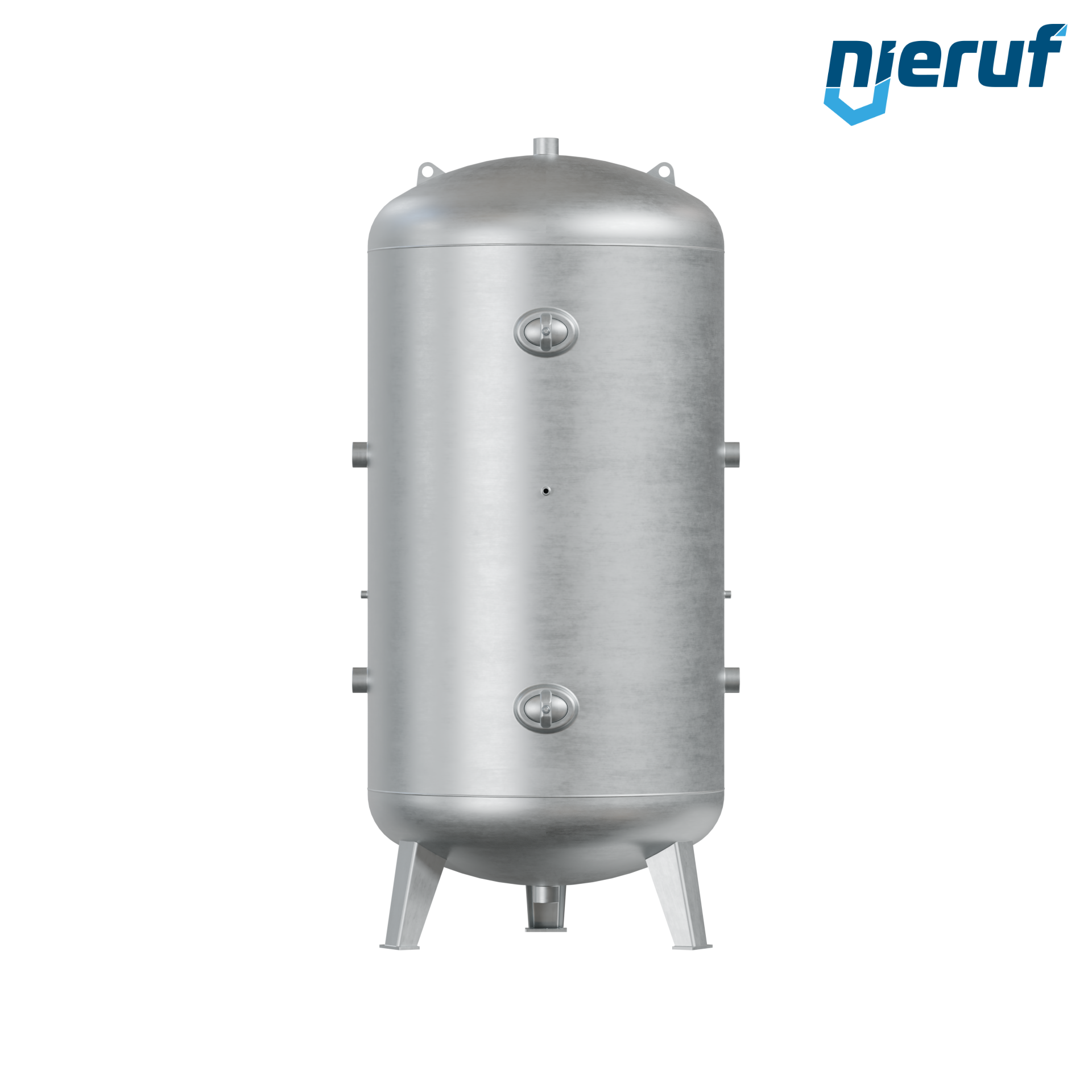

Pressure vessel vertical BE01 3000 liter, 0-16 bar, steel galvanized
Delivery time: 3 - 5 working days
Equipment
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€47.72 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Pressure vessel BE01 with 3000 liter volume vertical with operating pressure 0-16 bar made of steel galvanized and nominal size 1250 mm
| product: | Pressure vessel |
|---|---|
| type: | BE01 |
| manufacturer: | NieRuf |
| volume: | 3000 liter |
| nominal size: | 1250 mm |
| height: | 2760 mm |
| operating pressure: | 0-16 bar |
| version: | vertical |
| temperature: | -20°C up to +50°C |
| material: | steel galvanized |
| media: | compressed air, nitrogen & water |
| product feature: | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel vertical BE01 3000 liter, 0-16 bar, steel galvanized
Article no.
: BE01001011
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
3000 liter
nominal size:
1250 mm
height:
2760 mm
operating pressure:
0-16 bar
version:
vertical
temperature:
-20°C up to +50°C
material:
steel galvanized
media:
compressed air, nitrogen & water
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
€47.72 VAT included.
€0.83 VAT included.
€21.30 VAT included.
€299.88 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
